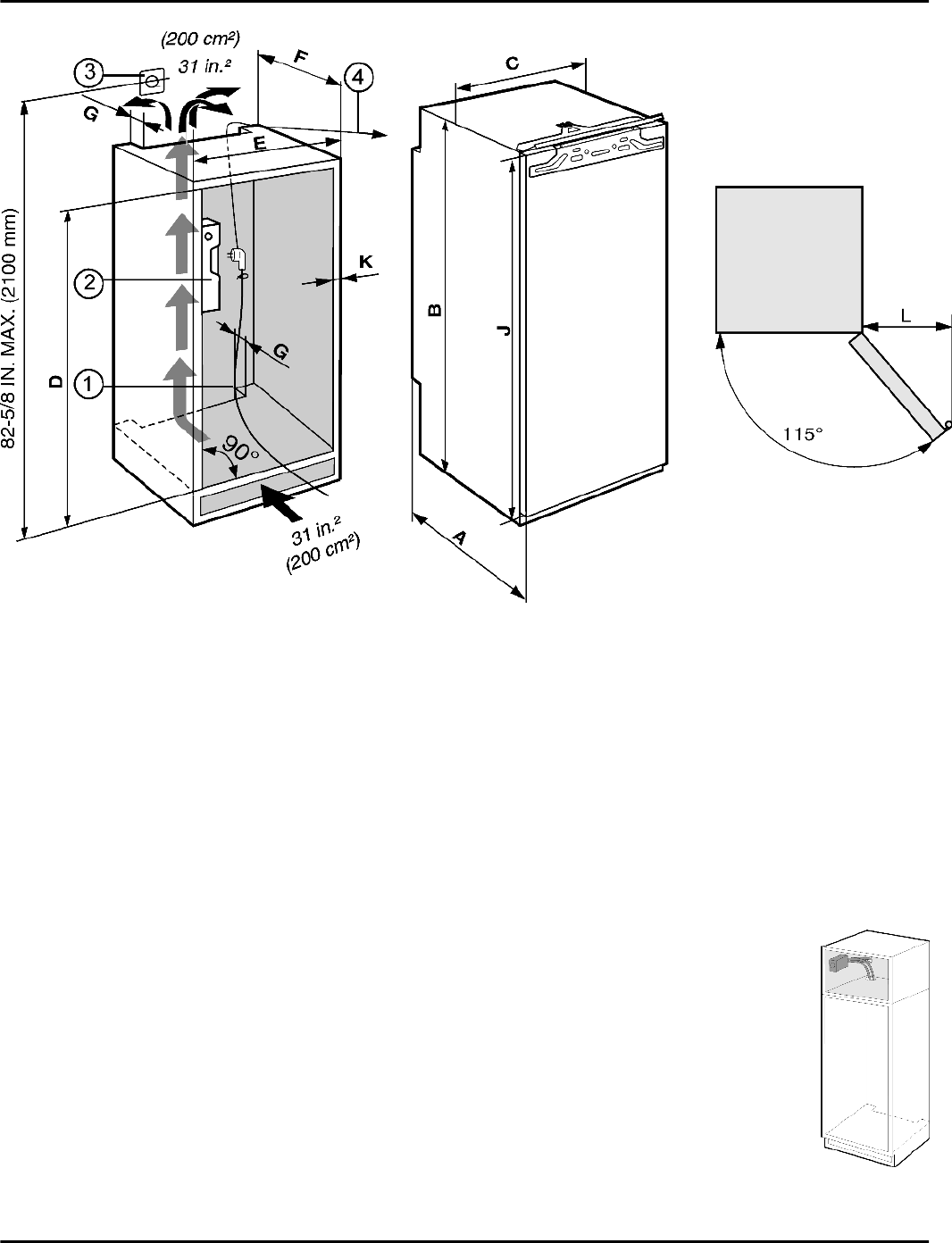

Fig. 7
1 Power cord 3 Electrical socket
2 Spirit level 4 Pull-in cable for power cord
A 21-7/32 in. (539 mm) B 69-21/32 in. (1769.5 mm)
C 21-15/16 in. (557 mm) D 69-3/4 in. - 70-3/8 in. (1772 mm) - (1788 mm)
E 24 in. (609.6 mm) (U.S. dimension) F 21-21/32 in. (550 mm)
23-5/8 in. (600 mm) (European dimension) G 1-1/2 in. (38 mm)
J 66-1/2 in. (1689.9 mm) K max. 3/4 in. (19 mm)
L 9-21/32 in. (245 mm)
u
Build the cabinet with the dimensions shown in
Fig. 7
.
u
Align the cabinet with a spirit level
Fig. 7 (2)
and a try
square. If necessary, level the cabinet up by placing
something underneath.
w
The floor and side walls must be at right angles.
Maintain clearance L to the wall to ensure that the drawers
can be pulled out without obstruction.
u
Maintain the fitting dimensions shown in
Fig. 7
.
4.3 Kitchen cabinet setup for the water
filter*
The water filter module is supplied with the
appliance. It should be installed near the
appliance in the cabinet, for example, in the
adapter cabinet above the appliance. To
connect the filter to the appliance, it may be
necessary to make an opening (C) in the
floor of the adapter cabinet through which
the hoses will be routed. The maximum
length of the water hose is 98-7/16 '' (2.5 m).
The filter cover must be installed during
assembly to leave sufficient space around
the filter module.
Kitchen cabinet setup
6
