Replacing the fan assembly
This procedure describes how to remove and replace the fan.
1. Open the computer cover. See “Opening the cover” on page 88.

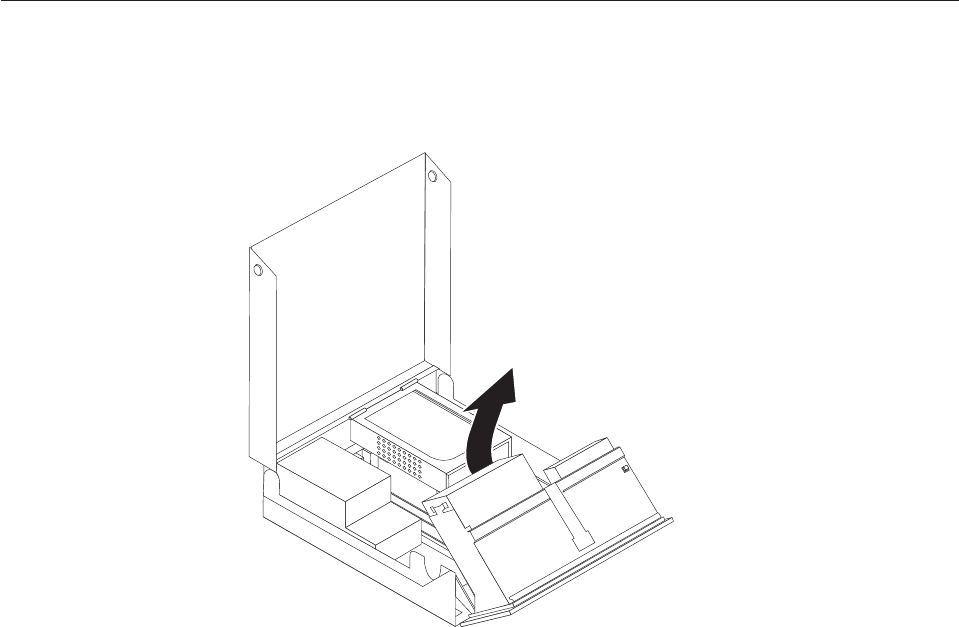

2. Pivot the drive-bay assembly upward to gain access to the fan assembly.
3. Disconnect the fan cable, power switch/LED cable, and temperature sensor
cable from the system board. See “System board connectors” on page 87.
Note: Make sure you note the location of the fan cables when you disconnect
the cables from the system board.
