Counter module
31
Counter module
h
More information on wiring up the counter module can be
found in Chapter 3 from Page 21.

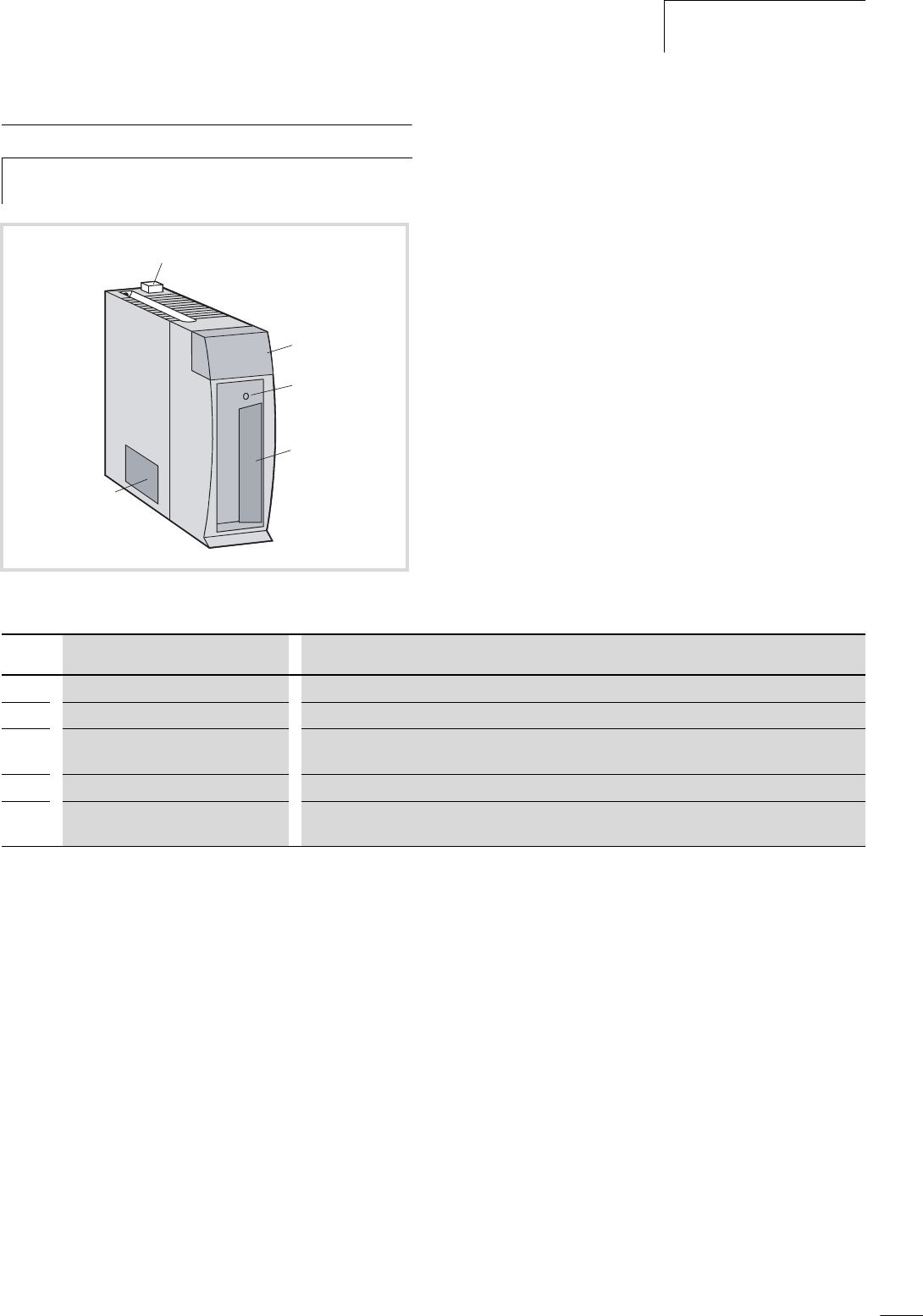

Figure 40: Assembly of the counter module
RESET
CN1
e
a
d
c
b
No. Designation Comments
a Catch
b LED display
c Reset button This is used if a hardware error is generated by the module.
Note: After switching on the supply voltage, pressing the reset button will make the ER-LED light up.
d
Connection for external cabling 30-pole connection (15 pins × 2) for the XIOC-TERM30-CNT4 connector
e
Mode switch (DIP) This switch is used to set the operating mode. Switch off the supply power and then detach the
module before setting the DIP switch.
