Good quality sound of 2-Channel Stereo system can be achieved by connecting this DVD player to a receiver equipped with a two analogue audio
inputs (right and left) and speaker system (right and left front speakers).

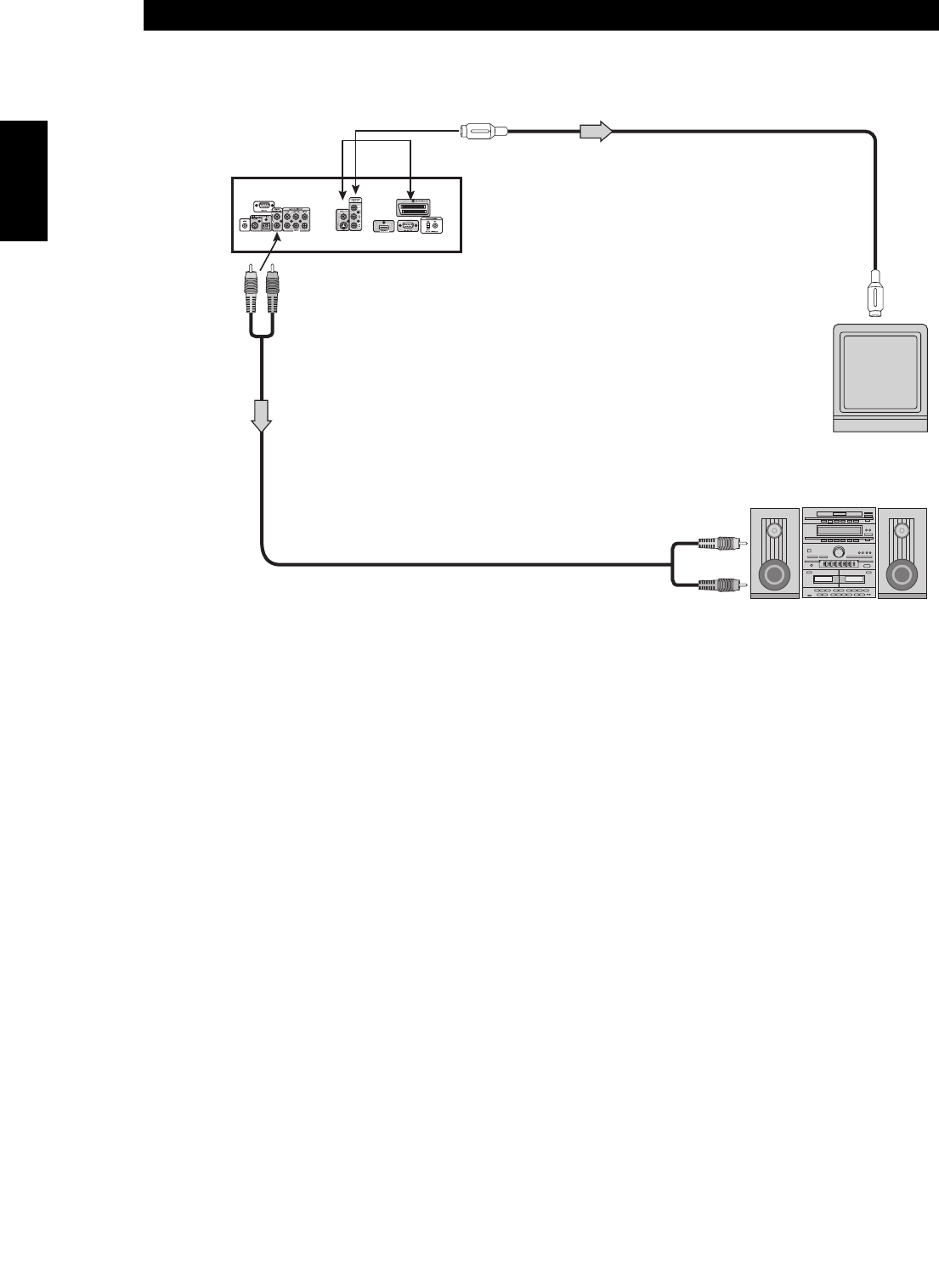

CONNECTING TO AN ANALOGUE STEREO SYSTEM
Setup
From the MIXED AUDIO OUT
(L & R) Jacks
Audio cable
To the analogue input (L & R)
amplifier equipped with
analogue inputs.
TV or monitor with
audio/visual inputs
Audio system
From S-VIDEO / Component Video /
Composite or SCART
S-VIDEO / Component / Composite
75–Ohm coaxial or SCART cable
To S-VIDEO / Component /
Composite or SCART
inputs of the TV.
TO ENJOY GOOD QUALITY SOUND
Downmix allows a multichannel program to be reproduced over fewer speaker channels than for which the program is optimally intended. Simply
put, down-mixing allows you to enjoy a 5.1 or 7.1 channel media regardless of how many speakers you have.
In Downmix, the analog stereo output is one of two different stereo down-mixes. One type is a surround-compatible Downmix (Left-total/Right-total,
or Lt/Rt) of the multichannel source suitable for Dolby Pro Logic II, Dolby Pro Logic IIx, or other matrix decoding. The other type is a simple stereo
Downmix suitable for playback on a two-channel stereo system or on headphones.
From the Setup OSD, you need to select, Audio, Downmix, and then ‘Stereo’ for a two channel stereo system.
NOTES
• Refer to the owner’s manual of your receiver as well.
• Before you connect the M55 to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before
making any connections.
• Depending on your Digital sound decoder, the decode rate may be 96 kHz or 48 kHz.
• The output sound of the M55 has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the
speakers may be damaged by a sudden high volume sound.
• Turn off the receiver before you connect or disconnect the M55’s power cord. If you leave the receiver power on, the speakers may be damaged.
