Getting started

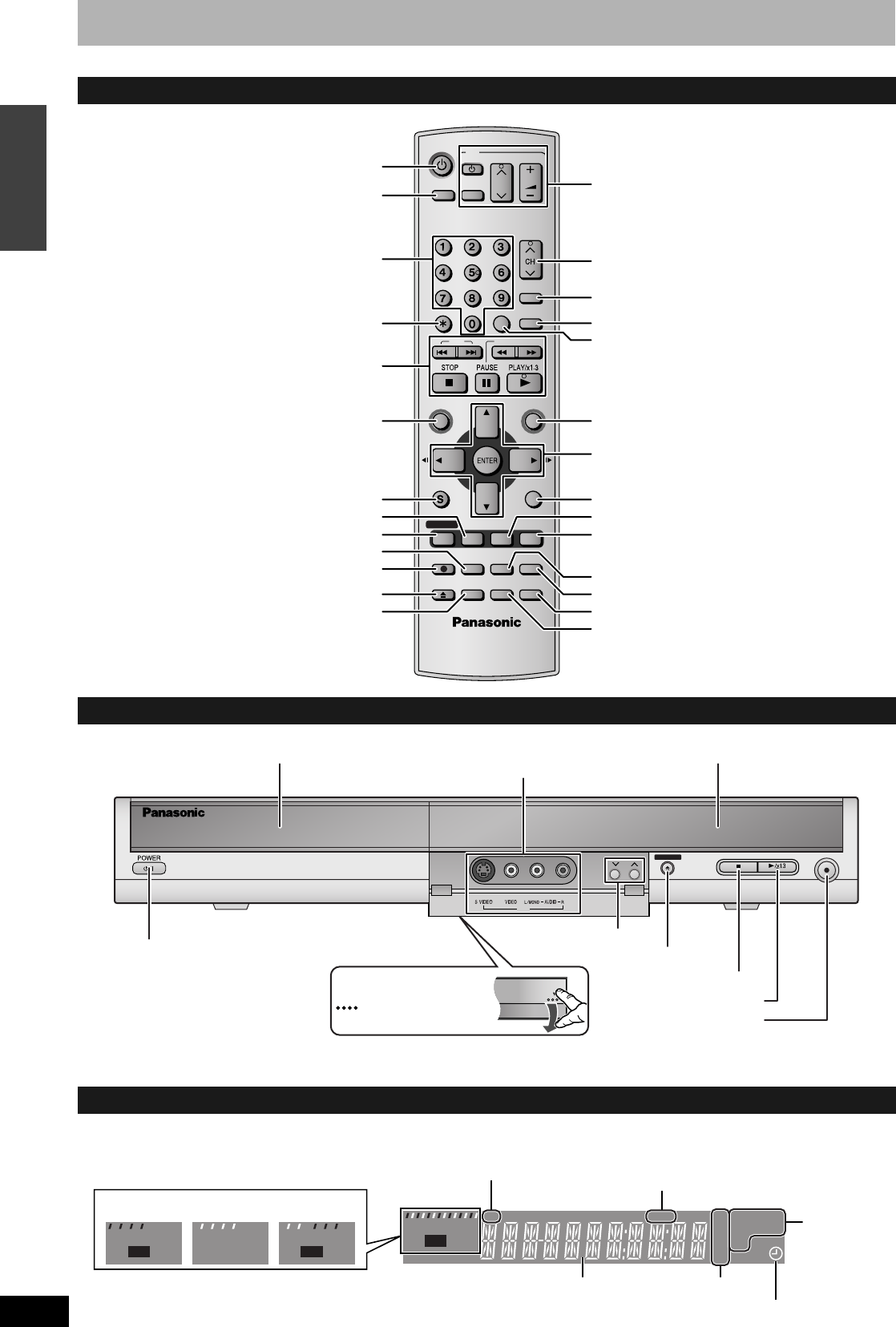

Control reference guide
Remote control
TV
ADD/DLT
OPEN/CLOSE
SKIP SLOW/SEARCH
REC MODE ERASE
REC
POWER
F Rec
TIME SLIP
FUNCTIONSDIRECT NAVIGATOR
TOP MENU
RETURN
VOLUME
CH
INPUT SELECT
STATUS
DISPLAY
SUB MENU
DVD POWER
TV/VIDEO
SETUP
CREATE
CHAPTER
SCHEDULE
CM SKIP
AUDIO
CANCEL
VCR Plus+
Turn the unit on (➔ page 10)
Input select (IN1, IN2 or IN3)
Select channels and title numbers, etc./
Enter numbers
Cancel
Basic operations for recording and play
Show Top menu/Direct Navigator
(➔ page 20, 22, 26)
Show sub menu (➔ page 23, 26, 29)
Show on-screen menu (➔ page 24)
Change recording mode (➔ page 15)
Open/close disc tray (➔ page 15, 20)
Show SETUP menu (➔ page 11, 34)
Television operations (➔ page 14)
Channel select (➔ page 15)
Select audio (➔ page 16, 20)
Skip a minute forward (➔ page 21)
Show VCR Plus+ screen (➔ page 18)
Show FUNCTIONS window (➔ page 25)
Selection/Enter, Frame-by-frame (➔ page 10, 21)
Return to previous screen
Show status messages (➔ page 25)
Skip the specified time/Display the television image
as a picture-in-picture (➔ page 16, 21)
Start Flexible Recording (➔ page 17)
Create chapters (➔ page 21)
Add/delete channel (➔ page 11)
Erase items (➔ page 21)
Start recording (➔ page 15)
Show scheduled recording list (➔ page 19)
Main unit
REC
OPEN/CLOSE
IN2
CH
Display (➔ below)Disc tray (➔ page 15, 20)
Open/close disc tray (➔ page 15, 20)
Channel select (➔ page 15)
Start recording (➔ page 15)
Connection for camcorder, etc.
(➔ page 17)
/Remote control signal sensor
POWER button (POWER 8) (➔ page 10)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the
unit is still consuming a small amount of
power.
Start play (➔ page 20)
Stop (➔ page 16, 21)
Rear panel terminals (➔ page 7, 8)
How to open the front panel
Apply your finger to the
section and push down
towards the bottom.
The unit’s display
D.MIX
XP
AVCD
RW
–
+
RAM
SP
LP
EP
CH
PLAY
DVD
–
VR
REC
REC
PLAY PLAY
REC
.
mu
t
-c
anne
-
u
o on
y
When lit: Down-mixing audio is played.
When off: The disc prevents down-mixing so only
the two front channels can be played.
Recording mode
Channel
Main display section
Disc type
Recording
Playback
Recording/
Playback
Scheduled recording indicator
