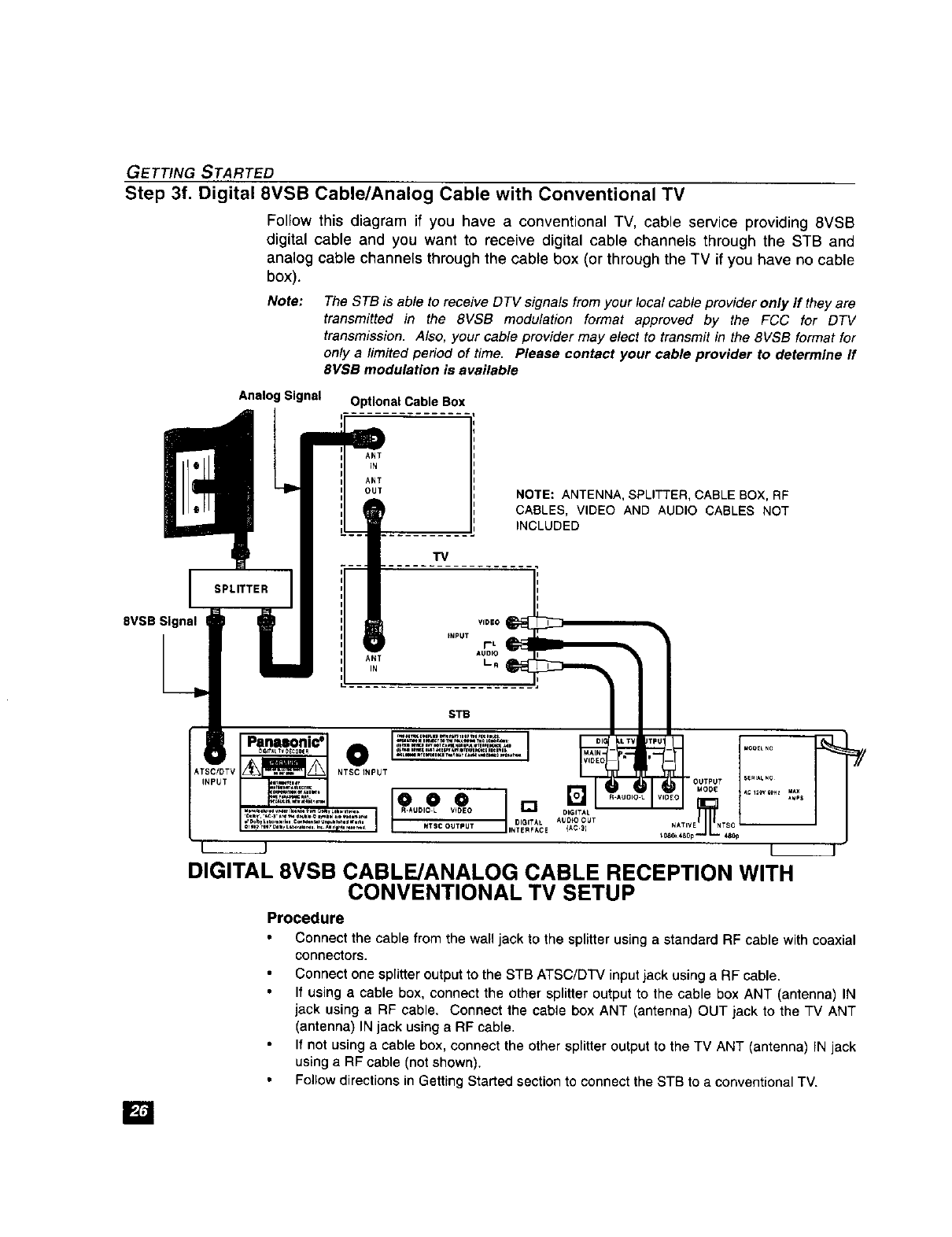

GETTING STARTED
Step 3f. Digital 8VSB Cable/Analog Cable with Conventional TV
Follow this diagram if you have a conventional TV, cable service providing 8VSB
digital cable and you want to receive digital cable channels through the STB and
analog cable channels through the cable box (or through the TV if you have no cable
box).
Note:
The STB is able to receive DTV signals from your local cable provider only ff they are
transmitted in the 8VSB modulation format approved by the FCC for DTV
transmission. Also, your cable provider may elect to transmit in the 8VSB format for
only a limited period of time. Please contact your cable provider to determine ff
8VSB modulation is available
Analog Signal
SPLITTER
8VSB Signal
Optional Cable Box
I
I ANT
I ANT
TV
NOTE: ANTENNA, SPLITTER, CABLE BOX, RF
CABLES, VIDEO AND AUDIO CABLES NOT
INCLUDED
INPUT A -
///sTo
0 ,..........................., -
DIGITAL 8VSB CABLE/ANALOG CABLE RECEPTION WITH
CONVENTIONAL TV SETUP
Procedure
Connect the cable from the wall jack to the splitter using a standard RF cable with coaxial
connectors.
Connect one splitter output to the STB ATSC/DTV input jack using a RF cable.
If using a cable box, connect the other splitter output to the cable box ANT (antenna) IN
jack using a RF cable. Connect the cable box ANT (antenna) OUT jack to the TV ANT
(antenna) IN jack using a RF cable.
If not using a cable box, connect the other splitter output to the TV ANT (antenna) iN jack
using a RF cable (not shown).
Follow directions in Getting Started section to connect the STB to a conventional TV.
[]
