Publication 1771-6.5.132 - June 2000
4-10 Configuring the DeviceNet Network

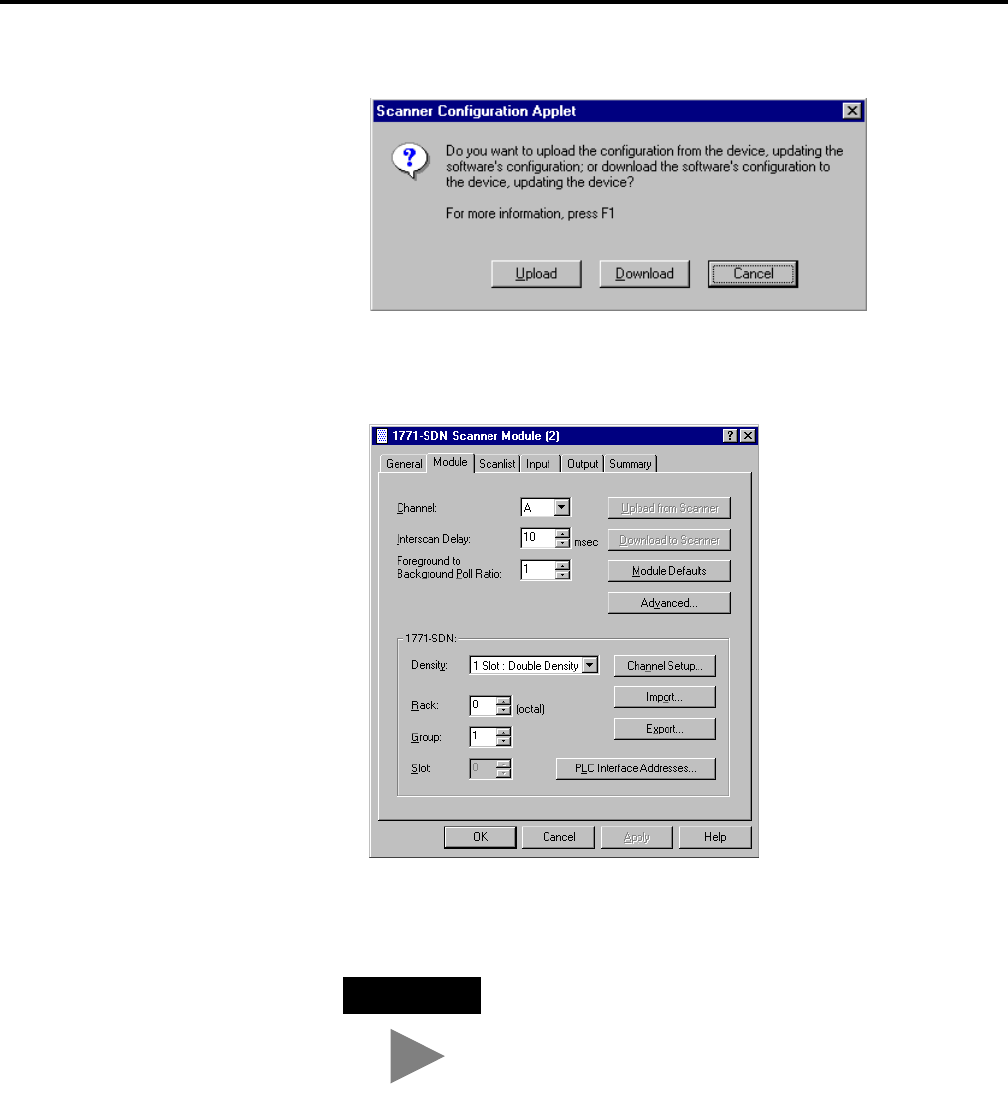

You will be prompted to upload or download the configuration.
3. Click on Upload.
After uploading the Module page will appear:
4. Make sure the 1771-SDN module’s Rack and Group numbers are
correct. We used Rack 0, Group 1 for the example application.
5. Select the Scanlist tab.
TIP
We used the Module Defaults for the other settings.
For an explanation of the other settings (Import
and Export, PLC Interface Address, etc.) click on
the Help button.
