ASSEMBLY INSTRUCTIONS
23

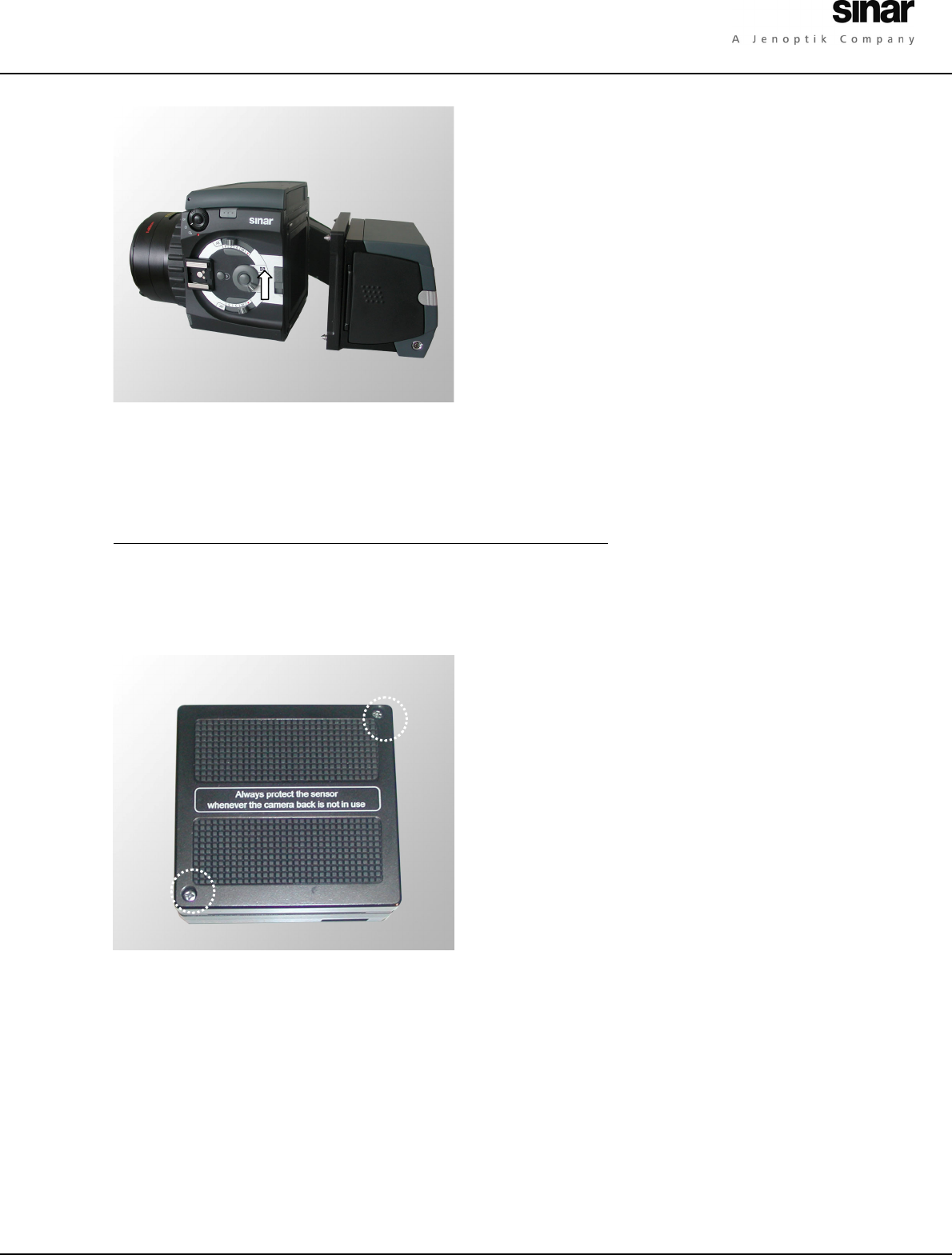

Fig. 5 / 15 Attachment of the Sinarback eMotion
Attach the Sinarback to the camera. Insert
the pins at the Sinarback into the holes at
the rear end of the camera. Hold the
Sinarback parallel to the body and make
sure that all four of the pins are locked
simultaneously.
When the Sinarback is detached from the
camera and not in use, please use the
protection cap.
To detach the Sinarback from the camera,
press the Adapter Release Button 1 and
push it upwards.
5.3.2.2 Attachment and Removal of a Sinarback 54 MC
The following description applies to the Sinar Hy6 system Hy6-m54, and to the assembly
of the Sinarback 54 MC to a Sinar Hy6 camera body.
The Sinarback 54MC is delivered with a
protective cover.
First, remove the protective cover from the
camera back using the screwdriver included
in the delivery.
The protective cover is fixed with two
screws that cannot be removed from the
back.
Fig. 5 / 16 Sinarback 54MC with protective cover
