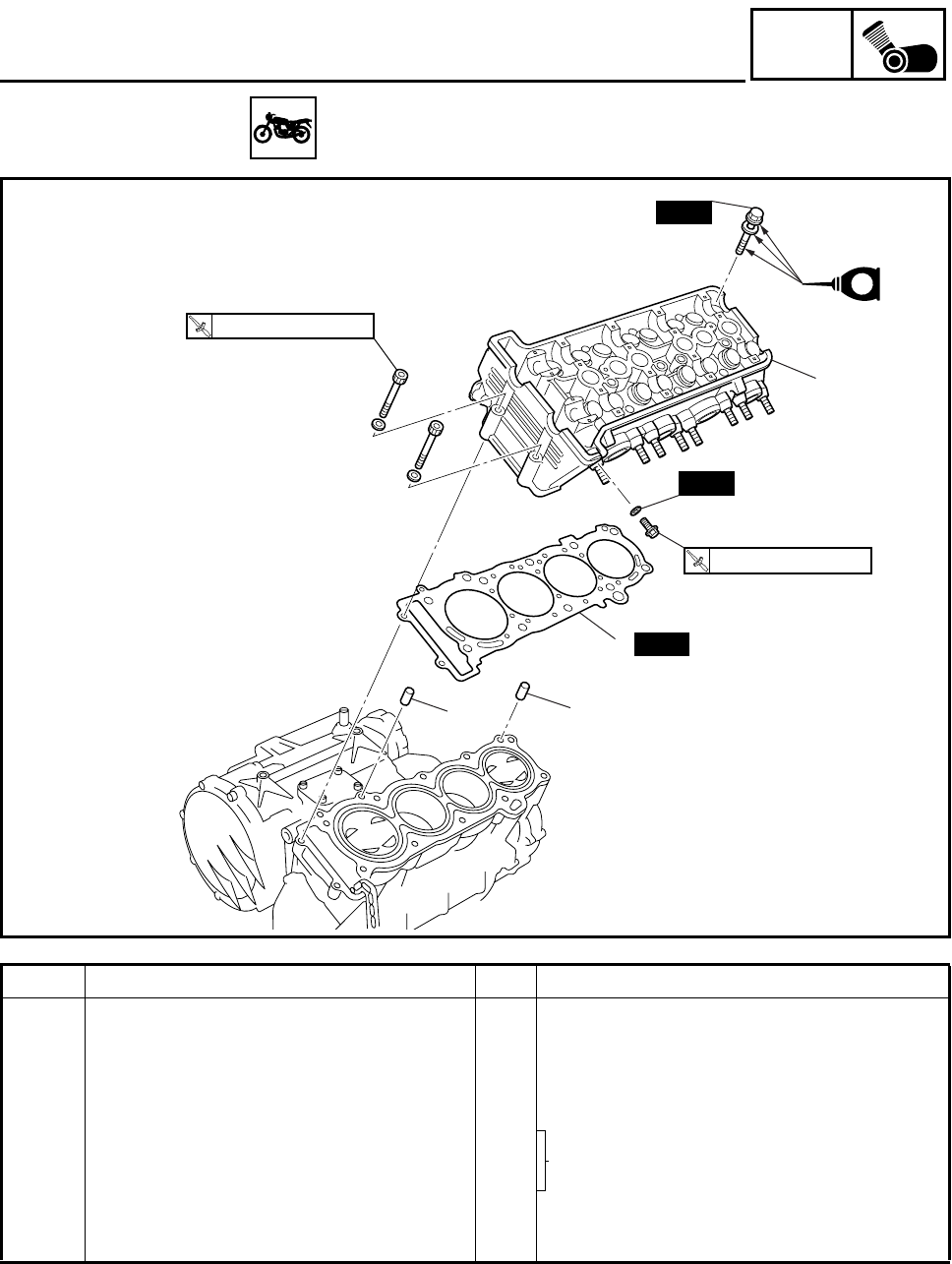

CYLINDER HEAD
EAS00221
CYLINDER HEAD
T
R
.
.
12 Nm (1.2 m
kg)
T
R
.
.
20 Nm (2.0 m
kg)
New
New
E
3
3
2
New
1
(10)
Order Job/Part Q’ty Remarks
Removing the cylinder head
Remove the parts in the order listed.
Radiator Refer to “RADIATOR” in chapter 6.
Exhaust pipe assembly Refer to “ENGINE”.
Camshafts Refer to “CAMSHAFTS”.
1 Cylinder head 1
Refer to “INSTALLING THE CYLINDER
HEAD”.
2 Cylinder head gasket 1
3 Dowel pin 2
For installation, reverse the removal
procedure.
