Take Apart Focus VR Control - 24
±
Warning:
Never use a
grounding wriststrap until
after discharging the CRT.

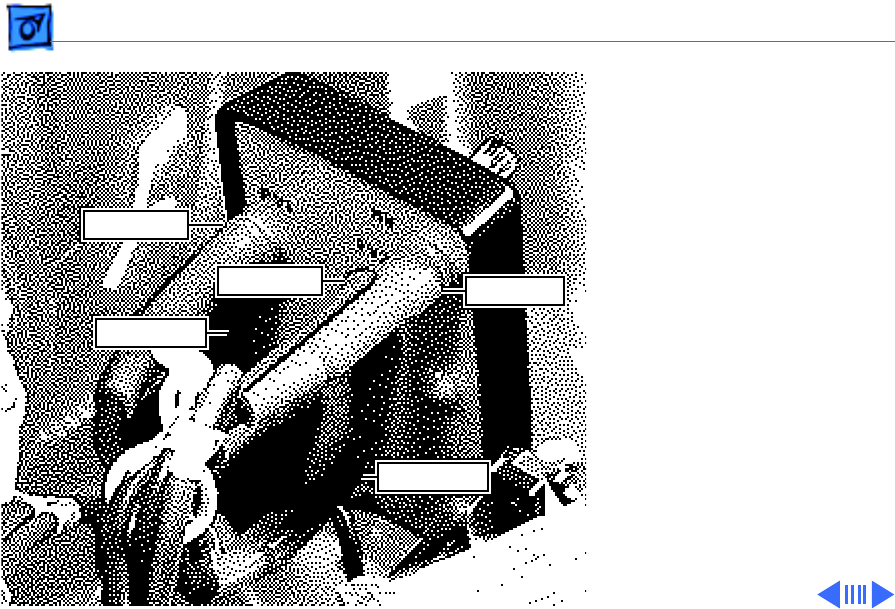

1 Disconnect these cables
from the focus control:
•MV
• FV1
• FV2
• VIDF
• HIDF
FV1 Cable
VIDF Cable
FV2 Cable
MV Cable
HIDF Cable
