Take Apart Main Deflection Board - 42

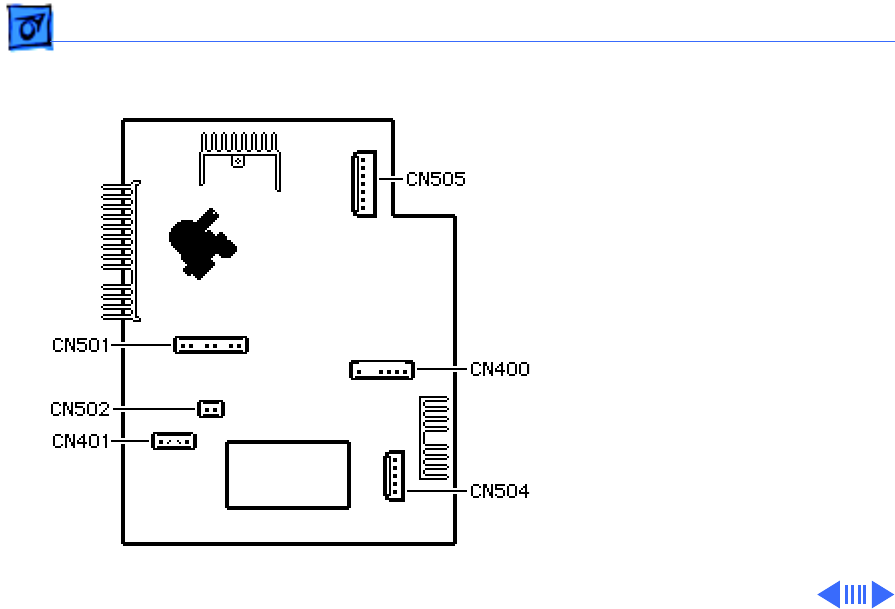

9 Disconnect these cables
from the main deflection
board:
• 2-wire cable
(CN401)
• 2-wire cable
(CN502)
• 2-wire cable
(CN1604)
• 6-wire cable
(CN505)
• 5-wire cable
(CN504)
• 5-wire cable
(CN400)
