Configuration Instructions

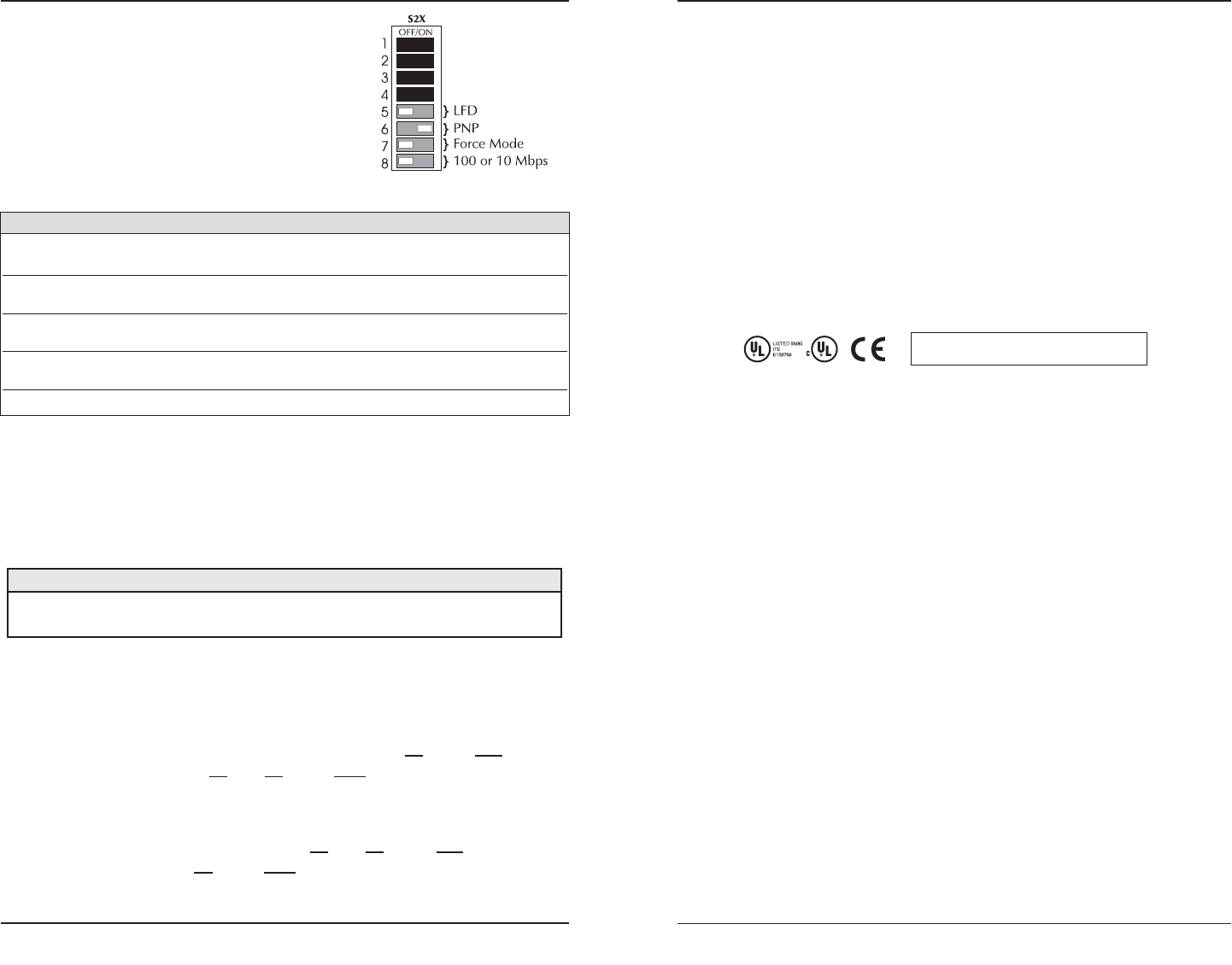

10/100 Autosensing Media Converters features
an 8-position DIP switch for configuring the unit.
This switch is accessed through a cut-out in the
bottom of the unit. After configuring the switch,
power down the unit and then power up again for
the DIP switch changes to take effect. The follow-
ing table provides simplified definitions of the
function of each switch. More detailed information follows
.
10/100 Autosensing Media Converter Modes of Operation
The 10/100 Autosensing Media Converter features three “modes” of
operation: Auto-Negotiation/PNP mode, Force 10 mode and Force 100
mode. Your media converter should be configured for one of these modes
(factory default is AN/PNP mode). For information on Link Fault Detection,
refer to pages 3-5.
• Auto-Negotiation mode, also known as PNP, is the mode most ideally
suited for the 10/100 Autosensing Media Converter. In this mode, the
converter will optimally and automatically configure for speed (10 or
100 Mbps) depending on the capabilities of the end stations.
To enable Auto-Negotiation/PNP mode, set switch S6
to the ON
position, with switches S7 and S8 in the OFF position.
•In Force 10 mode, the media converter converts 10Base-T to
10Base-FL; 100 Mbps signals are not accepted.
To enable Force 10 mode, set switch S7
and S8 to the ON
position, with switch S6 in the OFF position.
N
OTE
10/100 Autosensing Media Converter cannot be manually set for Half- or Full-Duplex.
Duplex is determined by the devices to which your media converter is connected.
4) Should it be necessary to disconnect the fiber device, reinstall the protective
dust caps.
5) If you suspect that the optics have been contaminated, alternate between
blasting with clean, dry, compressed air and flushing with methanol to remove
particles of dirt
.
W ARRANTY
Please contact Black Box Corporation for complete warranty information.
S AFETY
C ERTIFICATIONS
UULL//CCUULL::
Listed to Safety of Information Technology Equipment, Including Electrical Business Equipment.
CCEE::
The products described herein comply with the Council Directive on Electromagnetic
Compatibility (89/336/EEC) and the Council Directive on Electrical Equipment Designed for use
within Certain Voltage Limits (73/23/EEC). Certified to Safety of Information Technology
Equipment, Including Electrical Business Equipment. For further details, contact IMC Networks.
F
EDERAL C OMMUNICATIONS
C OMMISSION R ADIO F REQUENCY
I NTERFERENCE S TATEMENT
This equipment has been tested and found to comply with the limits for a Class B computing device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which the user
will be required to correct the interference at his own expense.
Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate the
equipment.
The use of non-shielded I/O cables may not guarantee compliance with FCC RFI limits.
This digital apparatus does not exceed the Class B limits for radio noise emission from digital apparatus set out in the
Radio Interference Regulation of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites applicables aux appareils
numériques de classe B prescrites dans le Règlement sur le brouillage radioélectrique publié par le ministère des
Communications du Canada.
Class 1 Laser product, Luokan 1 Laserlaite,
Laser Klasse 1, Appareil A’Laser de Classe 1
LFD S5
Link Fault Detection (Refer to page 3 for configuration
OFF
instructions. Available only in Force modes)
PNP S6
Auto-Negotiation Mode (Plug-N-Play)
ON
(Valid only when Force mode is disabled)
Force S7
Force Mode — Forces Autosensing 10/100 to operate
OFF
at 10 or 100 Mbps as determined by
S8
100
or
10 S8
When ON, Autosensing 10/100 operates at 10 Mbps
OFF
When OFF, Autosensing 10/100 operates at 100 Mbps
Note:
S1
-
S4
are factory configured — DO NOT CHANGE
MODE SWITCH FUNCTION DEFAULT
