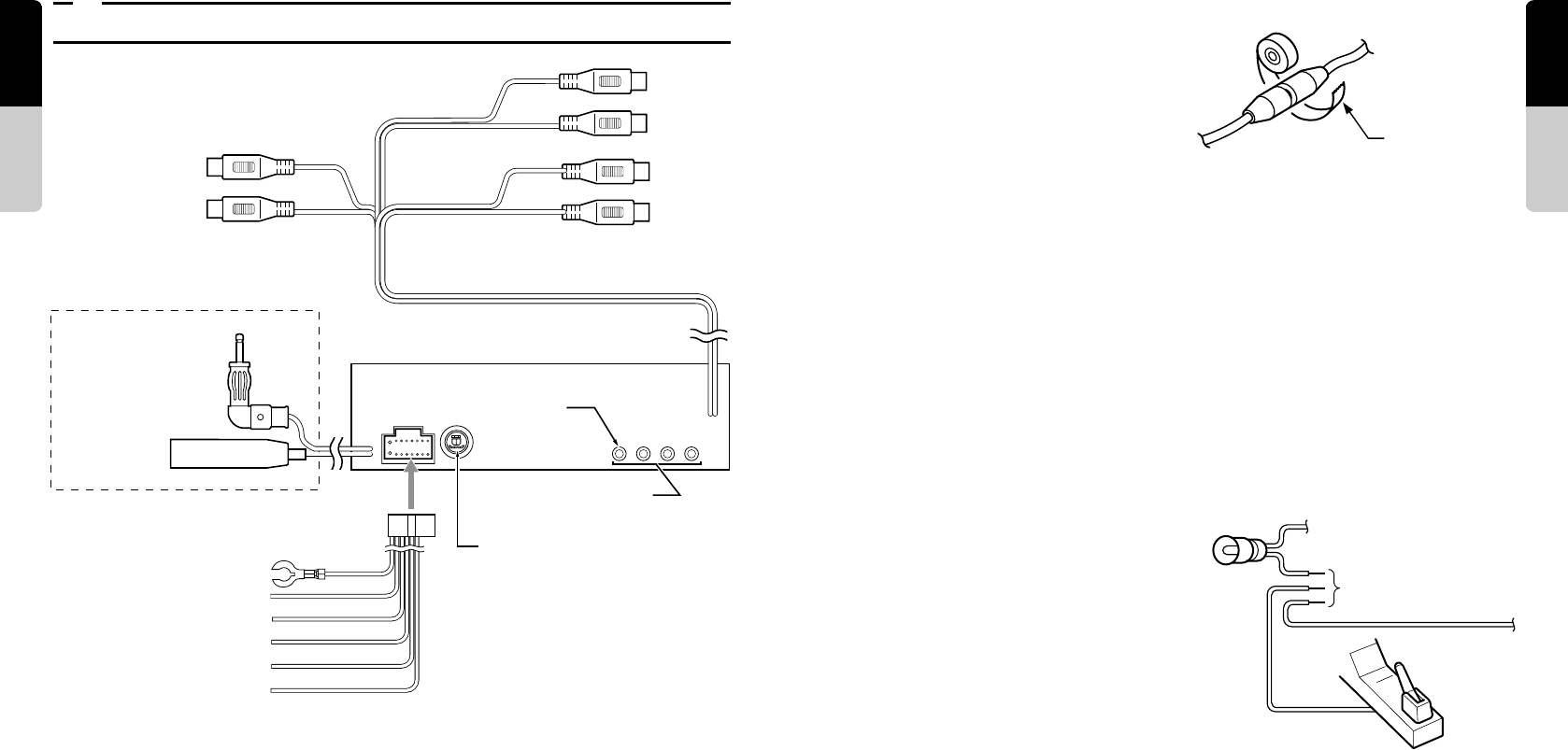

8. WIRE CONNECTIONS
System expansion
terminal
Gray
Gray
White
Red
Audio output
(left)
Audio output
(right)
Gray
Black
Yellow
Yellow
White
Red
Video output
Video input
Audio input
(left)
Audio input
(right)
Black
Black
Radio antenna
input terminal (✻2)
TB731P/TB732P only
Radio antenna
output terminal (✻1)
TV antenna terminal
(MINI ø3.5) (✻7)
Main antenna
input terminal
Ground lead (✻5)
Main power supply lead (✻4)
Accessory power supply lead (✻3)
Illumination power supply lead
Parking brake lead (✻6)
(✻8)
Black
Yellow
Red
Orange/white
Bright green
Brown
*1: Connect this to the antenna input terminal
on the car stereo. (TB731P/TB732P only)
*2: Connect the vehicle’s radio antenna to this.
(TB731P/TB732P only)
*3: Connect to the power supply terminal which
can be turned on and off by the ignition
switch.
*4: Connect to the power supply terminal
where the power is always supplied
regardless of whether the ignition switch is
turned on or off.
*5: Connect securely to the metal part of the
vehicle with a screw, etc.
*6: Connect to the ground lead of the parking
brake lamp in the instrument panel.
*7: There are four antenna terminals: Main and
sub. When there is one vehicle side
antenna connector, connect it to the main
terminal.
*8: It is not connected.
Notes:
• The unit cannot be used on its own. It must be
used in combination with the car stereo.
• The main power cord (yellow) must be connected
to the prescribed location. Malfunctioning may
occur if it is connected together with other cords
at the same location.
■
RCA Extennsion Cable
• Do not remove the insulating cap of the RCA
extension cable which is not going to be
connected to prevent it from short-circuit.
• Fix the RCA extension cable with insulating
tape so that the connection part is not going to
be loose.
■
Concerning the illumination power supply (automatic reduced light function)
When the illumination power supply lead has
been connected, the picture brightness is
automatically reduced when the vehicle’s light is
turned on at night.
■
Connecting the parking brake lead
Connect the lead to parking brake lamp earth in
the meter panel.
Notes:
• Connecting the parking brake lead to lamp earth
allows you to watch TV when the parking brake is
engaged.
• When the parking brake lead is not connected,
the monitor will stay off.
Insulating tape
Parking brake
Parking brake lamp
+ lead to battery
Connect these three leads.
- cord
parking
brake signal
lead
Parking brake lead
(bright green)
