BASIC CONNECTION
07

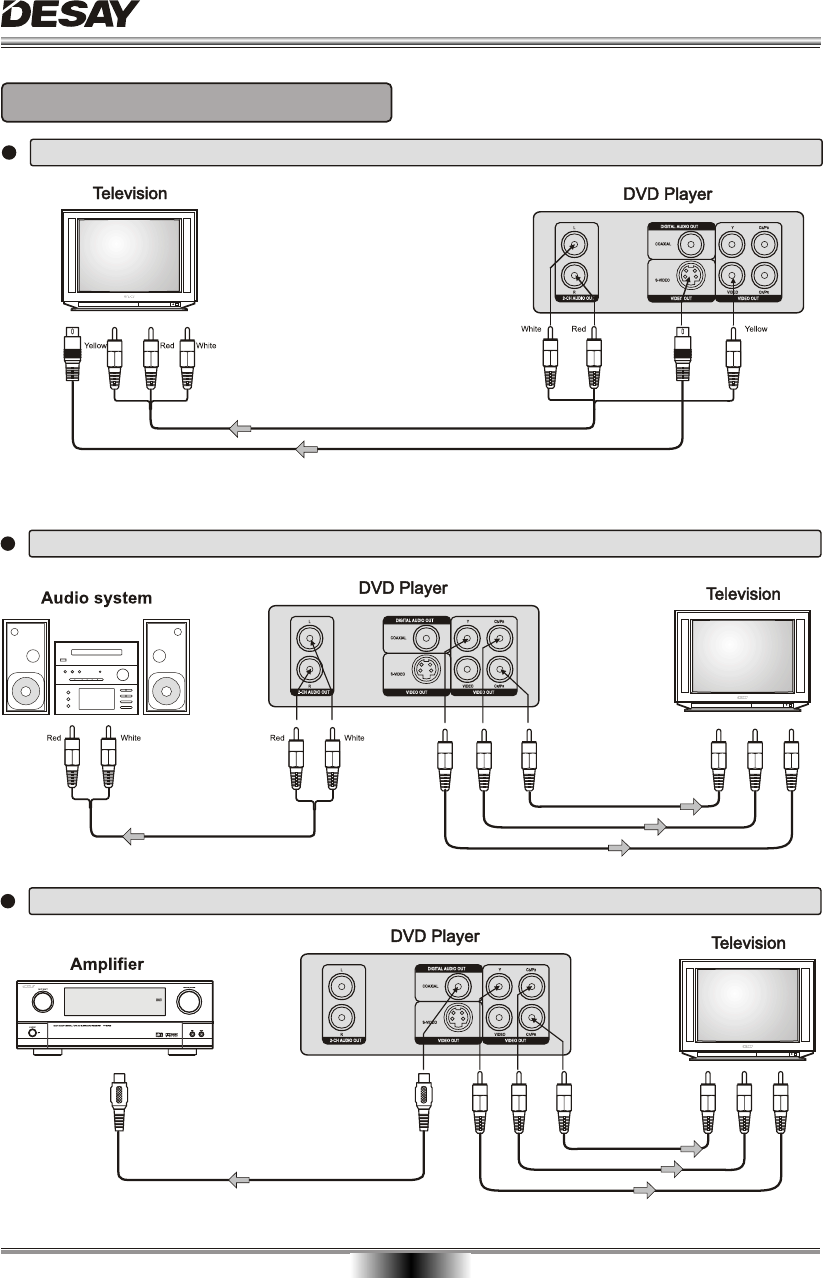

Connecting to an amplifier equipped with a digital audio input and TV
Connecting to a audio system and TV equipped with YUV video input
To Y video input
To CB/PB video input
To CR/PR video input
To Y video output
To CB/PB video output
To CR/PR video output
Coaxial cable
To COAXIAL
type digital
audio input
To audio inputs of the amplifier
To Y video input
To CB/PB video input
To CR/PR video input
To Y video output
To CB/PB video output
To CR/PR video output
To video input(yellow)
To audio inputs(red, white)
To S-video input
If the TV has an S-video input, connect the DVD player with an S-video cable.
When using an S-video cable, do not connect the yellow video cable.
To S-video output
BASIC CONNECTION
Connecting to a TV with Audio/Video cable
