DVD Player + TV with Audio/Video Input Jacks

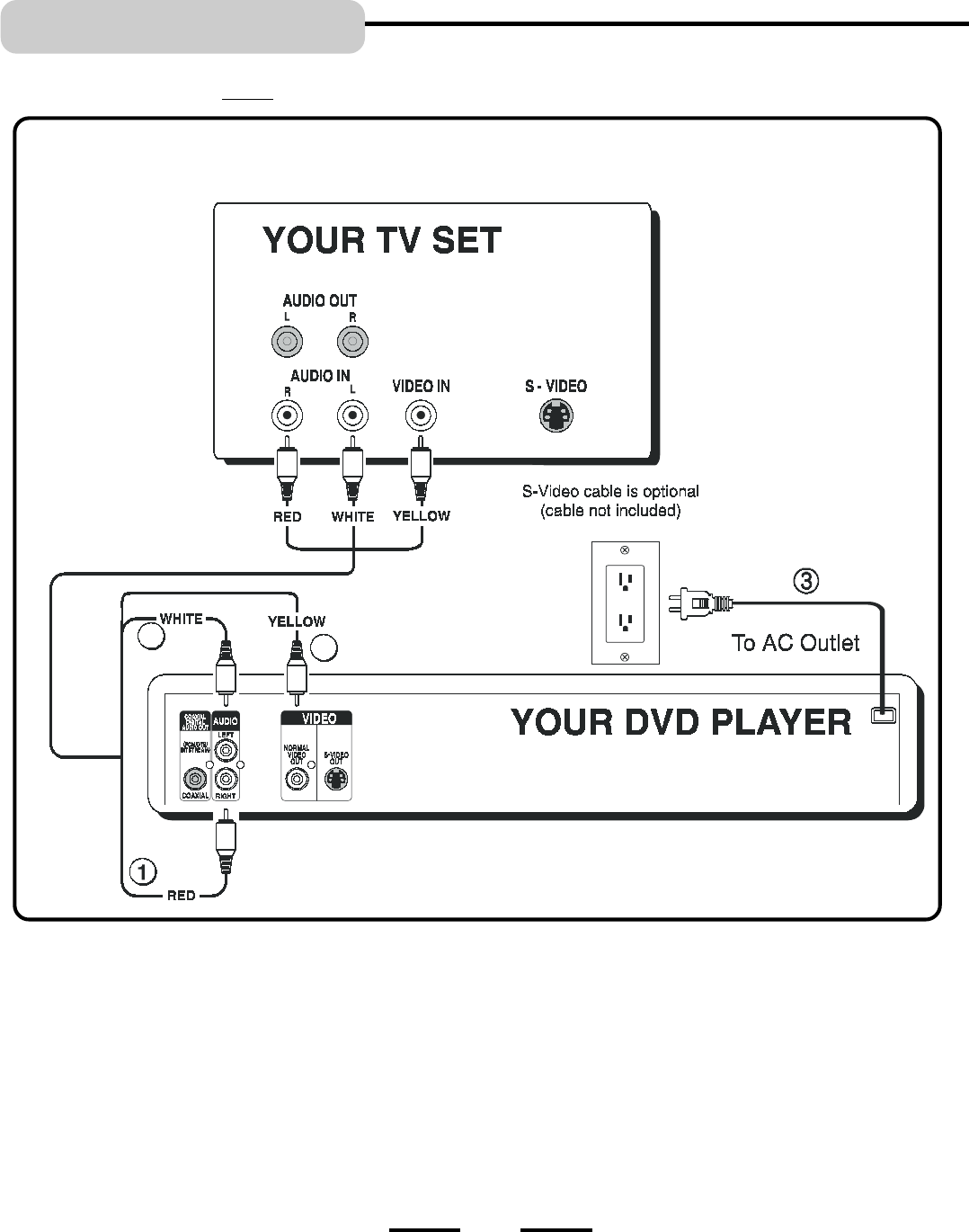

BASIC A/V CONNECTION
CONNECTIONS
4
1. Insert the audio cables into the AUDIO OUT L (left=white) and R (right=red) jacks on the back of your DVD player,
and into the corresponding AUDIO IN jacks on your TV set.
2. Insert the video cable (yellow) into the VIDEO OUT jack on the back of your DVD Player, and into the VIDEO IN
jack on your TV. This connection will allow you to enjoy standard quality video images.
3. Insert the AC power cord into an AC outlet.
4. Go to Page 20 for playing DVDs (discs).
NOTE: Your cable or antenna connection to the television should not be affected by this connection. Connect your
antenna cable to your television as you normally would. You may need to consult your television manual
for details, but no changes will be made to your current antenna connections.
NOTE: If your TV set has
no AUDIO/VEDIO
jacks, you must
buy an RF
Modulator (see
Page 6).
IB-DVD2003-COMPUSA-E-061202
AC IN ~
1
2
