12 DX-DRTVM102
Need help? Call 800-305-2204
Step 6: Mount the wall plate
Note: Any material covering the wall (such as sheetrock) must not exceed 5/8" (16 mm).

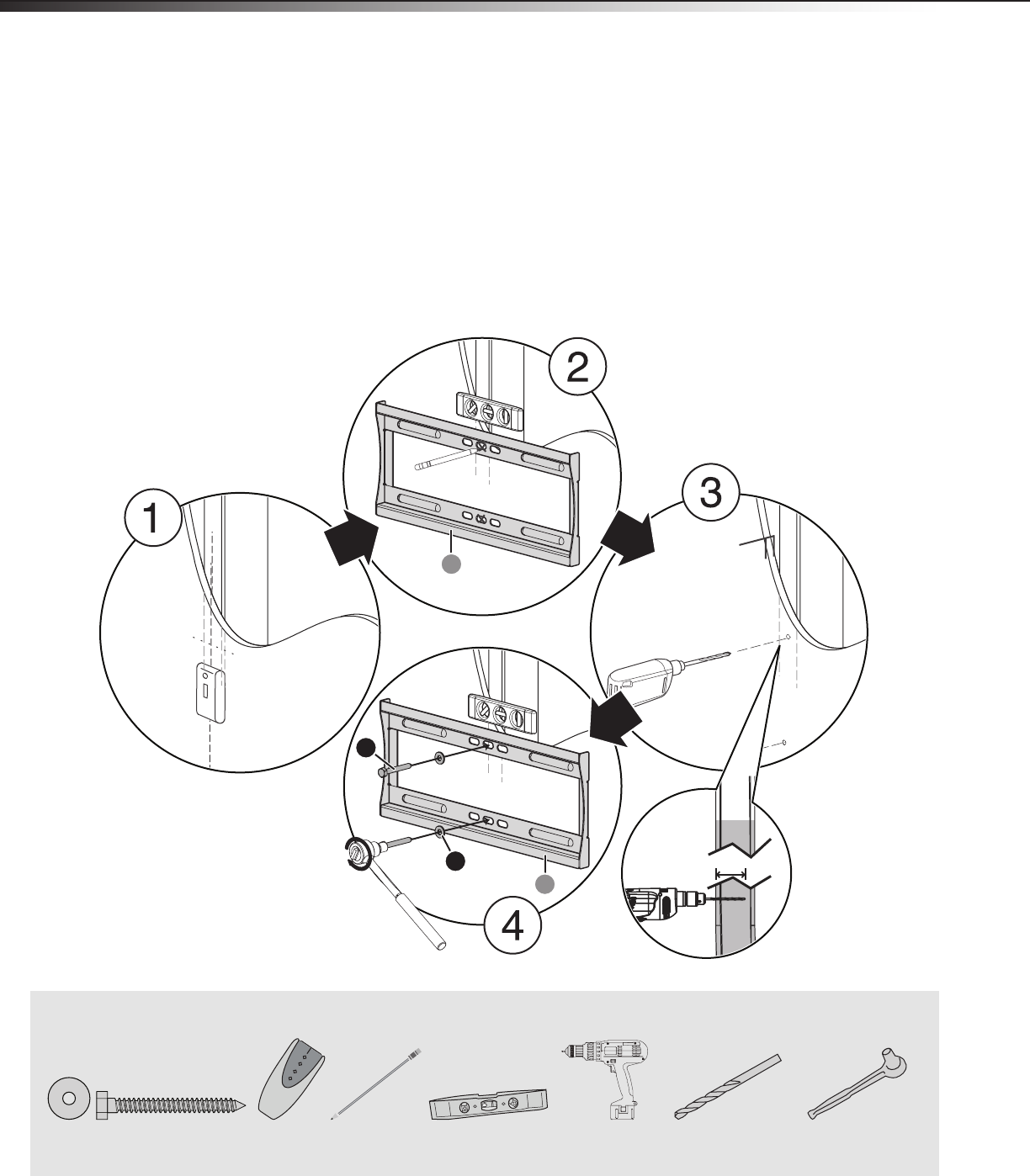

Option 1: Mounting on a wood-stud wall
1 Locate the studs. Verify the center of the stud with an edge-to-edge stud finder.
2 At the wall height you determined in the previous step, align the wall plate (01) against the wall and make sure
that it is level. Use a pencil to mark the screw hole locations, then remove the wall plate.
3 Drill pilot holes to a depth of 3" (75 mm) using a 7/32" (5.5 mm) diameter drill bit.
4 Align the wall plate with the pilot holes, then place the washers (05) over the holes in the wall plate. Insert the lag
bolts (04) through the washers, then tighten the lag bolts only until the washers are pulled firmly against the wall
plate.
Caution: Avoid potential injuries or property damage! DO NOT over-tighten the lag bolts (04).
You’ll need:
01
04
05
01
< 5/8"
(16 mm)
3" (75 mm)
05 (2) 04 (2) Pencil Drill Socket wrench with
1/2" (13 mm) socket
or adjustable wrench
7/32" (5.5 mm)
wood drill
LevelStud
finder
