8 DX-DRTVM102
Need help? Call 800-305-2204
Step 3: Select screws and spacers
1 Select the hardware for your TV (screws, washers, and spacers). See the documentation that came with your TV
for screw length and diameter.
Select one of the following types of screws:
Select one of the following types of washers:
For an irregular or obstructed TV back, select one of the following types of spacers:

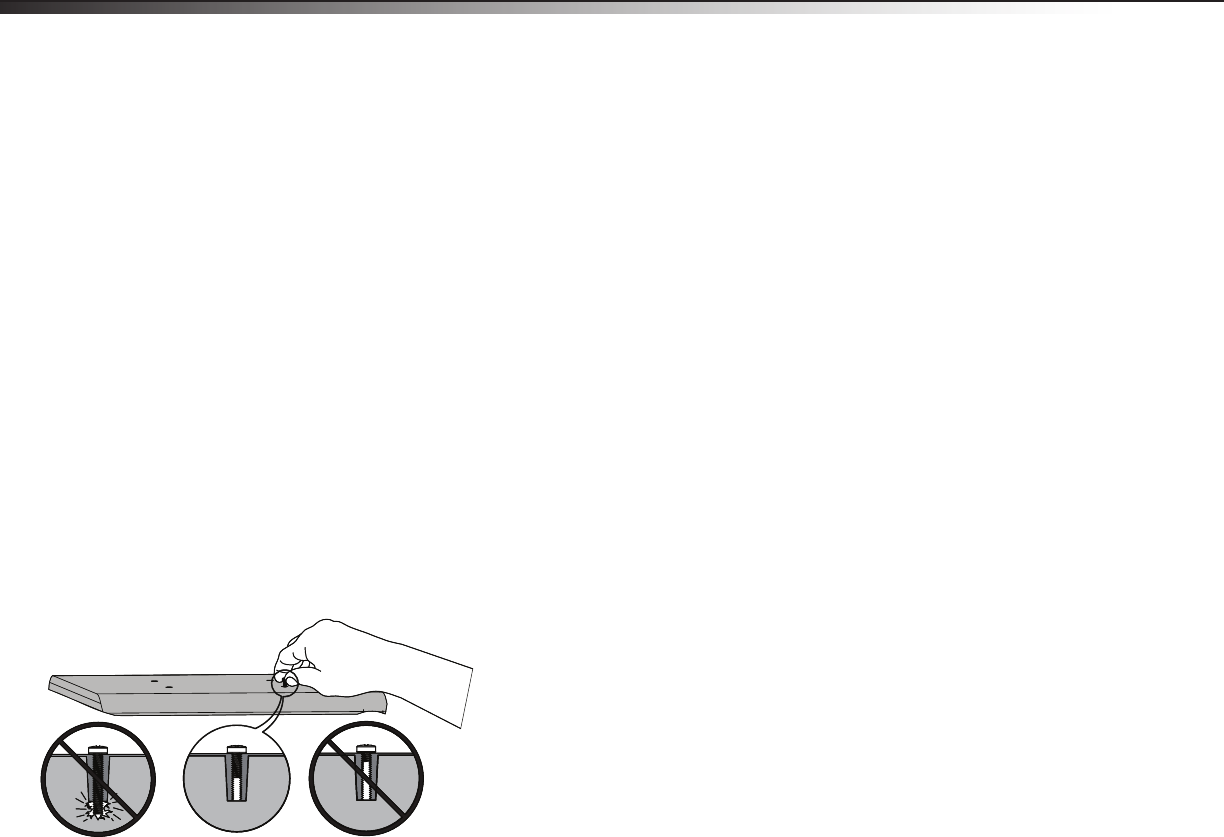

2 Hand thread screws into the threaded screw holes on the back of your TV to determine the correct screw
diameter and length. If your TV has an irregular or obstructed back, place a spacer between your TV back and the
screw to make sure you have the correct length.
Caution: To avoid potential personal injuries and property damage,
make sure that there are adequate threads to secure the brackets to
your TV. If you encounter resistance, stop immediately and contact
customer service. Use the shortest screw and spacer combination to
accommodate your TV. Using hardware that is too long may damage
your TV. However, using a screw that is too short may cause your TV
to fall from the mount.
3 Remove the screws.
For a flat back TV, go to “Step 4: Install the TV brackets Option 1: Installing for a TV with a flat back” on
page 9.
For an irregular or obstructed back, go to “Step 4: Install the TV brackets (continued) Option 2: Installing
for a TV with an irregular or obstructed back” on page 10.
M4 × 12 mm screws (07)M6×12mm screws (11)
M4 × 30 mm screws (08)M6×20mm screws (12)
M5 × 12 mm screws (09)M6×35mm screws (13)
M5 × 30 mm screws (10)
M4/M5 washers (14) M6 washers (15)
M4/M5 spacers (16) M6 spacers (17)
Screw is
too long
Screw fits
correctly
Screw is
too short
