CONNECTIONS & SETUP
15
Connections (Continued)

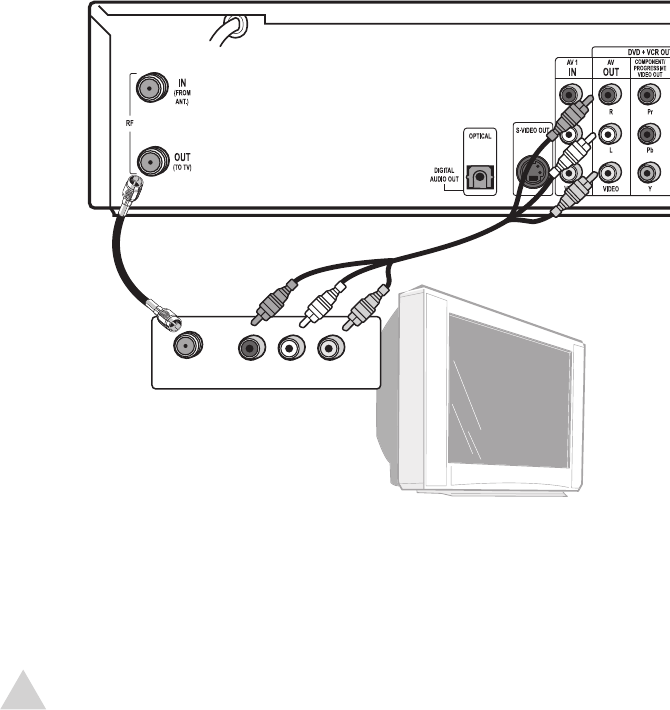

Connecting a TV
Choose one of the following TV connections, depending
on the capabilities of your equipment.
ote
All video signals are available from all video out-
puts.
That means that whichever TV connection you
use, it will work with all input sources, including VHS out
of the Component/Progressive Video Output.
RF Coaxial Connection
Connect the RF OUT
(TO TV) jack on the DVD
Recorder+VCR to the antenna in jack on your TV using
the supplied 75-ohm coaxial cable (R). If you use this
connection, tune your TV to the DVD Recorder+VCR’s
RF output channel (CH 3 or 4).
How to set the DVD Recorder+VCR’s RF output
channel
Turn off the DVD Recorder+VCR, then
press and hold
CH (
v/V) on the front panel for about five
seconds to change the RF output channel (CH 03 or
CH 04). “RF-03” or “RF-04” appears on the front panel
display.
Audio/Video Connection
1
1
Connect the VIDEO OUT jack on the DVD
Recorder+VCR to the video in jack on your TV using
the supplied video cable
(V).
2
2
Connect the Left and Right AUDIO OUT jacks from
the DVD Recorder+VCR to the left/right audio in
jacks on your
TV using the supplied audio cables
(A).
S-Video Connection
1
1
Connect the S-VIDEO OUT jack on the DVD
Recorder+VCR to the S-Video in jack on your TV
using an S-V
ideo cable
(S).
2
2
Connect the Left and Right AUDIO OUT jacks from
the DVD Recorder+VCR to the left/right audio in
jacks on your
TV using the supplied audio cables
(A).
Component Video Connection
1
1
Connect the COMPONENT/PROGRESSIVE
VIDEO OUT jacks on the DVD Recorder+VCR to
the corresponding in jacks on your
TV using a Y Pb
Pr cable
(C).
2
2
Connect the Left and Right AUDIO OUT jacks from
the DVD Recorder+VCR to the left/right audio in
jacks on your TV using the supplied audio cables
(A).
Progressive Scan Connection
If your television is a high-definition or “digital ready”
television, you may take advantage of the DVD
Recorder+VCR’s Progressive Scan output for the
highest video resolution possible.
If your TV does not accept the Progressive Scan for-
mat, the picture will appear scrambled.
1
1
Connect the COMPONENT/PROGRESSIVE
VIDEO OUT jacks on the DVD Recorder+VCR to
the corresponding in jacks on your TV using an
optional Y Pb Pr cable
(C).
2
2
Connect the Left and Right AUDIO OUT jacks from
the DVD Recorder+VCR to the left/right audio in
jacks on your
TV using the supplied audio cables
(A).
otes
– Be sure to set the Progressive Scan option to “ON” in
the General settings menu; see page 20.
– Progressive Scan does not work with the RF,
Audio/V
ideo or S-V
ideo connections.
ANTENNA
INPUT
L
R
Y
Pb
Pr
COMPONENT/PROGRESSIVE VIDEO INPUT
AUDIO INPUT
VIDEO
INPUT
S-VIDEO
INPUT
R
Rear of TV
Rear of DVD Recorder+VCR
S AV C
