Loewe Spheros 42 HD Flat Panel Television User Manual



7
Setup and cleaning
A detailed setting up and assembly instruction
accompanies every Spheros wall/desk and
stand unit.

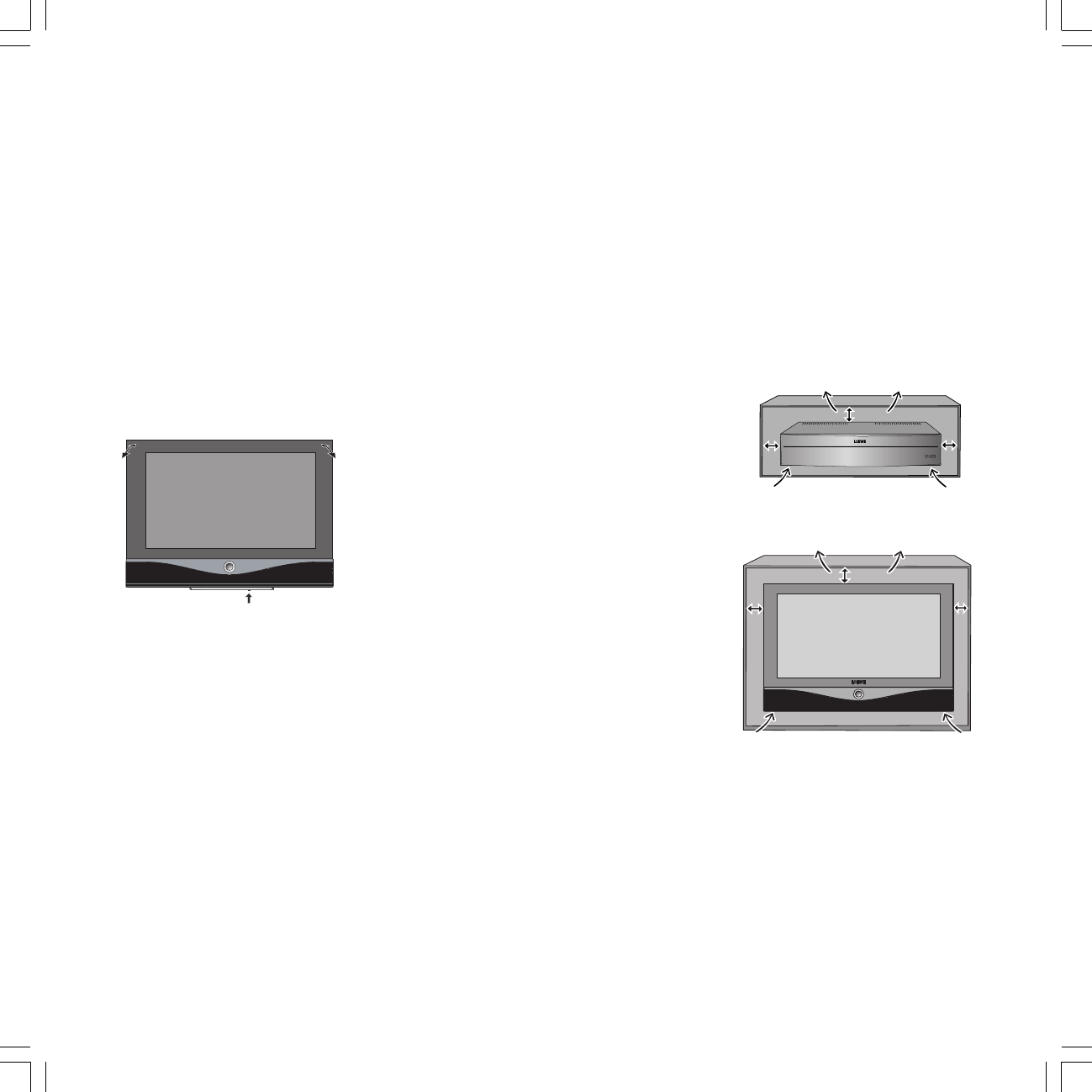

Set up the Spheros Signal Box and the
screen with sufficient space for ventilation.
The openings for ventilation must not be
covered with objects, such as magazines,
tableclothes, curtains etc.
For your safety...
The wall holder is designed to include the
weight of the wall unit / plasma screen.
So, avoid any additional load on it through
persons, playing children or objects. Instruct
children, in particular, about the danger of
excessive load on the plasma screens, the
wall holders or the stands.
Tilting Spheros wall unit
You can tilt the flat panel screen (Plasma display)
within a range of 0 to 12° by using a wall holder.
Keep the button under the wall holder pressed.
Tilt the flat panel screen with the other hand into
the desired position, then let go of the button.
The angle of tilt is retained.
Caution: Risk of injury!
If you wish to tilt the flap screen again, do not
touch the mechanism of the wall holder!
Please note!
The plasma screen of the Loewe Spheros has the
modern image format 16:9 and is conceived for
displaying moving images.
The entire screen is utilized while displaying the
picture in the format 16:9.
As far as possible, avoid displaying the
image in the format 4:3 over a longer period
(some weeks), because then only the central
portions of the screen surface are used,
Setup
showing dark strips to the right and left of
the image.
Select an image that fills up as much of the
screen area as possible, e.g. “Panorama”. This
way, you can prevent formation of different
contrast areas on the screen. If upper or lower
portions of the image are visible only partially
in this format, use the option “Shift image
vertically”; refer to page 10 Image Menu.
Display of TV images or static images / text
pages from a computer through the VGA/
DVI connection over a long time (over 10
minutes) should also be avoided;
otherwise the image contours can remain
static on the screen even on switching the
monitor off.
The DRM (Digital Refresh Mode) function in
this unit can eliminate or reduce such weakly
visible effects.
Effects, remnants of excessively long static
image display, cannot be reversed even
with the help of DRM.
Function Digital Recorder DR
Your Loewe TV set is equipped with a Digital
Recorder. This can be used like a VCR to record
and play picture and sound of TV programs.
Please read the enclosed "Digital
RecorderPlus" operator manual to find out how
to operate it.
Note
The screen you have purchased meets the
highest quality requirements in this sector and
has been tested for pixel errors. Despite the
utmost caution in production of the display, it
cannot be totally ruled out that some of the
pixels might be defective for technological
reasons.
Please understand that such effects cannot be
considered as a unit defect in the sense of the
warranty as long as they are within the limits
specified by the standard.
100 mm
100 mm
100
mm
100
mm
.
20 mm
20mm
20mm
Place the Signal Box not on its side, but
always on its feet.
Make sure that the screen is not exposed to
bright light or sunlight, otherwise it creates
reflections and the brilliance of the screen is
lost.
Clean the glass plate of the screen only with a
soft piece of cloth.
Also clean the other components of the system,
such as the Signal Box and remote control, only
using a soft moist piece of cloth (without any
strong or scouring agents).
