Magnavox 30MW5405/17 CRT Television User Manual



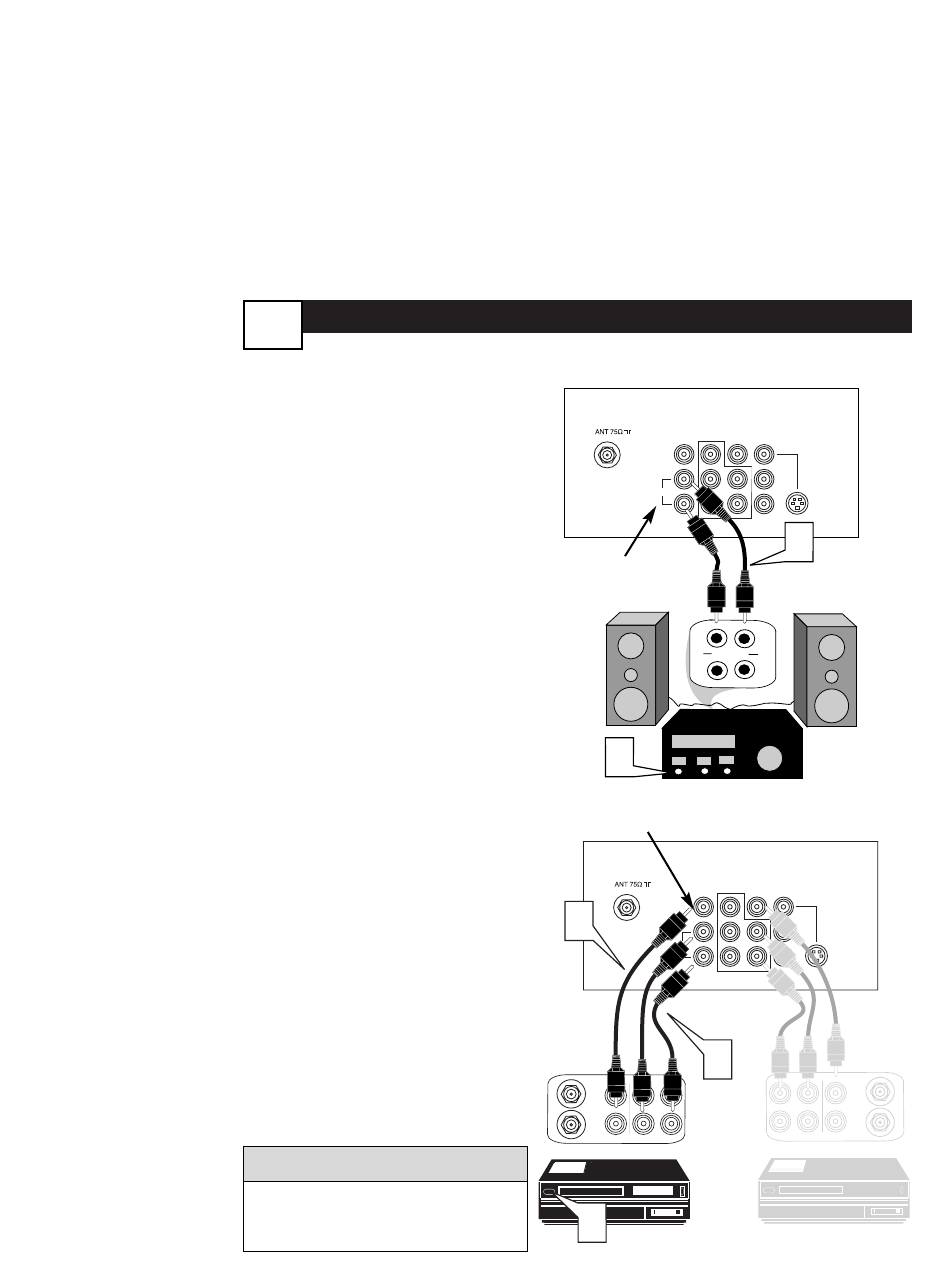

USING THE MONITOR OUT(PUT) JACKS
T
he Monitor (Audio/Video) out jacks are
great for recording with a VCR or used to
connect an external audio system for better
sound reproduction.
For Audio System Connection:
1
Connect one end of the R(ight)
and L(eft) AUDIO (Monitor
Out) jacks on the TV to the R and
L audio input jacks on your amplifi-
er or sound system. Set the audio
system’s volume to a normal listen-
ing level.
2
Turn the TV and audio system
ON.You can now adjust the sound
level coming from the audio system
with the VOLUME (+) or (–) button
on the TV or remote control.
For Second VCR
Connection/Recorder:
NOTE: Refer to panel 4 for the proper
hookup of the first VCR.Follow the
instructions on how to tune to the AV1
channel to view a pre-recorded tape.
The following steps allow you to
connect a second VCR to record the
program while you’re watching it.
3
Connect one end of the yellow
Video Cable to the Monitor out
VIDEO plug. Connect the other
end to the VIDEOIN plug on the
second VCR.
4
Connect one end of the red
and white Audio cable from the
Monitor out AUDIO L and R
plugs on the TV to the AUDIO IN
plugs on the VCR.
5
Turn the Second VCR ON,
insert a VHS tape and it’s ready to
record what’s being viewed on the
TV screen.
L/Mono
Monitor out
VIDEO
S-VIDEO
AV1 in
Y
Pb
Pr
AV2 in
AUDIO
R
COMPONENT VIDEO INPUT
AUX/TV INPUT
PHONO INPUT
R
L
1
2
Jack Panel
Located on the back of the TV
Audio Cables
(Red & White)
Audio System
with Audio Inputs
AV OUT
AUDIOL(eft) and R(ight)
L/Mono
Monitor out
VIDEO
S-VIDEO
AV1 in
Y
Pb
Pr
AV2 in
AUDIO
R
COMPONENT VIDEO INPUT
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
IN
IN
OUTOUT
LR
ANTENNA
OUT
ANTENNA
IN
VIDEO
AUDIO
IN
IN
OUT
OUT
R
L
3
4
5
Jack Panel
Located on the back of the TV
AudioCables
(Red & White)
First VCR (accessory device)
(Hookup from Panel 4)
Monitor OUT
VIDEO &AUDIO
L(eft) and R(ight)
Second VCR
Video Cable
(Yellow)
Audio and video cables are not sup-
plied with the TV, but are available
from Magnavox or electronics retailers.
HELPFUL HINT
7
