USING THE SIDE AUDIO / VIDEO INPUTS
A
udio and Video Side Inputs are avail-
able for a quick connection of a VCR,to
playback video from a camera or attach a
gaming device. Use the AV button on the
remote control to tune these inputs.
1
Connect the video (yellow)
cable from the Video output on
the Camera (or accessory device)
to the Video (yellow) Input locat-
ed on the SIDE of the TV.
For S-Video Devices: Connect
one end of the S-VIDEO CABLE
to the S-VIDEO jack on the SIDE
of the TV and the other end to
the S-VIDEO out jack on the
Camera.
2
For Stereo Devices: Connect
the audio cable (red and white)
from the Audio Left and Right
Outputs on the Camera to the
Audio L and R (white and red)
jack on the SIDE of the television.
For Mono Devices: Connect
one end of the audio cable from
the Audio Out jack on the device
to the Audio L (white) jack on the
SIDE of the television.
3
Turn the TV and the accessory
device ON.
4
Press the CH + or CH- buttons
to set the TV to its SIDE chan-
nel. (Go to your lowest channel,
for example channel 1,then change
channels down to find the correct
source channel.)
5
Press the PLAY 3 button on
the accessory device to view play-
back, or to access the accessory
device (camera, gaming unit, etc.).
VIDEO
AUDIO
L
R
S-VIDEO
VIDEOAUDIO
RIGHT LEFT
1
2
123
POWER
CH
CH
VOL
VOL
STATUS
EXIT
SLEEP
MUTE
SMART
PICTURE SOUND
SURF
A/CH
45
6
789
0
CC
MENU
MAGNAVOX
4
3
5
Jack Panel
located on
the Side
of TV

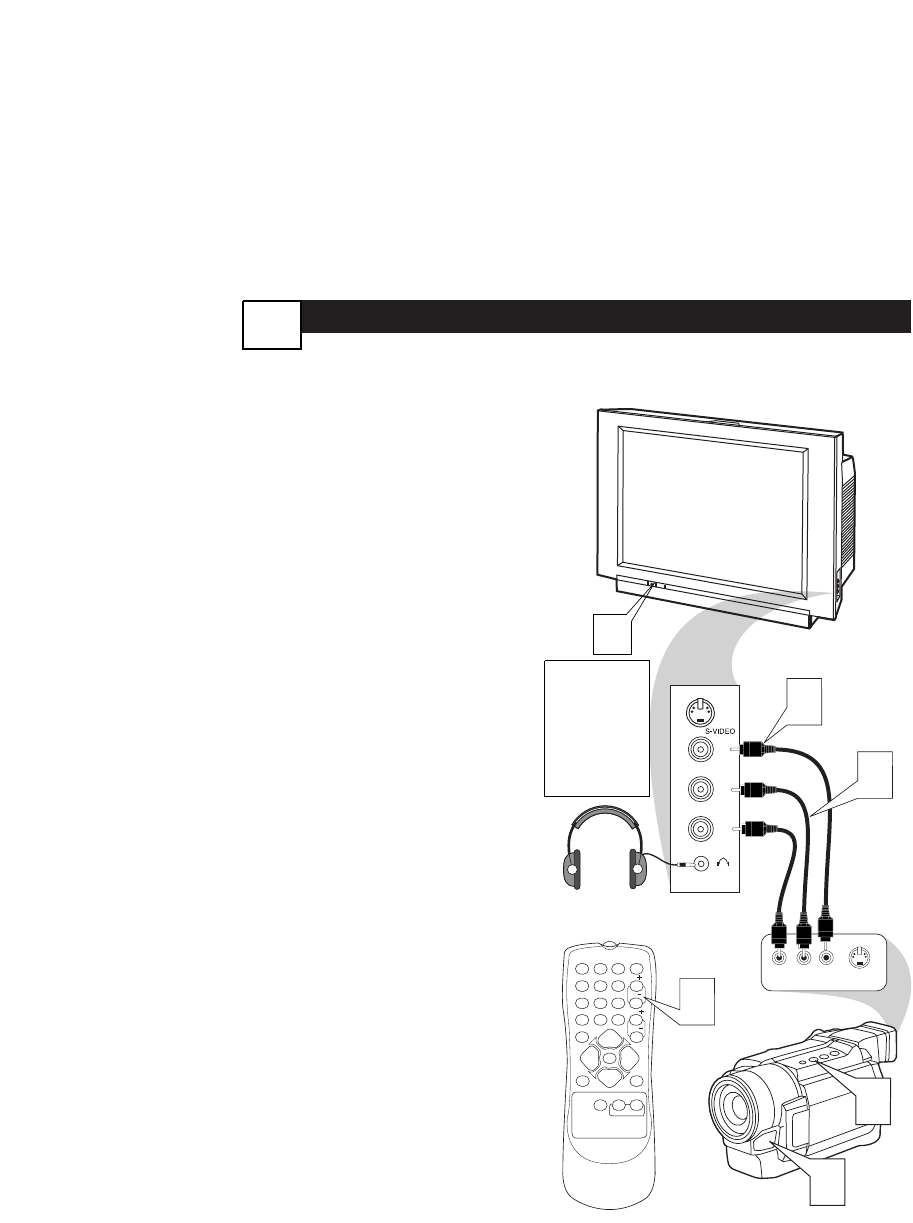

Side A/V Input Connection:
Video Cable
(yellow)
Audio Cables
(red & white)
Optional
Headphones
When head-
phones are
used the
sound coming
from the TV
speakers will
be muted.
