CHAPTER 5 SYSTEM CONFIGURATION
(1) System configuration using I/O module

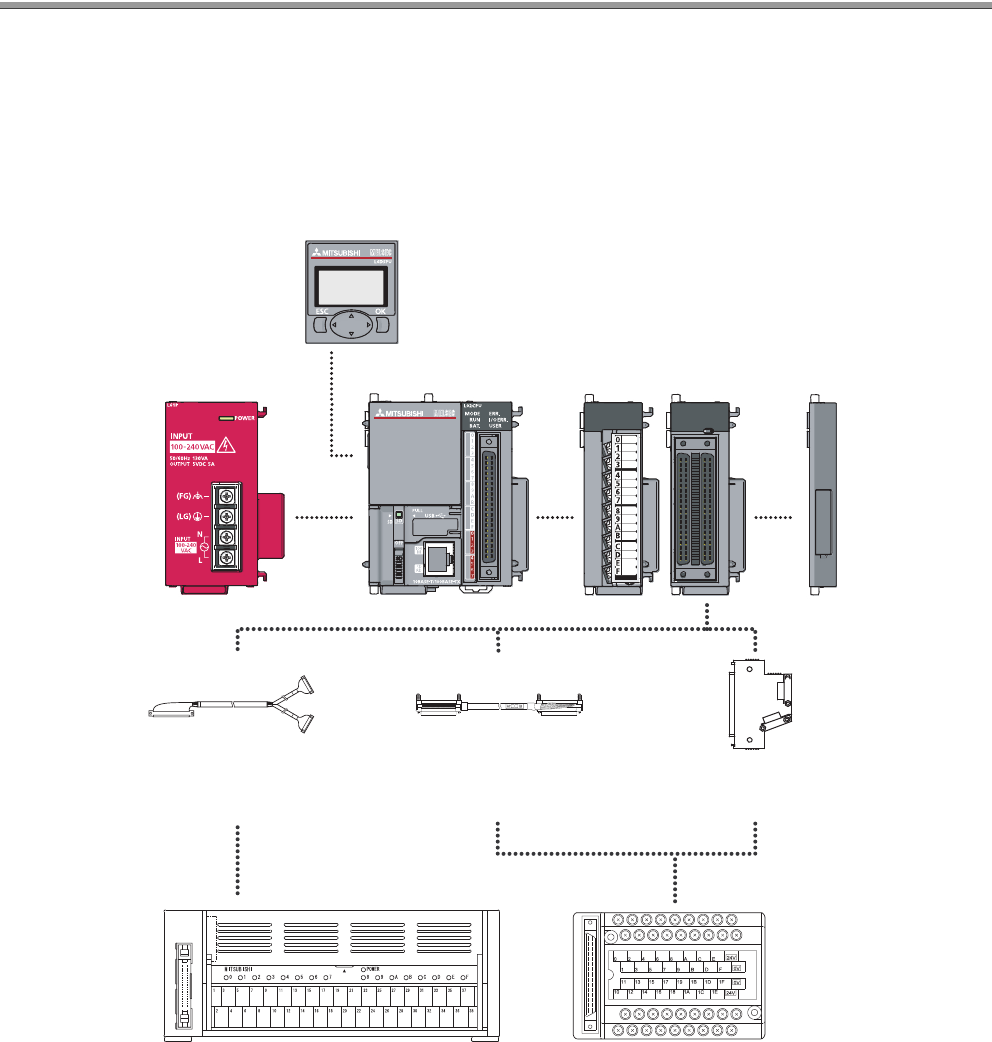

An example of overall system configuration using MELSEC-L series I/O modules is shown below.
(a) Mounting to a CPU module
Power supply module CPU module
Display unit
(optional)
I/O module
Connector/terminal block converter module
(optional)
END cover
Dedicated cable with connector
(relay terminal module)
(optional)
Relay terminal module
(optional)
Dedicated cable with connector
(connector/terminal block converter module)
(optional)
Connector
