PREPARATION FOR USE

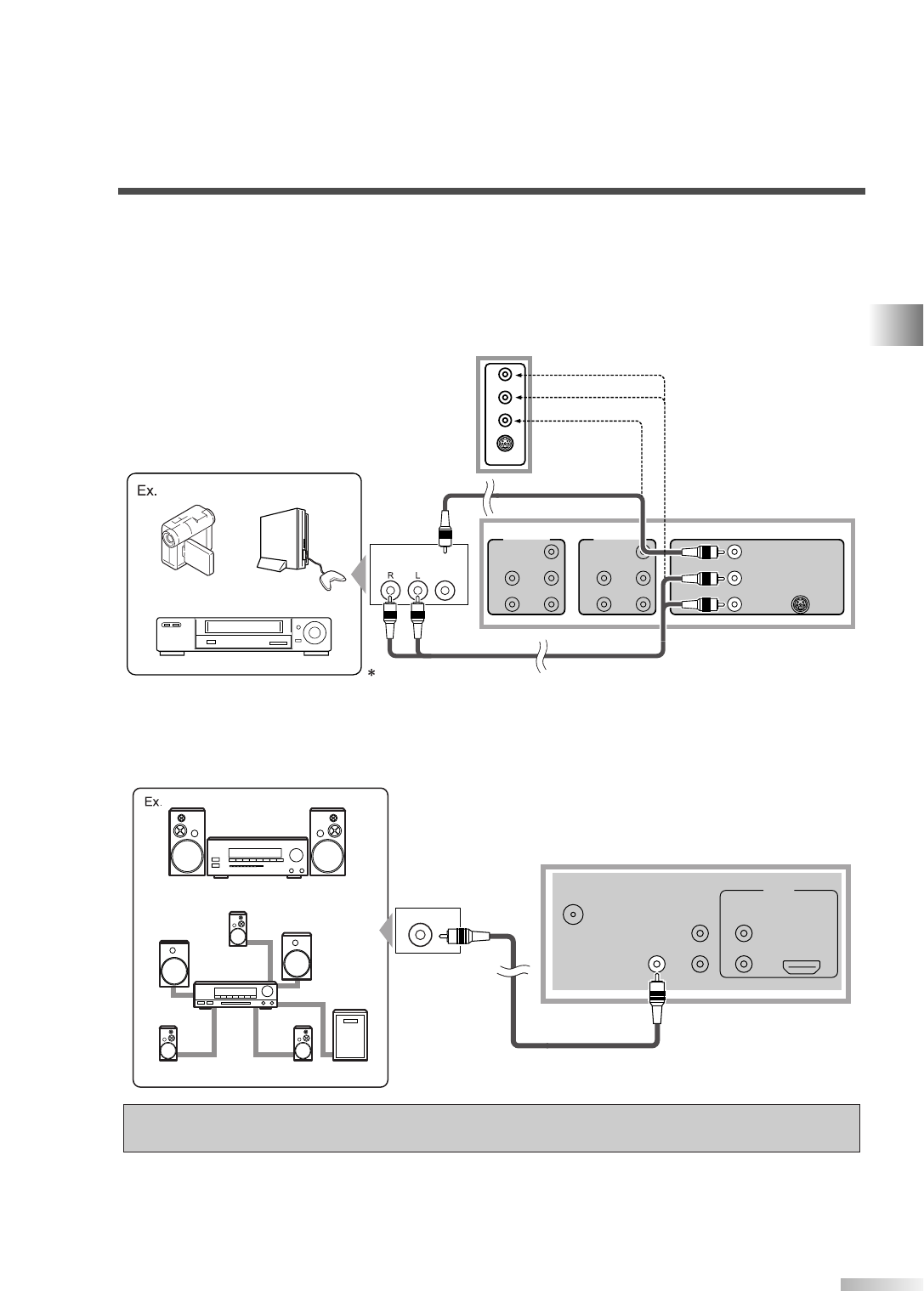

[ANALOG AUDIO/VIDEO CONNECTION]
1) This is the general method to connect this TV to video devices with the video and audio output jacks, such
as VCR, Camcorder, Video Game, etc..
When the audio jack of video devices is monaural, connect this TV to the Audio L jack.
If you connect video output jack to VIDEO1 input jack, connect an audio cable to AUDIO L/R jacks of VIDEO1.
If you connect video output jack to VIDEO2 input jack, connect an audio cable to AUDIO L/R jacks of VIDEO2.
[DIGITAL AUDIO OUTPUT CONNECTION]
1) If you connect this TV to the digital-supported audio device, you can enjoy multi-channel audio like 5.1ch
digital broadcasting sound.
Use the Digital Audio Coaxial cable (commercially available) for connection.
Manufactured under license from Dolby Laboratories.“Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
ANT. IN
AUDIO OUT AUDIO
HDMI IN
L
R
L
R
DIGITAL
AUDIO OUT
(COAXIAL)
HDMI
COAXIAL
Rear of this TV
MD deck, DAT deck etc.
Dolby Digital decoder
To coaxial digital
audio input jack
To DIGITAL AUDIO
OUTPUT jack
COMPONENT2
Y
Pb
Pr
L
R
AUDIO
Y
Pb
Pr
L
R
AUDIO
L
R
AUDIO
VIDEO1
S-VIDEO1
COMPONENT1
L
R
AUDIO
VIDEO2
S-VIDEO2
AUDIO
OUT
VIDEO
OUT
Camcorder
To video
output
jack
To audio output jacks
To AUDIO INPUT jacks
To VIDEO1 INPUT jack
Rear of this TV
Video Game
VCR
Cables not included
Side of this TV
To VIDEO2
INPUT jack
To AUDIO INPUT jacks
