PlasmaWall SP Series Owner’s Operating Manual 27
PRE
L
IMINAR
Y
Analog (Computer) RGB Connections: See Figure 3-7.

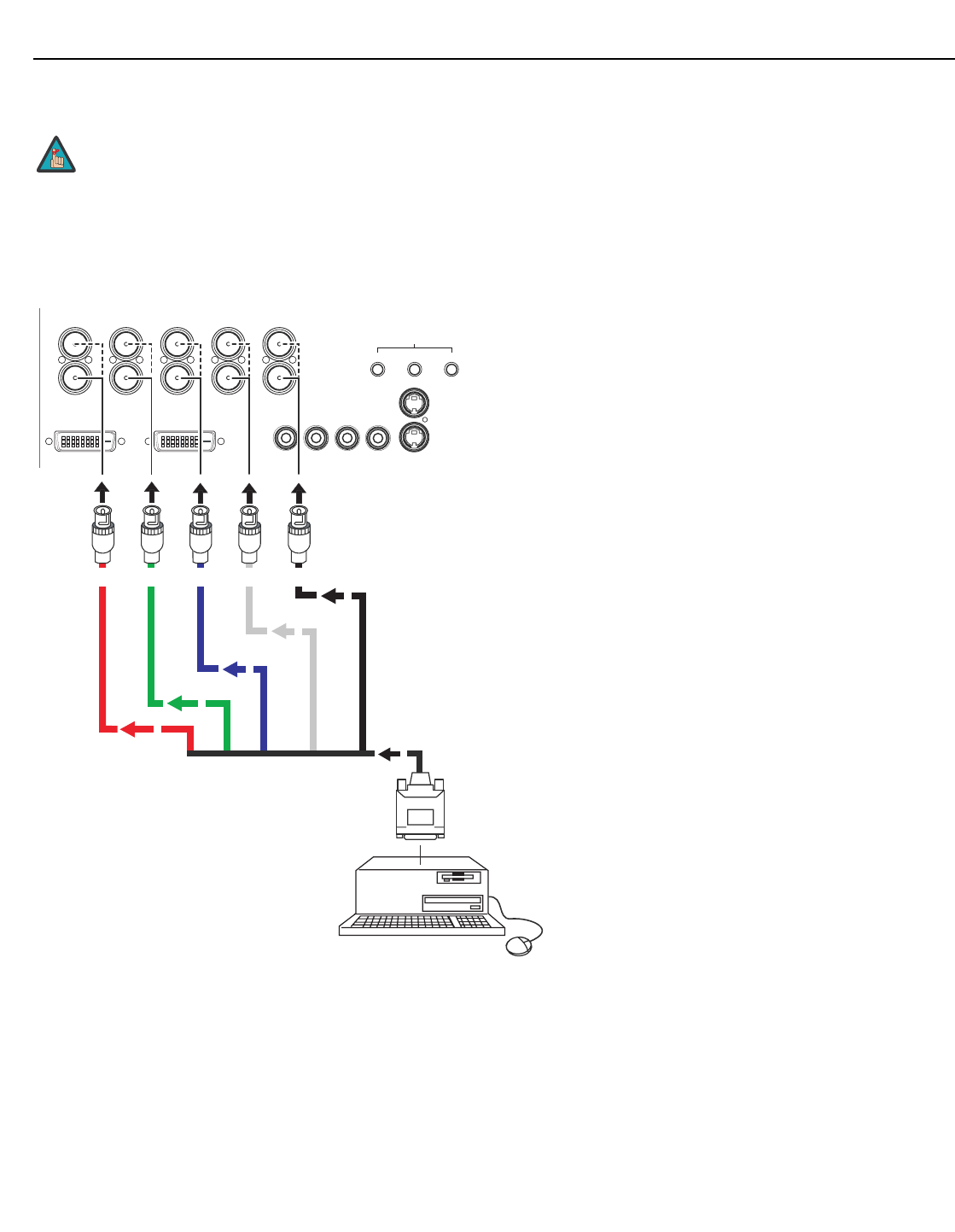

Figure 3-7. Analog RGB Connections
1. Refer to Computer/Video Signal Compatibility on page 64 for
a list of computer signals compatible with the PlasmaWall. Use
with signals other than those listed may cause some functions not
to work.
2. Some Macintosh computers may require a Macintosh video
adapter. Contact your nearest authorized service center or dealer.
Note
DVI 1
HD1
HD2
G/Y
INPUTS
HVR/Pr B/Pb
G/Y H VR/Pr B/Pb
DVI 2
Component Video
Pb Pr
Y Video S-Video 2
S-Video 1
123
TRIGGERS
Personal Computer
Red Green Blue Horiz Vert
