English - 7

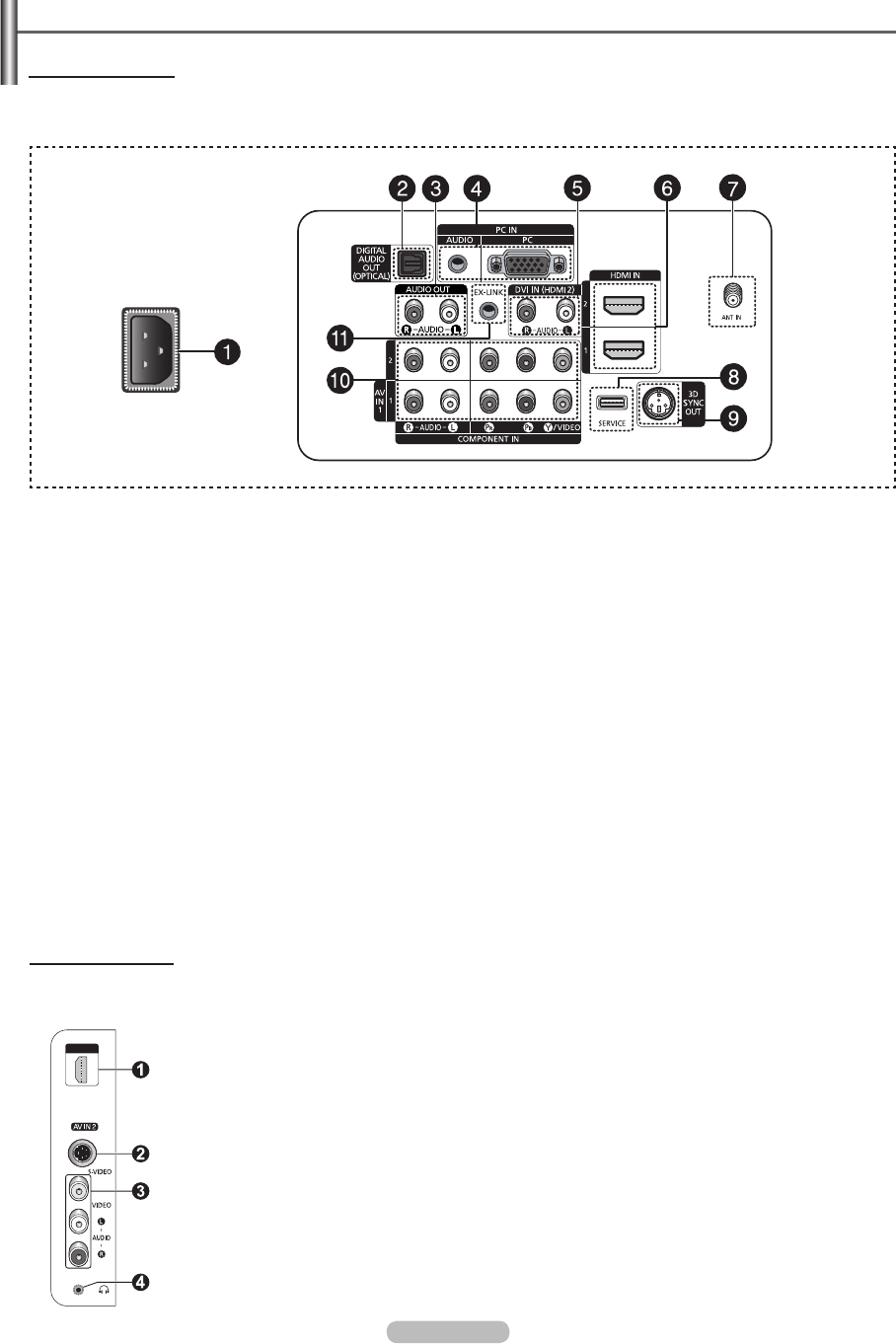

Viewing the Connection Panel
Rear Panel Jacks
Use the rear panel jacks to connect A/V components that will be connected continuously, such as VCR or DVD players. For
more information on connecting equipment, see pages 9-15. The product color and shape may vary depending on the model.
1
POWER IN
Connect the supplied power cord.
2
DIGITAL AUDIO OUT (OPTICAL)
Connect to a Digital Audio component.
3
AUDIO OUT (R/L)
Audio outputs to external devices.
4
PC IN[PC]/[AUDIO]
Connect to the video and audio output jack on your PC.
5
DVI IN (HDMI 2) (AUDIO-R/L)
Connect to the DVI audio output jack of an external device.
6
HDMI IN 1, 2
Connect to the HDMI jack of a device with an HDMI
output. (HDMI2 supports HDMI-DVI IN and connection
from a PC.)
- This input can also be used as a DVI connection with
separate analog audio inputs. An optional HDMI/DVI
cable will be necessary to make this connection.
-
When using an optional HDMI/DVI adapter, the DVI
analog audio inputs on your TV allow you to receive left
and right audio from your DVI device.
7
ANT IN
Uses a 75Ω Coaxial connector for an Air/Cable
Network.
8
SERVICE
For service only.
9
3D SYNC OUT
Connect to 3D IR Emitter.
0
COMPONENT IN 1, 2 / AV IN 1
Connects Component video/audio.
The COMPONENT IN 1 jack is also used as the AV IN 1
jack.
- Connect the video cable to the COMPONENT IN 1 [Y/
VIDEO] jack and the audio cable to the COMPONENT IN
[R-AUDIO-L] jacks.
!
EX-LINK
Connect this to the jack on the optional wall mount
bracket. This will allow you to adjust the TV viewing
angle using your remote control.
Side Panel Jacks
Use the right side panel jacks to connect a component that is used only occasionally, such as a camcorder or video game.
The product color and shape may vary depending on the model.
1
HDMI IN 3
Connect to the HDMI jack of a device with HDMI output.
2
S-VIDEO (AV IN 2)
S-Video input for external devices with an S-Video output.
3
AV IN 2
Video and audio inputs for external devices.
4
HEADPHONE
You can connect a set of headphones if you wish to watch a television program without
disturbing other people in the room.
HDMI IN 3
