KDL-55W950B
4-531-417-11(1)
11
US
US

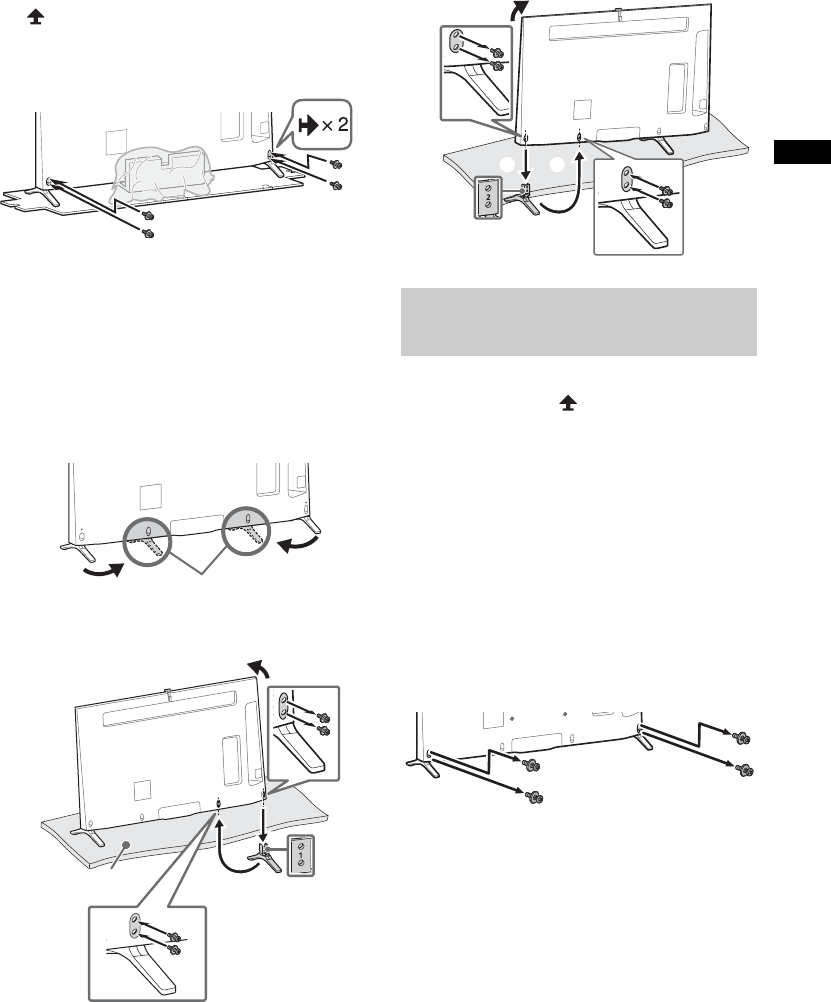

3 Fix the TV to the Table-Top Stand using
the supplied screws. The arrow marks
indicate the location of the screw
holes used for securing the Table-Top
Stand.
~
• If using an electric screwdriver, set the
torque at approximately 1.5 N·m
{15 kgf·cm}.
x Alternative (middle position)
You can change the Table-Top Stand from
the edge to the middle position by referring
to the instructions below.
1
2
To detach the Table-Top Stand from the TV,
remove the screws fixed in step 3 (edge
position).
~
• Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
• Be sure the TV is vertical before turning on.
To avoid uneven picture uniformity do not
power on the TV with the LCD panel facing
down.
• When attaching the Table-Top Stand again,
be sure to fasten the screws (previously
removed) to the original holes on the rear of
the TV.
Middle position
1
2
3
Thick cushion
Detaching the Table-Top
Stand from the TV
1
3
2
