Connections
AV
BITSTREAM/PCM
L
COAXIAL
OPTICAL
ANALOG
R
VIDEO
YP
B
P
R
S
AUDIO OUT
VIDEO OUT
Notes
• Refer to the owner’s manual of the connected equipment as well.
• When you connect the DVD video player to other equipment, be sure to turn off the power and unplug all of the equipment
from the wall outlet before making any connections.
• If you place the DVD video player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the
DVD video player away from the tuner and radio.
• The output sound of the DVD video player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate
listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.
• Turn off the amplifier before you connect or disconnect the DVD video player’s power cord. If you leave the amplifier power
on, the speakers may be damaged.
• If your television set has one audio input, connect the DVD video player to a Y cable adapter (not supplied) and then connect
to your TV.

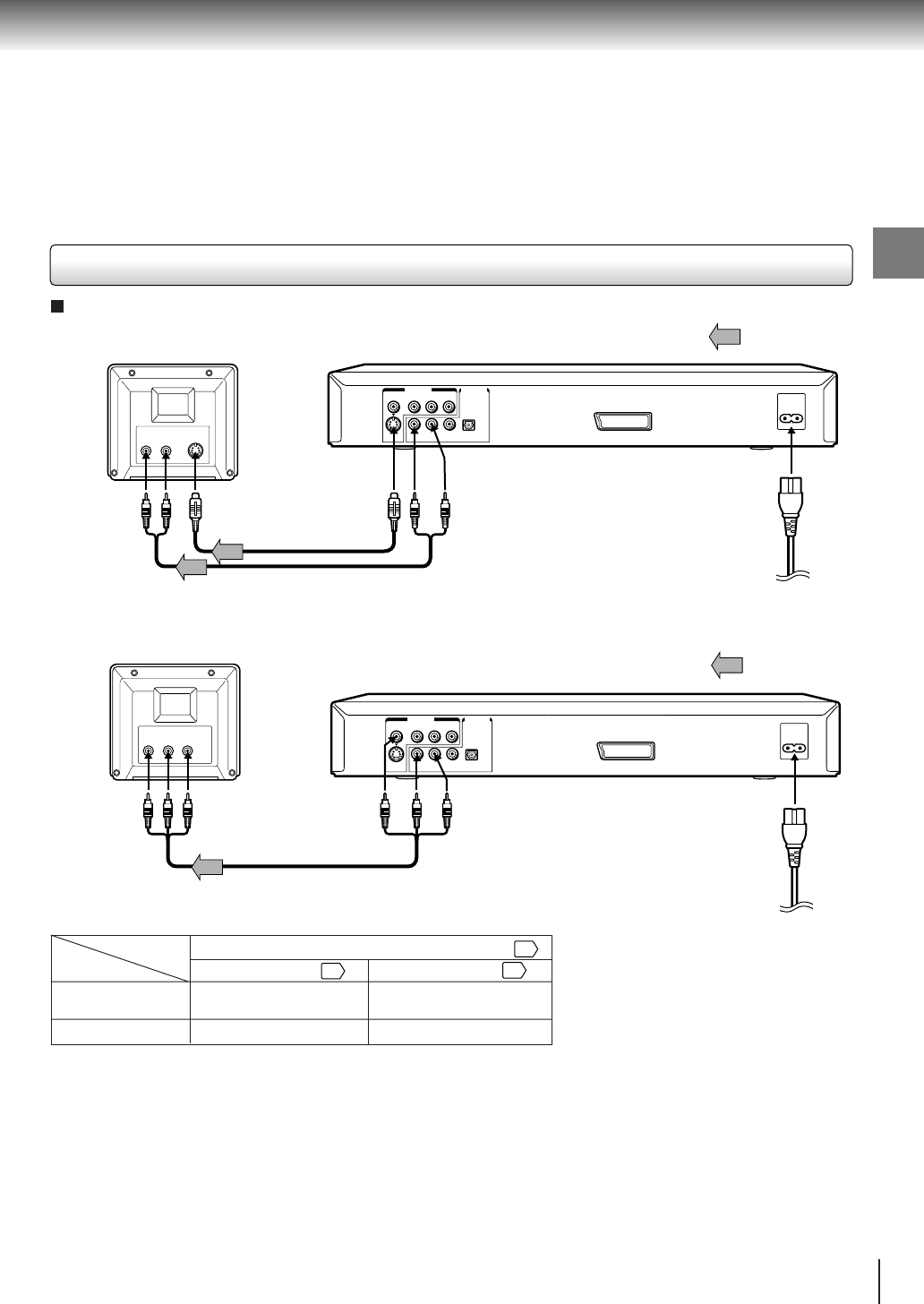

Connecting to a TV (Using the phono type jacks)
• Make the following setting.
“Analog 2ch”
TV
TV equipped with an
S video input
Normal TV
See “Customizing the Function Settings” beginning from
48
.
“Video Out Select”
50
“Audio Out Select”
51
“Analog 2ch”
“S Video”
No need to set.
AV
BITSTREAM/PCM
L
COAXIAL
OPTICAL
ANALOG
R
VIDEO
YP
BPR
S
AUDIO OUT
VIDEO OUT
Normal TV
TV equipped with
an S video input
Select the connection type depending on the TV. (TV equipped with an S video input / Normal TV)
To wall outlet
Signal flow
Signal flow
To ANALOG AUDIO OUT
(R:red, L:white)
To S VIDEO OUT
To VIDEO OUT
(yellow)
To ANALOG AUDIO OUT
(R:red, L:white)
S video cable
Audio cable
Audio/video cable
To audio
input
To video input
(yellow)
To S video
input
To audio
input
On-screen
display
To wall outlet
