RS-232RS-422 INTERFACE CONVERTER
6
2. Introduction
The RS-232RS-422 Interface Converter provides bi-directional synchronous or asynchronous
conversion of all commonly used RS-232 and RS-422 signals. The unit is designed to operate with one
port configured as Data Terminal Equipment (DTE) and the other port as Data Communications
Equipment (DCE). Operation is not recommended with both ports configured either DCE or both DTE,
when operating in synchronous mode.
The unit has two user-selectable configurations: one for connecting RS-422 modem equipment to RS-232
terminal equipment (DCE to DTE) and one for connecting RS-232 modem equipment to RS-422
terminal equipment (DCE to DTE). Both configurations allow bi-directional data transfer. Typical
applications are shown in Figure 2-1.
Things to consider when operating the converter:

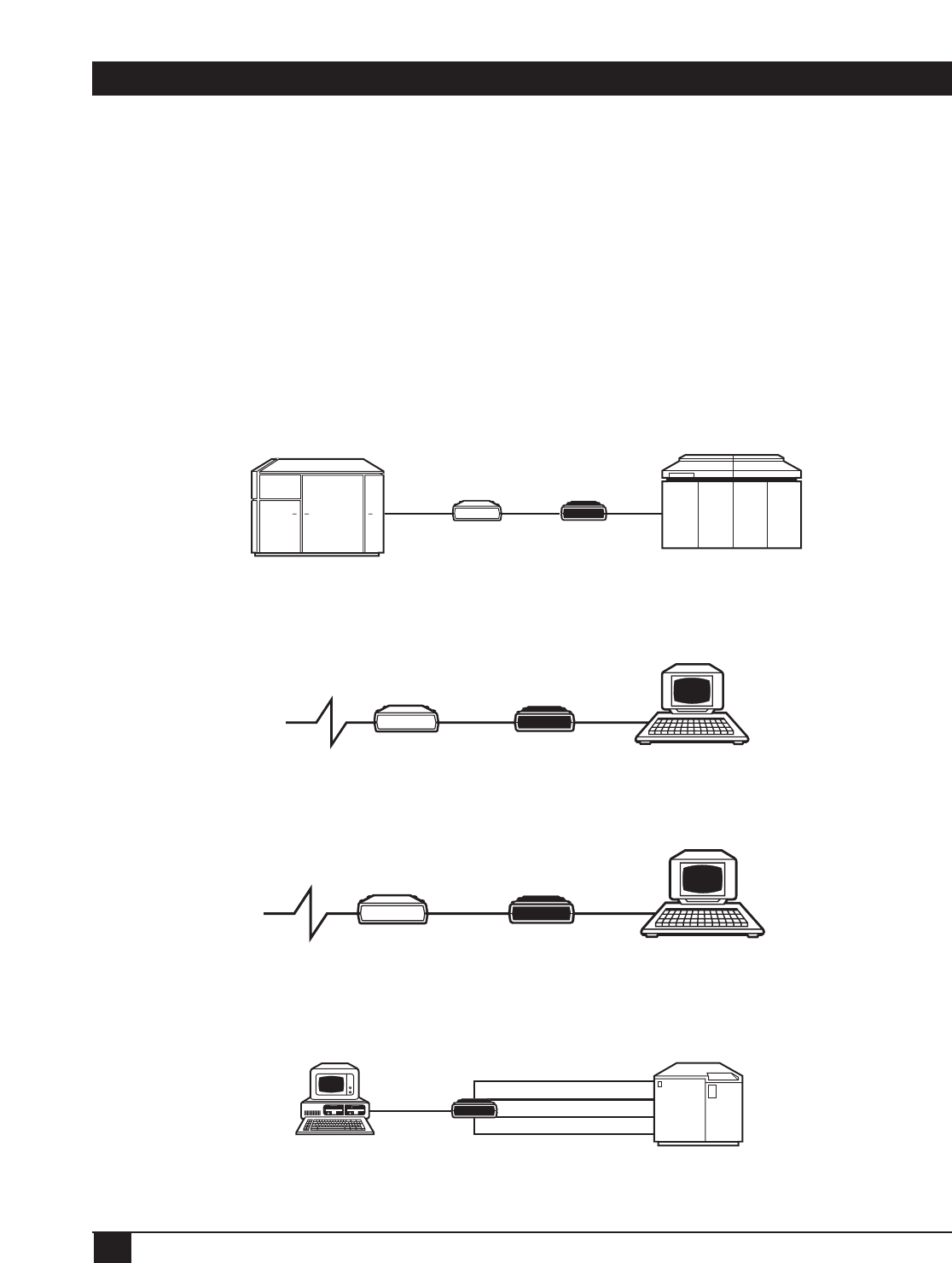

Figure 2-1. Various Applications Showing DCE/DTE Settings.
4-WIRE CABLE
DIP-SHUNT
SETTINGS:
INTERFACE
CONVERTER
PC
INDUSTRIAL
CONTROLLER
T-
T+
R-
R+
RS-232
DCE
RS-422
DTE
6 (R-)
24 (R+)
4 (T-)
22 (T+)
DIP-SHUNT SETTINGS:
INTERFACE
CONVERTER
RS-422
TERMINAL
RS-232
MODEM
RS-232
DTE
RS-422
DCE
DIP-SHUNT SETTINGS:
INTERFACE
CONVERTER
RS-422
MODEM
RS-232
TERMINAL
RS-232
DTE
RS-422
DCE
SYNC
RS-232
COMPUTER
MODEM
ELIMINATOR
INTERFACE
CONVERTER
SYNC
RS-422
COMPUTER
DIP-SHUNT SETTINGS:
RS-232
DTE
RS-422
DCE
(RS-232)
RS-232
RS-422
