ELECTRICAL CHARACTERISTICS CURVES
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
0 5 10 15 20 25 30
LOAD CURRENT (A)
OUTPUT VOLTAGE (V)
Vin=48V

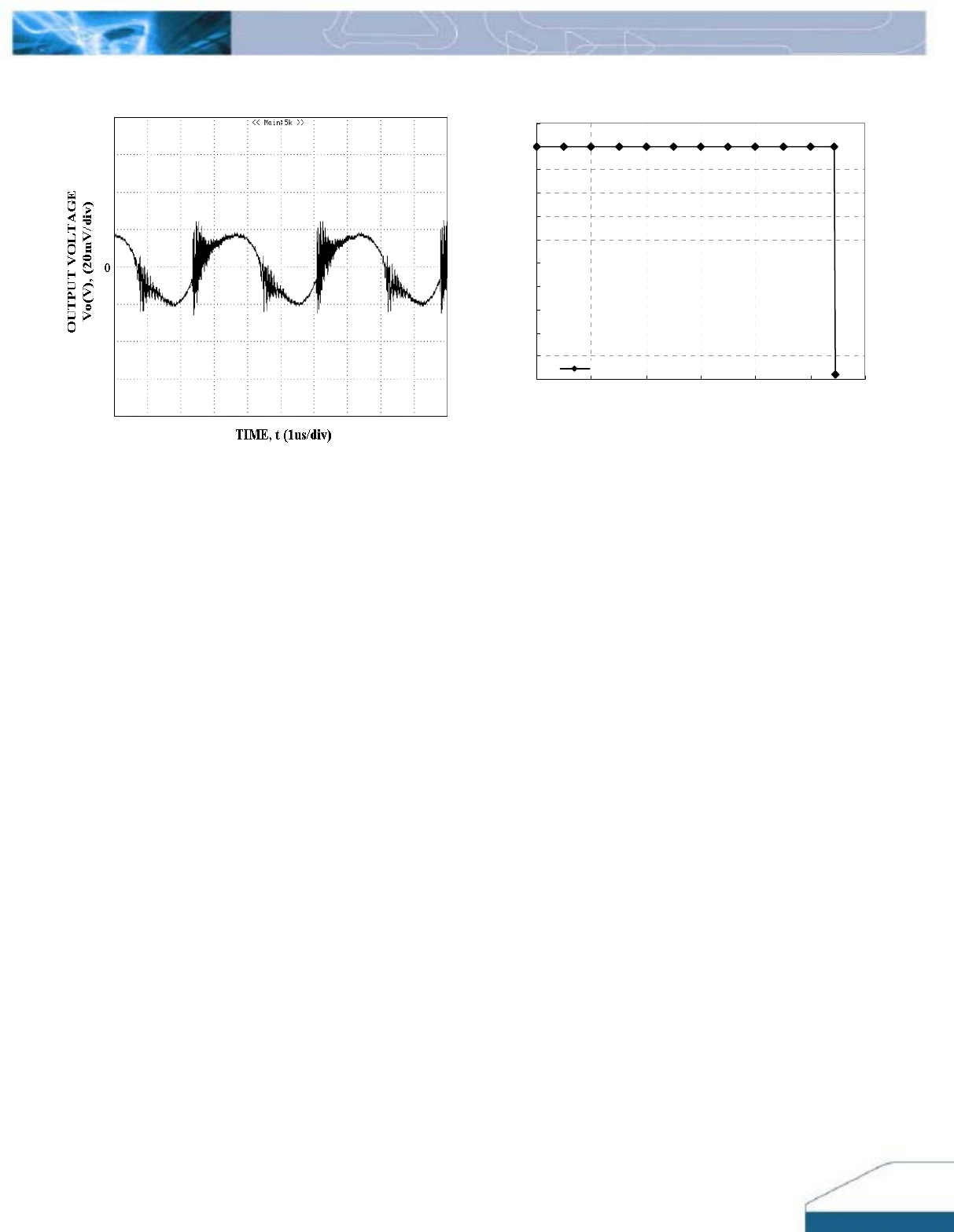

Figure 14: Output voltage ripple at nominal input voltage
(Vin=48V) and rated load current (Io=20A) (20 mV/div). Load
capacitance: 1µF ceramic capacitor and 10µF tantalum
capacitor. Bandwidth: 20 MHz. (See Figure 12) Scope
measurement should be made using a BNC cable (length
shorter than 20 inches). Position the load between 51 mm and
76 mm (2 inches and 3 inches) from the module.
Figure 15: Output voltage vs. load current showing typical
current limit curves and converter shutdown points.
7
