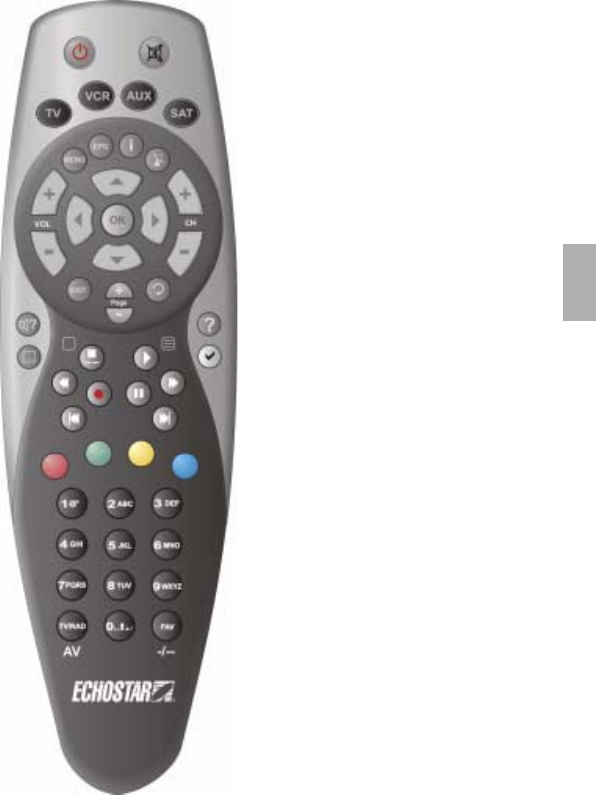

1.3. THE REMOTE CONTROL UNIT (RCU)
The EchoStar Quattro is a programmable RCU that also can control your TV, VCR, DVD
and/or Audio set. The EchoStar Quattro requires two AA/R6 alkaline batteries to operate.
■ ON/STANDBY
To switch to standby or on.
■ VCR
To control the VCR.
■ TV
To control the TV.
■ EPG
To view the EPG.
■ MENU
To go to the installation menu.
■ VOL+
To increase the volume.
■ VOL-
To decrease the volume.
■ ARROW CLUSTER
To scroll left, up, right or down.
■ EXIT
To leave a menu or feature.
■ PAGE+
To go one page up.
■ PAGE -
To go one page down.
■ ALT AUDIO
To choose a language.
■ ALT SUBTITLE
To choose a subtitle.
■ STOP
To stop the recording or play
back of an event;
To return to actual time in the
EPG window
■ REWIND
To go to the beginning of an
recorded event fastly.
■ RECORD (press twice)
To record a live program.
■ SKIP BACKWARD
Not used for Sat-mode.
■ GREEN
To select a (favorites) list.
■ RED
To go to another mode.
■ NUMBER KEYS
To enter numerical settings;
To type in a channel number.
■ TV/RAD
To switch to TV or Radio
mode.
■ MUTE
To blank out the volume.
■ AUX
To control the Audio Set or
DVD.
■ SAT
To control the receiver.
■ i
To view the InfoBanner;
To view detailed EPG
information.
■ Satellite Dish
To select another satellite.
■ CH+
To go one channel up.
■ CH-
To go one channel down.
■ OK
To go to the (favorites) lists;
To make a menu selection;
To pull down a selection menu.
■ PREVIOUS
To go to the previous channel;
To access special features.
■ ?
Not used for Sat-mode.
■ V(white)
To edit a list
■ PLAY
To play back a recorded event.
■ FAST FORWARD
To go to the end of an
recorded event fastly.
■ PAUSE
To pause the playback of an
event;
To pause a live program.
■ SKIP FORWARD
Not used for Sat-mode.
■ YELLOW
To group a list;
To select an EPG timer.
■ BLUE
To so rt a l is t;
To zoom in/out the time slot of
the EPG view window.
■ FAV
To go to the favorite list of the
actual mode.
