Installation instructions
9
DX-TVM112

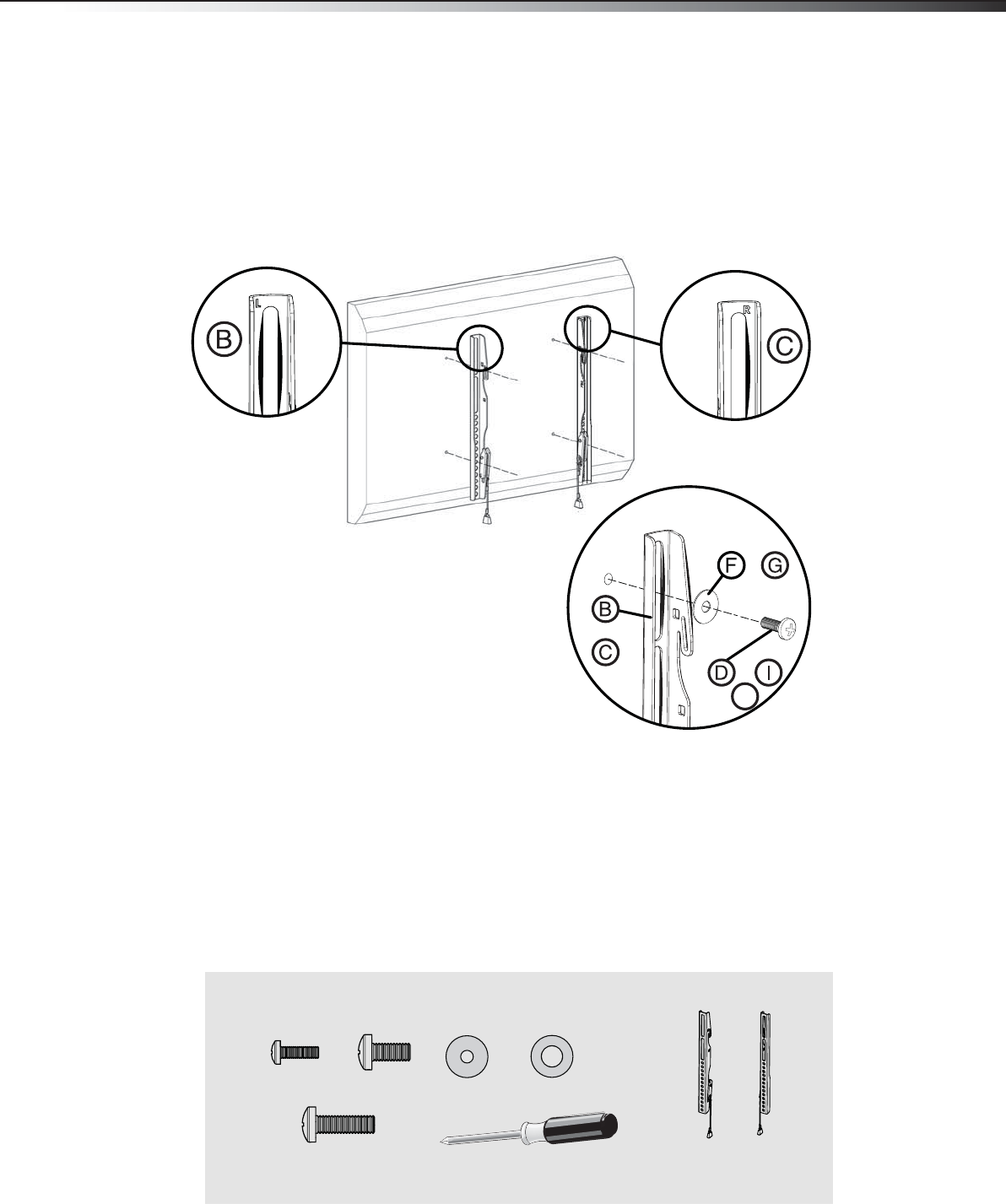

STEP 5 - Option 1: Attaching the mounting hardware to TVs with a flat back
1 Align the left and right TV brackets (B and C) with the screw holes on the back of the TV.
2 Install washers (F or G), and screws (D, I, or J) into the holes in the back of the TV.
NOTE: If the hole pattern on your TV is 75 mm x 75 mm, do not use the washers (F or G).
3 Tighten the screws until they are snug against the TV brackets. Do not over tighten.
You’ll need
or
or
or
J
or
F (4)
D (4)
Phillips screwdriver
Screws
Washers
B and C TV brackets
or
or
I (4)
G (4)
or
J (4)
