Middle Voltage at the 50% level of the base to the top
Amplitude Amplitude = Base – Top, measured over the entire waveform
Overshoot
Negative overshoot = (Base – Min)/Amp x100%, measured over
the entire waveform
Preshoot
Postitive overshoot = (Max – Top)/Amp x100%, measured over
the entire waveform
RMS The Root Mean Square voltage over the entire waveform
Off Do not take a measurement.
OK (F5)
Press to engage Measurement after Source and Type is
selected.

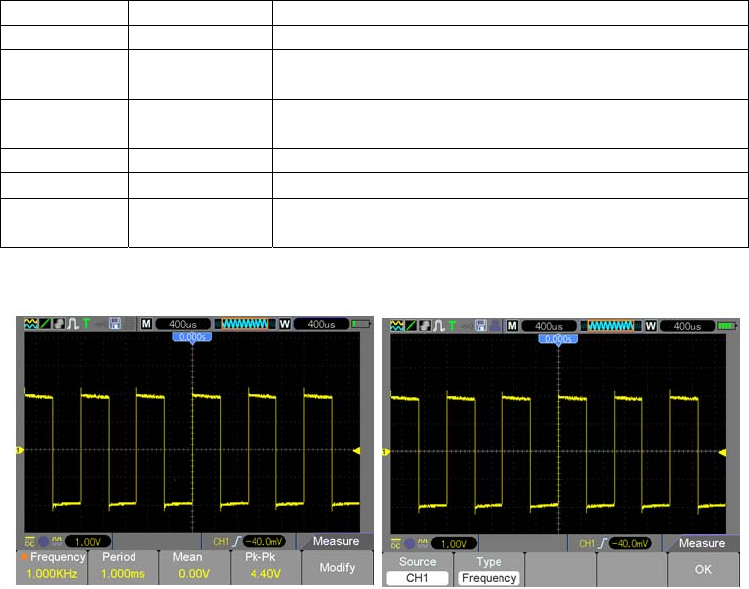

The readouts in larger font size on the menu are the results of the corresponding measurements
only.
Taking Measurements: For a single waveform (or a waveform divided among multiple waveforms), up
to 8 automatic measurements can be displayed at a time. The waveform channel must stay in an ‘ON’
(displayed) state to facilitate the measurement. The automatic measurement cannot be performed on
reference or math waveforms, or in XY or Scan mode.
