Install Color Change Control
Module
Location
Install the color change control module (101) near the
fluid station. The module is approved for use in a haz-
ardous location. Also see your system installation man-
ual. See F
IG. 1.
Mounting
1. See Dimensions, page 24.
2. Ensure that the wall and mounting hardware are
strong enough to support the weight of the equip-
ment, fluid, hoses, and stress caused during opera-
tion.
3. Using the equipment as a template, mark the
mounting holes on the wall at a convenient height
for the operator and so equipment is easily accessi-
ble for maintenance.
4. Drill mounting holes in the wall. Install anchors as
needed.
5. Bolt equipment securely.
• To avoid electric shock, turn off equipment power
and shut off power at main circuit breaker before
installing.
• All electrical wiring must be done by a qualified
electrician and comply with all local codes and
regulations.
• Do not substitute system components as this
may impair intrinsic safety.
To reduce the risk of serious injury, including fluid
injection, relieve pressure before installing the kit.
Follow the Pressure Relief Procedure in the
ProMix 2KS Operation or Service manual.

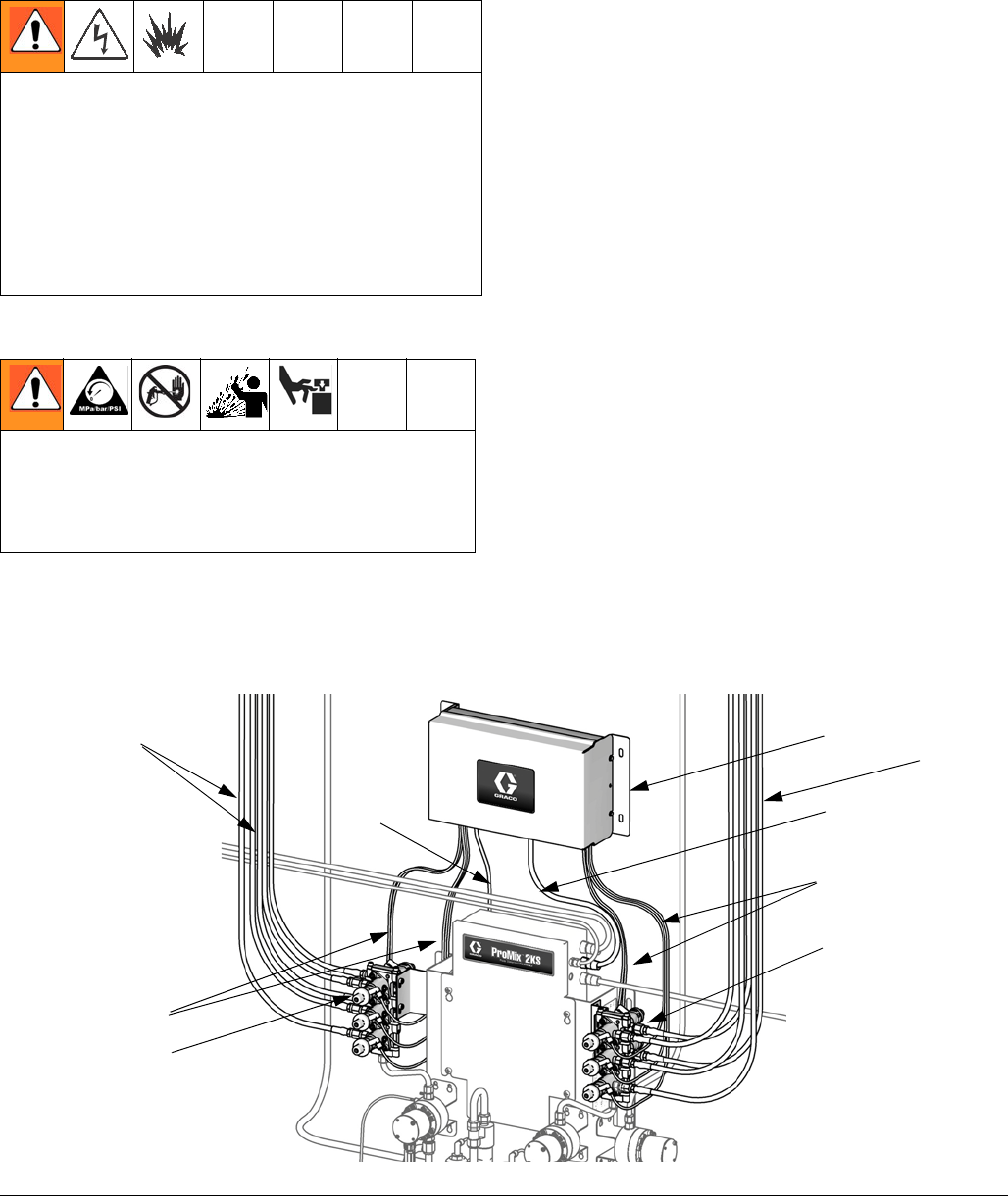

FIG. 1: Control Module Installation
TI12828b
101
11
SV
EC
11
SV
13
FSL
FSL
