Speed/Duplex: allow set Auto- negotiation,100Mbps-full/half duplex,10Mbps-full/half
duplex
Flow Control: allow enable or disable flow control on each port
Back Pressure: allow enable or disable Back Pressure on each port
VLAN Tagged: allow enable or disable VLAN Tagged on each port
Default VLAN ID: allow set VLAN ID 1~4095 on each port
Note: set and display the information of each port
Quit: back to previous menu

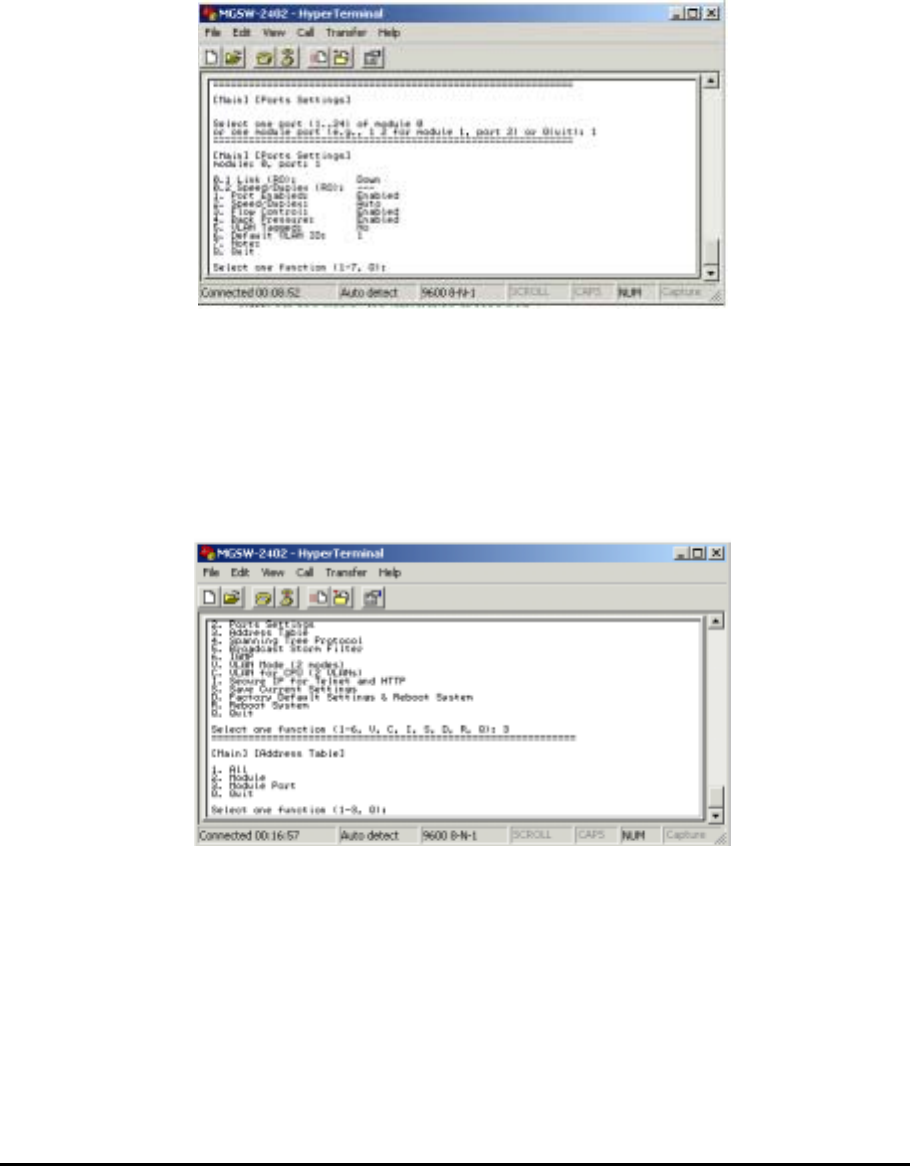

Figure 4-3: Port Settings
4.2.3. Address Table
This menu contains four items for MAC address record on each working port
All
Module
Module Port
Quit
Figure 4-4: Address Table
4.2.4. Spanning Tree Protocol
This menu contains three items to enable or disable STP:
Enable
Disable
Quit
