Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
Install POINT I/O Modules 25
1734-OB2EP Protected Output Module

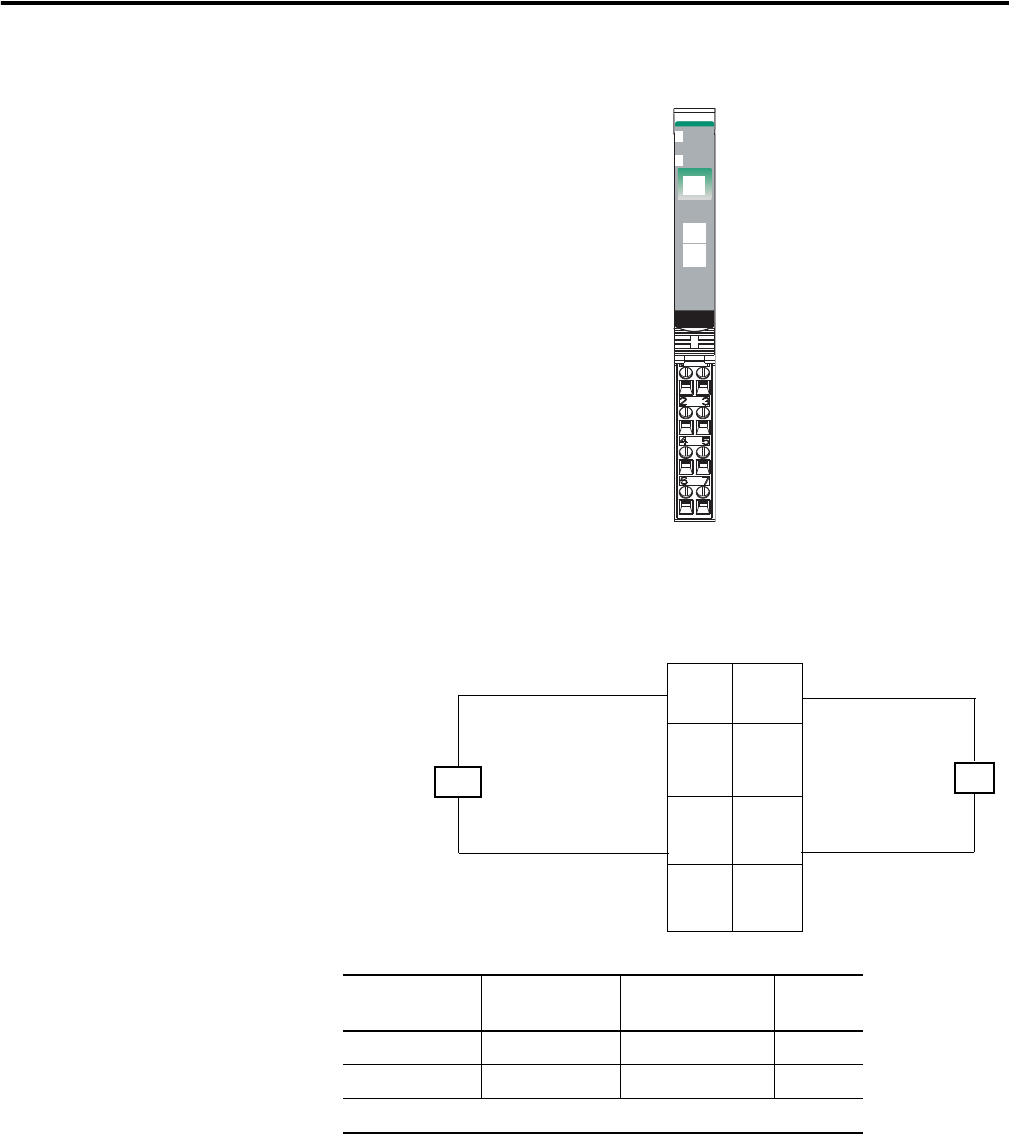

1734-OB2EP DC Protected Output Module Wiring Diagram
Protected
Sourcing
Output
Module
Status
Network
Status
1734
OB2EP
NODE:
0
1
42016
Module Status
Network Status
Status of Output 0
Status of Output 1
Output 0
Connection
Output 0
Connection
Output 1
Connection
Output 1
Connection
C
C
V
V
C = Common
V = Supply
Channel Output
Terminal
Common
Terminal
Power
Channel 0 0, 2 4 6
Channel 1 1, 3 5 7
Module power is supplied from the internal power bus.
V = 12/24V DC, C = Common
Field power is supplied from internal power
bus
Out 0
Out 1
Out 1
Out 0
CC
V
V
0
2
6
4
3
5
7
1
Load
Load
