Rockwell Automation Publication 1734-UM001E-EN-P - July 2013
Troubleshoot with the Indicators 145

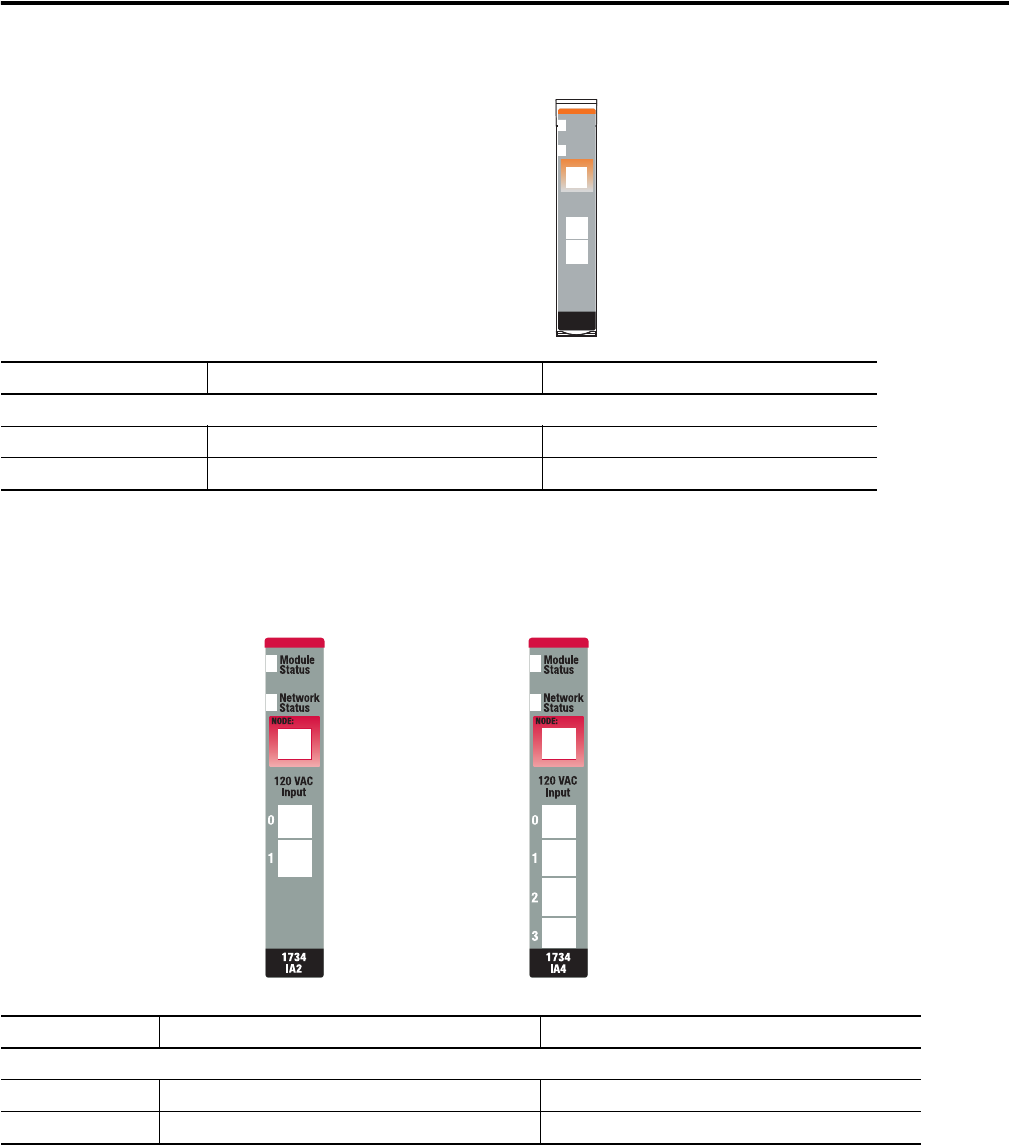

1734-OX2 Relay Output Module
1734-IA2 and 1734-IA4 120V AC Input Module
Module Status
Network Status
Status of Output 0
Status of Output 1
Relay
Output
Module
Status
Network
Status
1734
OX2
NODE:
0
1
41974
Indication Probable Cause Recommended Action
I/O Status
Off Output is off. None.
Yellow Output is on. None.
Indication Probable Cause Recommended Action
I/O Status
Off Input is in the off-state. None.
Yellow Input is in the on-state. None.
Module Status
Network Status
Status of Input 0
Status of Input 1
1734-IA2
46140
Module Status
Network Status
Status of Input 0
Status of Input 1
1734-IA4
Status of Input 2
Status of Input 3
46141
