3.1
Port:
Displays the port number.
Ingress Limit:
Specify whether to enable the Ingress Limit feature.
Ingress Rate:
Specify the limit rate for the ingress packets.
Egress Limit:
Specify whether to enable Egress Limit feature.
Egress Rate:
Specify the limit rate for the egress packets.
The first entry in Figure 3-20 indicates: The Ingress and Egress Limits are enabled for port 1. The
Ingress and
Egress Rates are 1Mbps. That is, the receiving rate for the ingress packets will not exceed
1Mbps, and the transmitting rate for all the egress packets will not exceed 1Mbps.
.6.4 Port Config
On this page, you can configure the basic parameters for the ports.
Choose the menu Network→Switch→Port Config to load the following page.

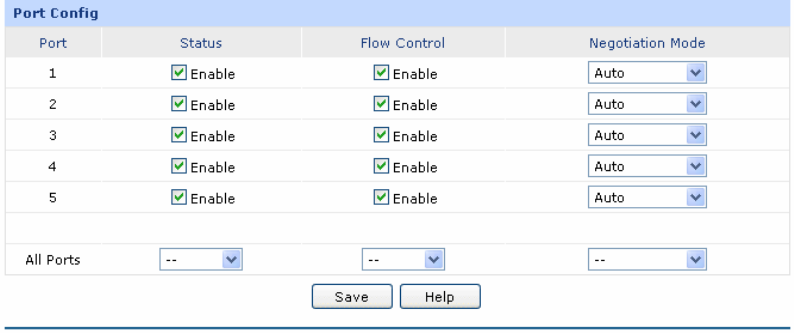

Figure 3-21 Port Config
The following items are displayed on this screen:
Port Config
Status:
Specify whether to enable the port. The packets can be transported via this
port after being enabled.
Flow Control:
Allows you to enable/disable the Flow Control function.
Negotiation Mode:
Select the Negotiation Mode for the port.
All Ports:
Allows you to configure the parameters for all the ports at one time.
