Page 14
724-746-5500 | blackbox.com
Chapter 3: Installation
3.2 IR Extender

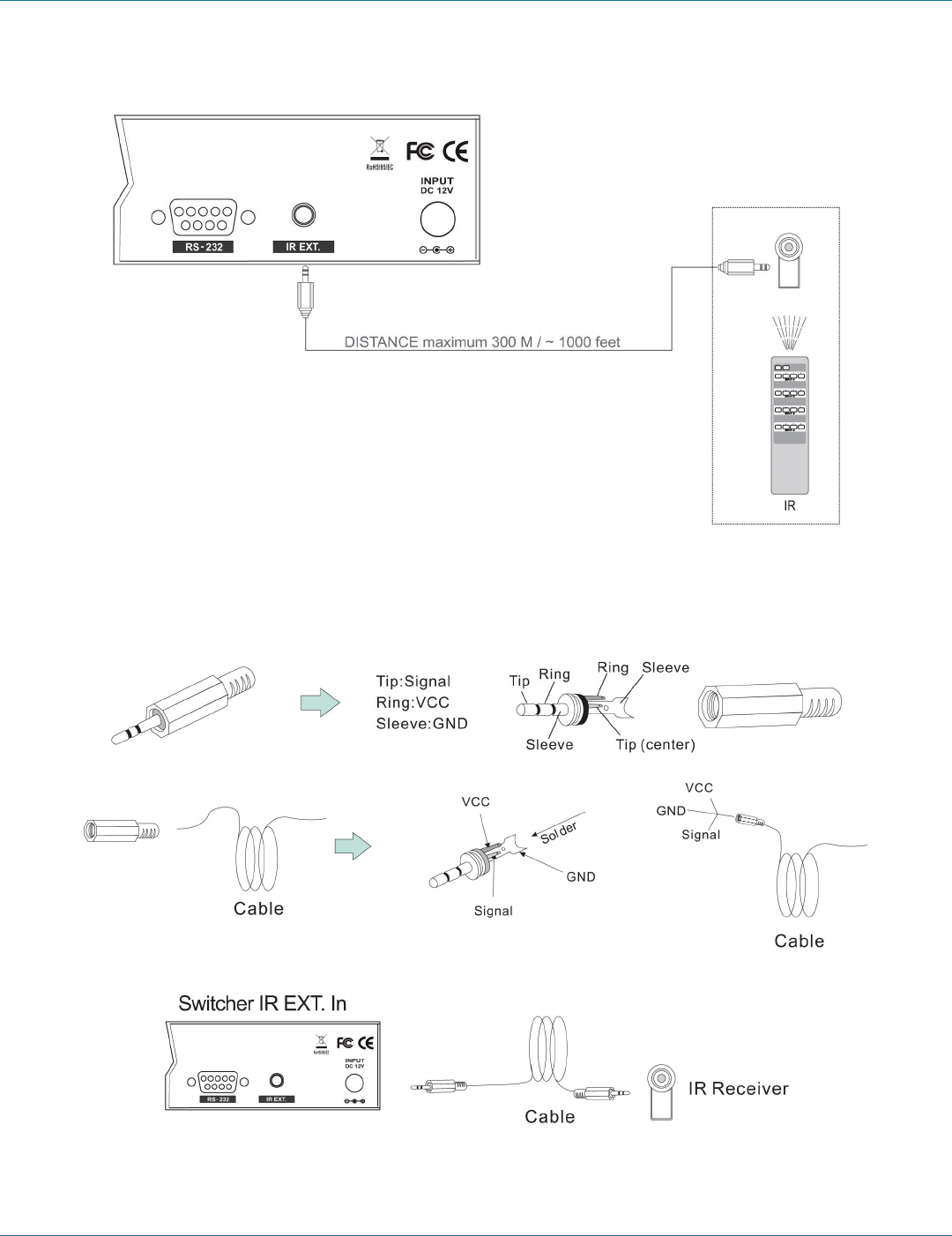

Figure 3-2. IR extender connection.
NOTE: When you plug the external IR extender into the switch, the front-panel IR receiver remains active.
STEP 1
STEP 2 STEP 3
Figure 3-3. How to set up the IR extender components: Steps 1-3.
