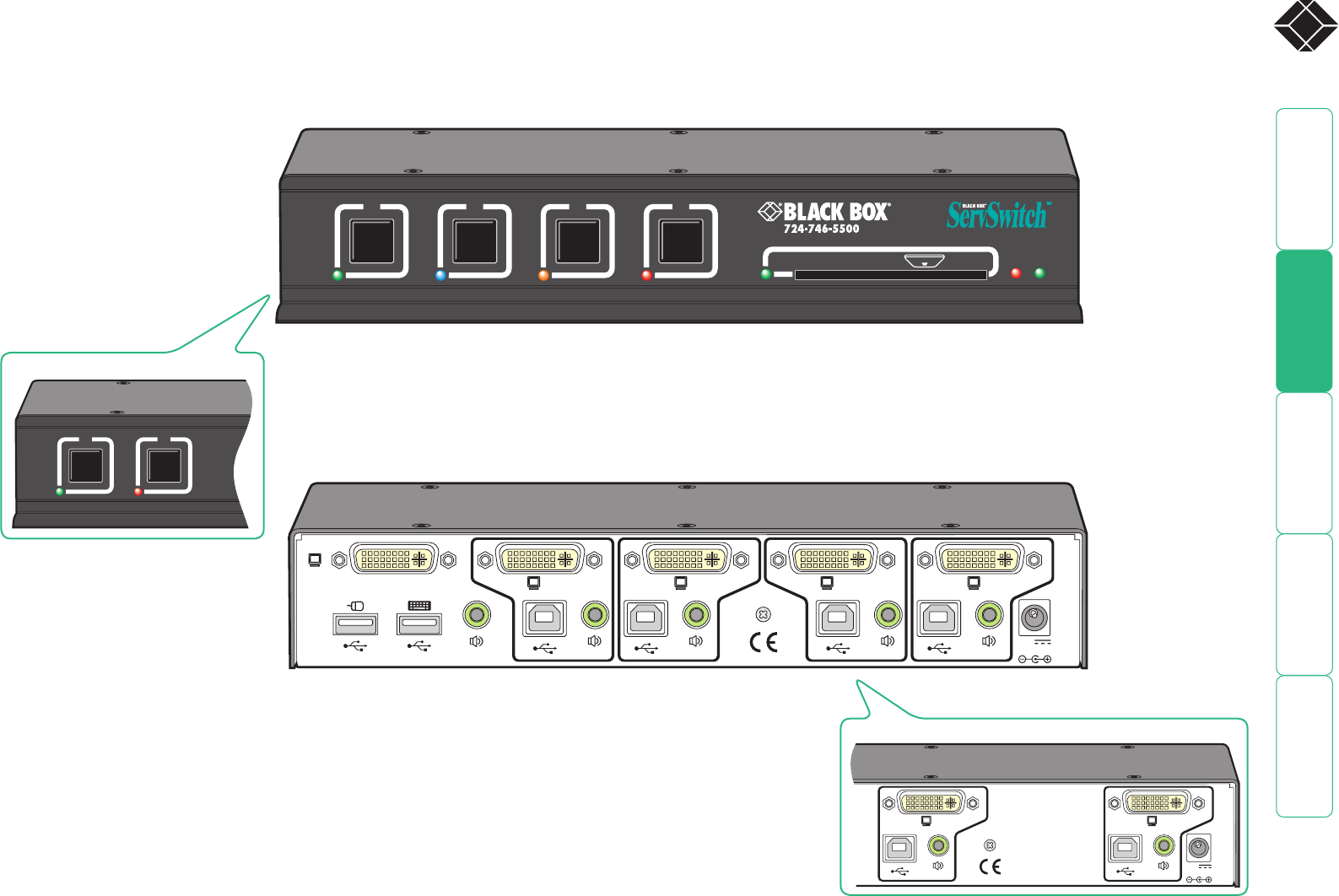

ServSwitch Secure and Secure PLUS - features
The ServSwitch Secure and Secure PLUS models are all housed in an electromagnetically shielded robust casing
that measures just [w x d x h] 9.25” x 5.9” x 1.73” (235mm x 150mm x 44mm) - the height is 1U within a 19”
rack. All channel switching is achieved solely using the front panel buttons which are clearly indicated, as are the
rear panel connections.
Switching is controlled solely by the clearly labeled
front panel buttons
Each selected channel is represented by an individually
colored indicator to provide additional visual feedback.
Optional smart card reader
The four port Secure PLUS model
includes a smart card reader for use
with user authentication schemes.
Clear error indication
Any unexpected
operation (such
as an attempt to
select two channels
simultaneously) will be
signalled by the ERR
indicator, accompanied
by complete isolation of
all channels.
Secure and shielded casing
The casing is shielded to
reduce electromagnetic
emissions to an absolute
minimum, access apertures
are minimised and vital access
screws are tamper-proofed.
Clear and simple connections
All connections are clearly marked to
avoid any ambiguity. Full dual link DVI/I
video connections are provided and USB
connections are used throughout for
keyboard and mouse links.
5V
2.0A
I
NDOOR
US
E O
NL
Y
2 1
1 2
2 port version
2 port version
