Chapter 5: Connection and Installation
5. Connection and Installation
RS-232
control
PDP
HDTV
LCD or Monitor
NTSC or PAL TV
DVHS, DVD
AC Adapter

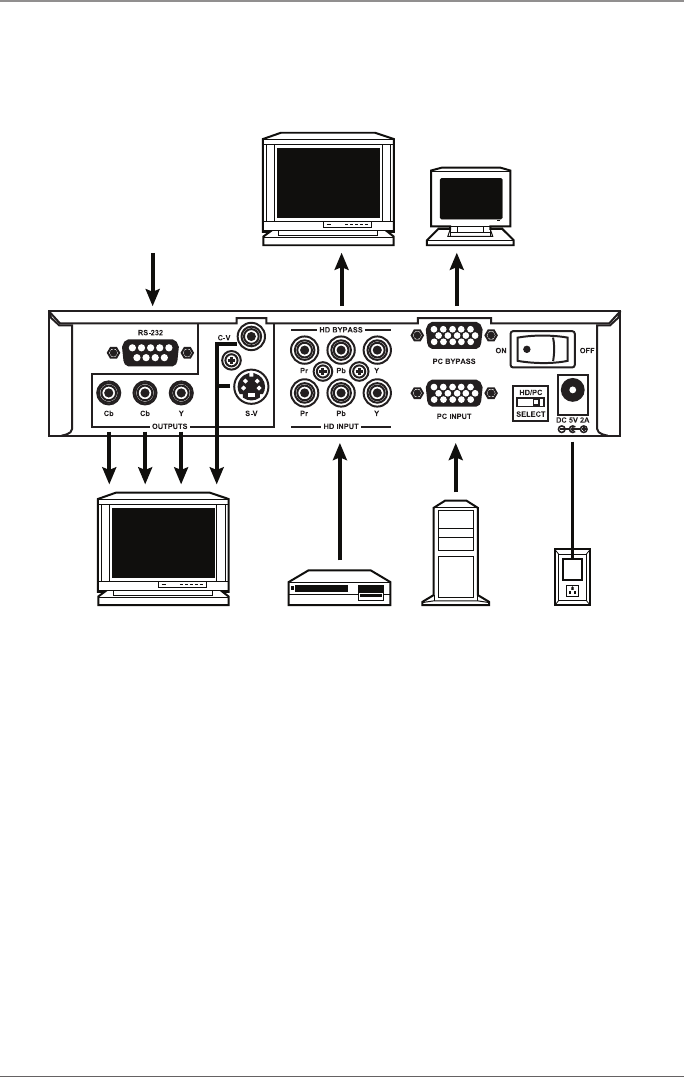

Figure 5-1. Typical application.
Table 5-1 shows the connection between the Multi-Format VideoScan Converter
and remote controller with RS-232 modem cable.
