INSTALLATION
MANUAL

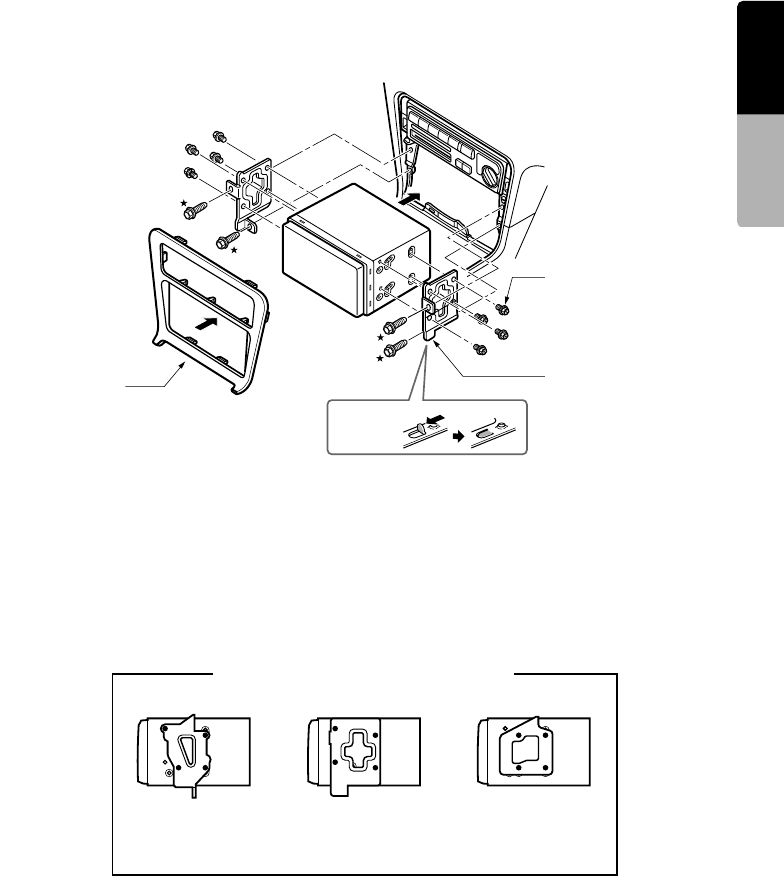

Installing the Main Unit in a TOYOTA Vehicle
Install by using parts attached to the vehicle. (Screws marked ★ are attached to the vehicle.)
Vehicles other than NISSAN and TOYOTA
In some cases the centre panel may require modification. (Trimming, filing, etc.)
●Removing the Main Unit
When the main unit is to be removed, disassemble it in the reverse of the order in “INSTALLING THE
MAIN UNIT” (see page 74).
Note:
*2: Some panel openings are too small for the unit
depending on the vehicle type and model. In
such a case, trim the upper and lower sides of the
panel frame by about 0.5 to 1.5 mm so the unit
can be inserted smoothly.
*3: If a hook on the installation bracket interferes
with the unit, bend and flatten it with a nipper or
similar tool.
* 3
Figure 7
Main Unit
8-Hexagonal screw
(M5 × 8)
Mounting bracket
(1 pair for the left
and right sides)
Centre Panel
(
* 2)
Example 1 Example 3Example 2
Affix the screws to the ● marks.
Typical Mounting Brackets
