XI Stand Assemble Instruction Manual
-18-
Pict.-9 Pict.-10
Pict.-11 Pict.-12
Pict.-13 Pict.-14 Pict.-15
Pict.-8
Pict.-7Pict.-5
Pict.-6
Pict.-1 Pict.-2 Pict.-3
Pict.-4

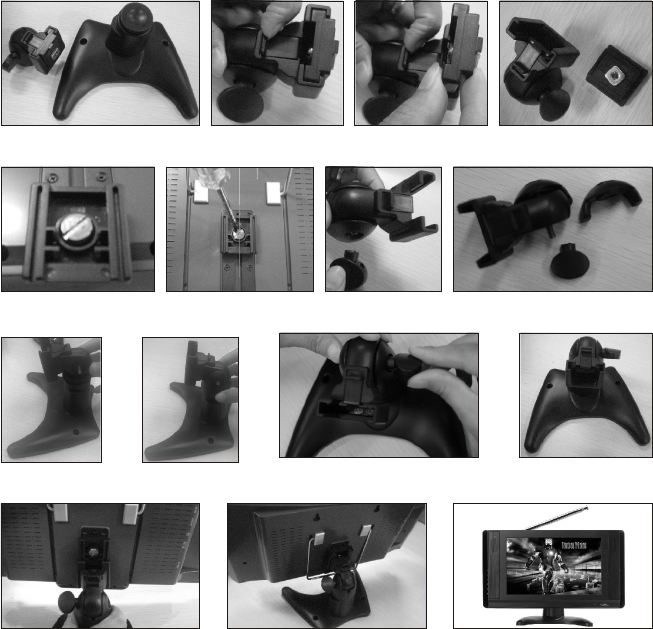

Step one: Pick up the stand accessory from the package as Pict.-1.
Step two: Take out the rectangle patch from the stand haead as Pict.-2,
Pict.-3 & Pict.-4.
Step three: Loose the screw of rectangle patch, and then locked it on the
back of the Unit. as Pict.-5 & Pict.-6.
Step four: Loose the screw and open the stand head as Pict.-7 & Pict.-8.
Step five: Lock the 2 piece stand hand while they combine together with
stand in middle as Pict. -9 & Pict.-10.
Step six: Firm the screw while adapting the angle as Pict. -11 & Pict.-12.
Step seven: Lock the stand into the unit as Pict. -13 & Pict.-14.
Step eight: Completed As Pict.-15.
