CONNECTIONS & SETUP CONNECTIONS & SETUP
1. Connect the video outputs (Y, PB, PR) of the DVD to the
YpbPr jacks on the set
2. Connect the audio outputs of the DVD to the Audio Input (L/R)
jacks on the set.
3. Turn on the DVD player, insert a DVD.
4. Select YPbPr source
with using the SOURCE/ button on the remote control.
5. Refer to the DVD player's manual for operating instructions.
YPbPr CONNECTION
When connecting with a component cable
1. Connect the AV jacks between TV and external equipment. Match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
2. Select AV source with using the SOURCE/ button on the remote control.
3. Operate the corresponding external equipment. Refer to
external equipment
operating guide.

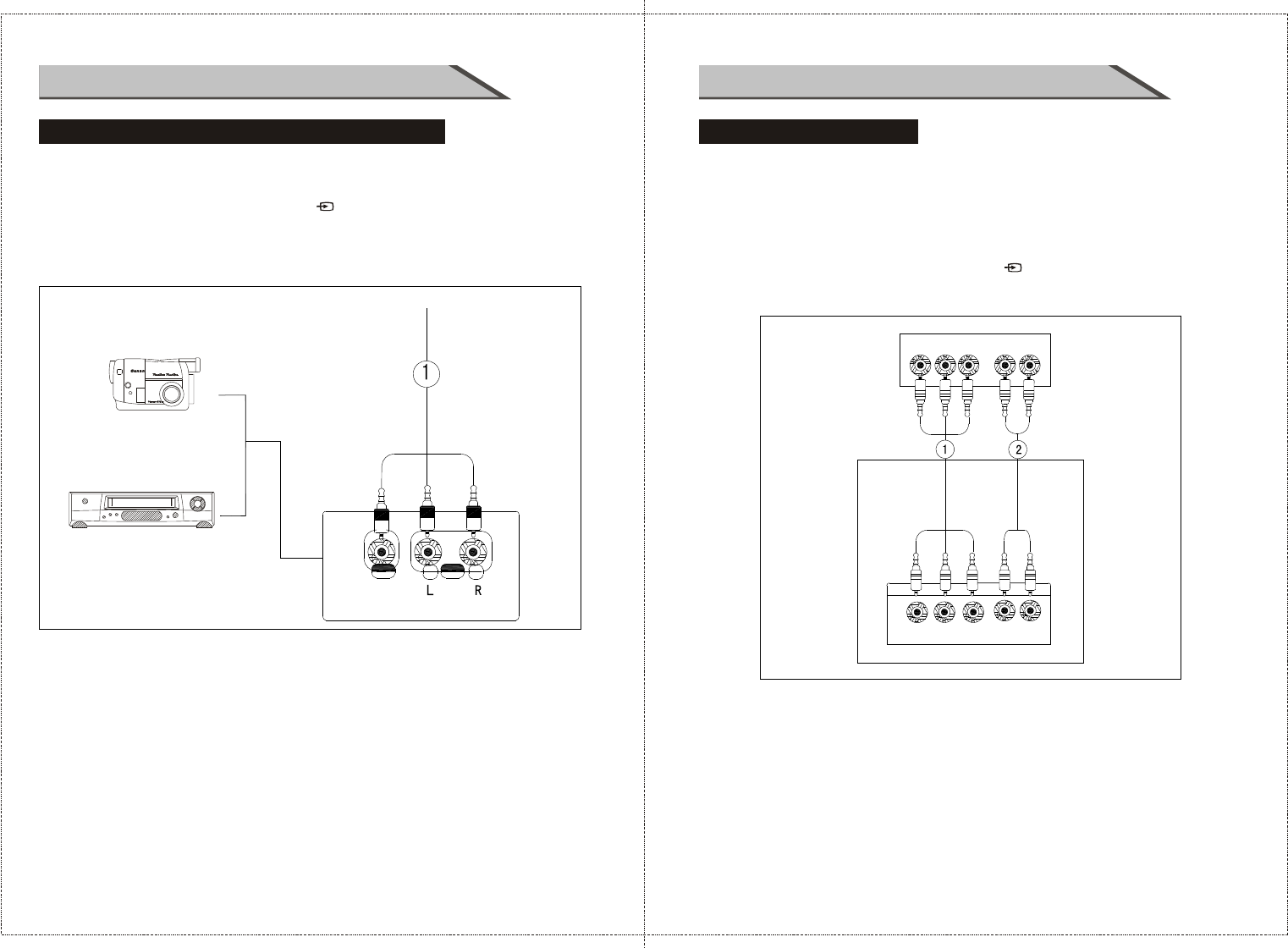

EXTERNAL EQUIPMENT CONNECTIONS
Camcorder
Video Game Set
PHILIPS
PHILIPS
DRIVE
DRIVE
TURBO
TURBO
AV
DVD
Y
Pb
Pr
L
R
Y=GREEN, Pb=BLUE, Pr=RED
