CONNECTIONS & SETUPCONNECTIONS & SETUP

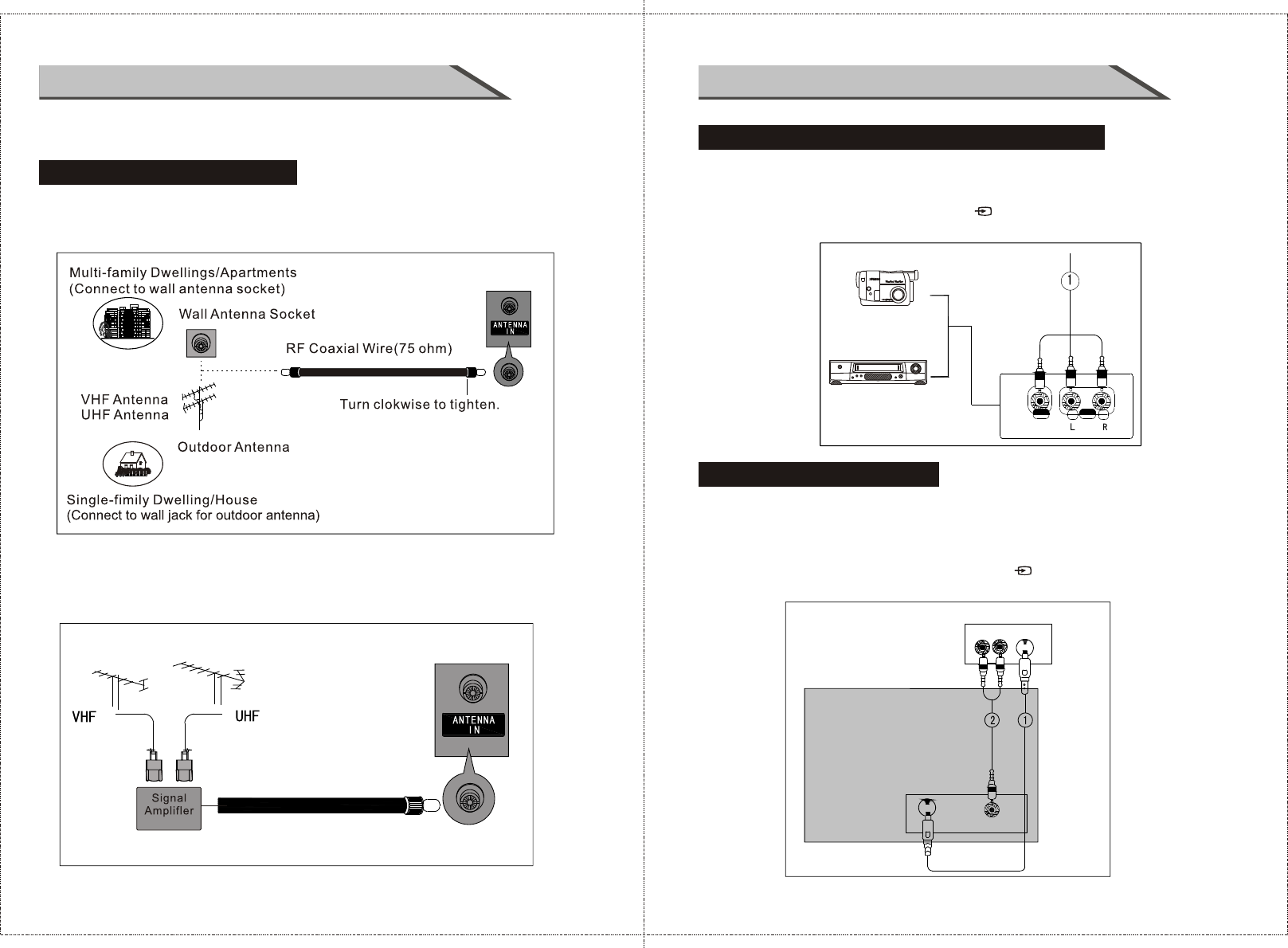

ANTENNA CONNECTION
For optimum picture quality, adjust antenna direction.
An antenna cable and converter are not supplied.
To prevent the equipment damage, never plug in any power cords until
you have finished connecting all equipment.
In poor signal areas, to get better picture quality, install a signal amplifier
to the antenna as shown below.
If signal needs to be split for two TVs, use an antenna signal splitter for connection.
S-VIDEO CONNECTION
1. Connect the S-VIDEO output of the DVD to the S-VIDEO input on the set.
2. Connect the audio outputs of the DVD to the Audio Input (L/R) jacks on the set.
3. Turn on the DVD player, insert a DVD
4. Select S-VIDEO source with using the SOURCE/ button on the remote control.
5. Refer to the DVD player's manual for operating instructions
When connecting with a S-Video cable (cable not included)
DVD
1. Connect the AV jacks between TV and external equipment. Match the jack colors
(Video = yellow, Audio Left = white, and Audio Right = red).
2. Select AV source with using the SOURCE/ button on the remote control.
3. Operate the corresponding external equipment. Refer to external equipment
operating guide.
EXTERNAL EQUIPMENT CONNECTIONS
Video Game Set
PHI LIPSPHI LIPS
DRIV EDRIV E
TURB OTURB O
Camcorder
AV
