INSTRUCTION
CONTROLS
INSTRUCTION
8

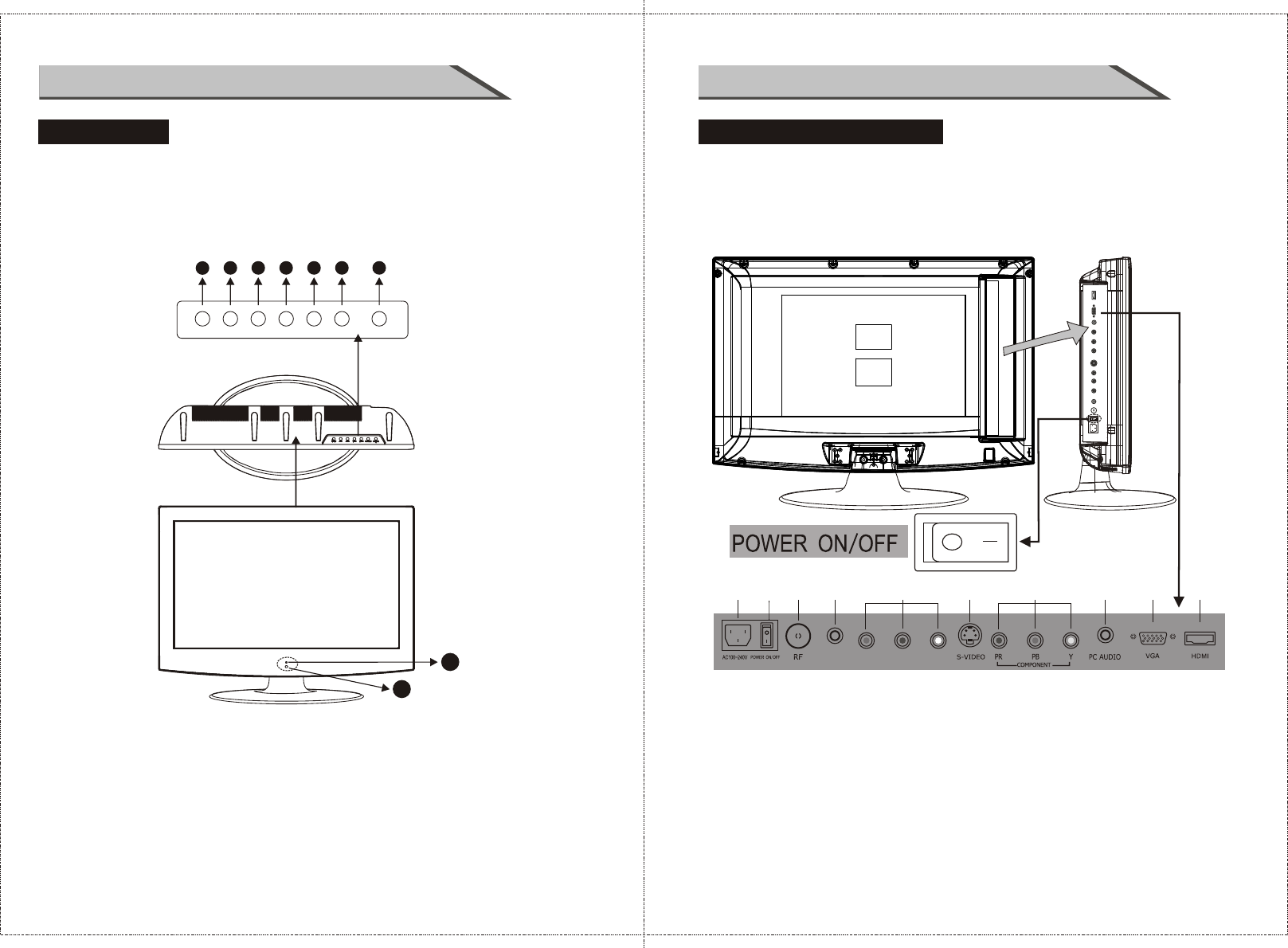

Back Connection Panel
CONNECTION OPTION
This is the back panel LCD TV
■ This is a simplified representation of a back panel.
Here shown may be somewhat different from your TV.
3
4
5
6 7 9
10
8
R L AV
EARPHONE
This manual explains the features available on the model of 23.6 inch LCD TV.
Front Panel Controls
■ This is a simplified representation of a front panel. Here shown may be somewhat
different from your TV.
(1): (MENU) Press this button to display the OSD menu.
When the OSD menu is on, press this button to exit the menu.
(2): (CH-) Press the button to down the channel.
(3): (CH+) Press the button to up the channel.
(4): (VOL-) Press Volume- to decrease the volume.
(5): (VOL+) Press Volume+ to increase the volume.
(6): (SOURCE) Press this button to select AV source or TV source.
(7): (Power) Press this button to standby mode.
(8): Indicator.
(9): Remote control sensor window.
POWER
SOURCE
MENU
CH+CH-
VOL+VOL-
2
1
3
64
7
5
9
8
1 2
(01) AC100~240V: Connect the power cord with AC 100~240V to this input.
(02) Power ON/OFF: Power turn on/off.
(03) RF: Antenna Input (75 ohm).
(04) EARPHONE output: Connect to headphone output.
(05) AV Video Input: Connect composite video output of your AV device and Connect
the audio output of your AV devices to R and L.
(06) S-VIDEO Input: Connect S-video output of your AV device.
(07) YPBPR Video Input: Connect the component image output of your AV devices here.
Then Connect audio output of your AV devices to R and L.
(08) PC AUDIO Input: Connect PC audio input.
(09) PC VGA Input: Connect PC VGA signal output.
(10) HDMI Input: Connect HDMI signal.
