CONNECTIONS
13
Connections
Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic ll/Pro Logic
Connect the Left and Right AUDIO OUT jacks on the DVD Recorder+VCR to the left and right audio in jacks on
your amplifier, receiver, or stereo system, using the supplied audio cables (A).
Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped
with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)
1
Connect the DVD Recorder+VCR’s DIGITAL AUDIO OUT jack (COAXIAL X) to the corresponding in jack on
your amplifier. Use an optional digital coaxial audio cable.
2
You will need to activate the DVD Recorder+VCR’s digital output; see ‘AUDIO Settings‘ on page 23.
Digital Multi-Channel Sound?
A digital multi-channel connection provides the best sound quality. For this you need a multi-channel
audio/video receiver that supports one or more of the audio formats supported by your DVD Recorder+VCR
(MPEG 2, Dolby Digital, and DTS). Check the receiver manual and the logos on the front of the receiver.
Connecting an Amplifier/Receiver
• Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is
selected.
• If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce
a strong, distorted sound or no sound at all.
• 5.1 channel digital surround sound via the digital connection can only be obtained if your receiver is equipped
with a digital multi-channel decoder.
• To see the audio format of the current DVD on the on-screen display, press [AUDIO].
The DVD Recorder+VCR does not perform internal (2- channel) decoding of DTS sound tracks. To enjoy DTS multi-
channel surround, you must connect the DVD Recorder+VCR to a DTS compatible receiver via one of the DVD
Recorder+VCR’s digital audio outputs.

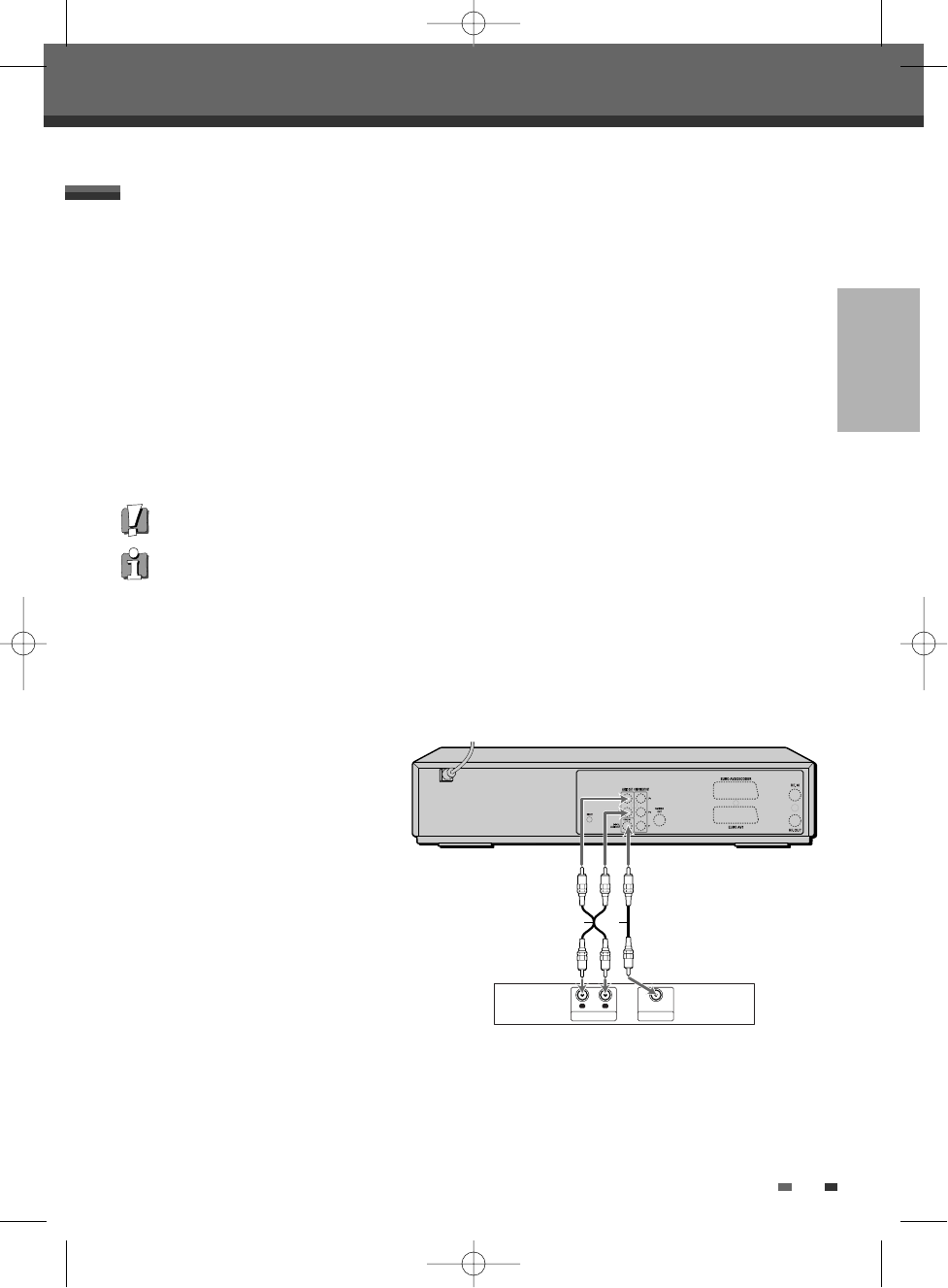

Amplifier (Receiver)
R
L
AUDIO INPUT DIGITAL INPUT
COAXIAL
A X
Rear of DVD Recorder+VCR
