Dynex DX-19L150A11 Flat Panel Television User Manual



6
TV componentsDX-15L150A11/DX19L150A11/DX-22L150A11

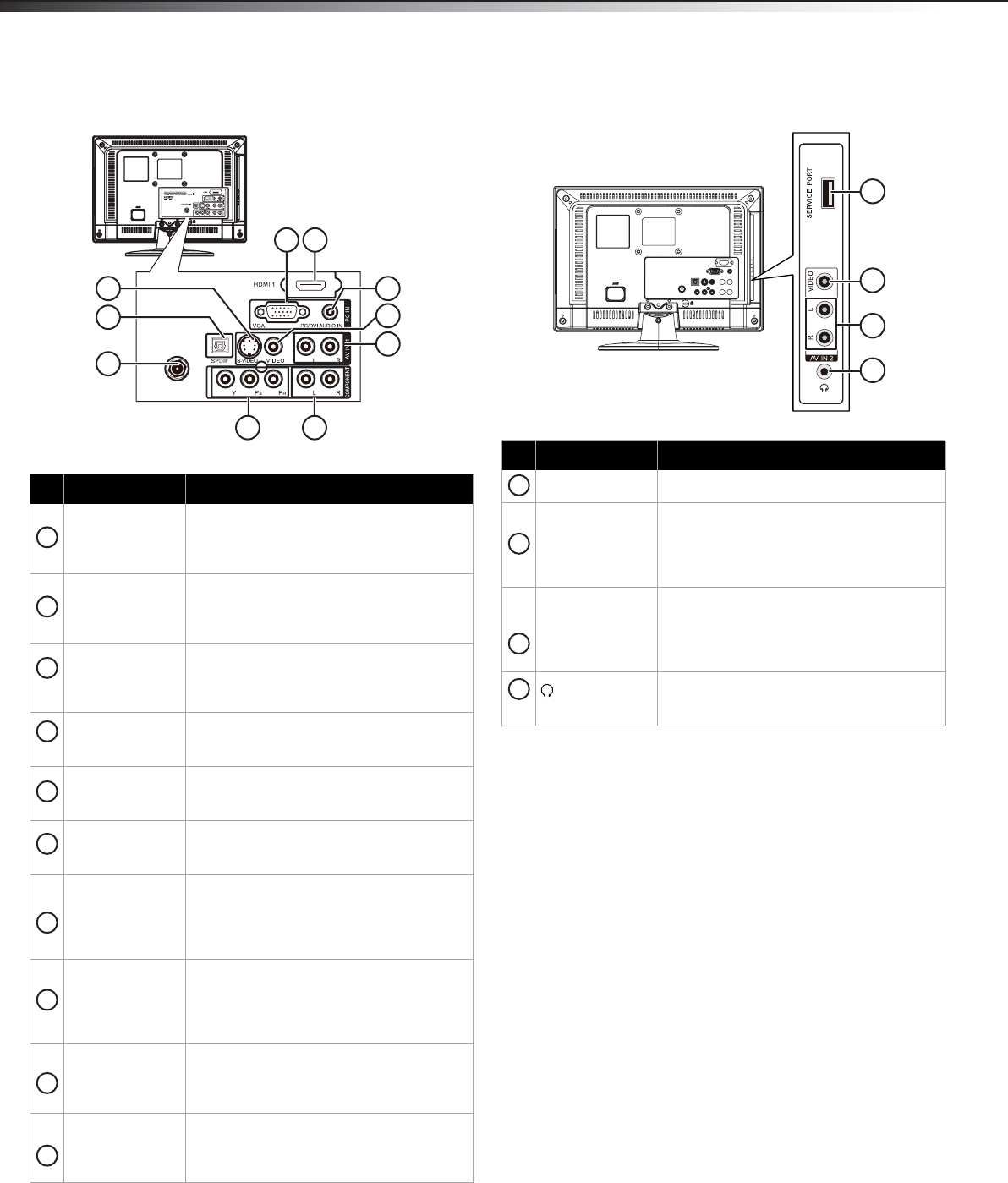

Back Side
Item Name Description
AV IN 1 S-VIDEO
jack
Connect an S-Video device to this jack. For
more information, see “Connecting a VCR”
on page 10 for an example of the
connection.
SPDIF
Connect a digital optical cable to this
connector, then to a digital sound system.
For more information, see “Connecting
using digital audio cable” on page 12.
ANT/CABLE IN
jack
Connect an antenna or cable TV to this jack.
For more information, see “Connecting an
antenna, cable TV, or satellite TV box via
coax” on page 10.
PC IN VGA
connection
Connect a computer to this connector. For
more information, see “Connecting a
computer” on page 11.
HDMI jack
Connect an HDMI device to this jack. For
more information, see “Connecting a
computer” on page 11.
PC/DVI AUDIO IN
jack
Connect the audio output from a computer
to this jack. For more information, see
“Connecting a computer” on page 11.
AV1 IN VIDEO
jack
Connect the video from a standard AV
device, such as a camcorder or game
console, to this jack. For more information,
see “Connecting a camcorder or game
console” on page 11.
AV1 IN AUDIO L
and R jacks
Connect the audio from a standard AV
device, such as a camcorder or game
console, to these jacks. For more
information, see “Connecting a camcorder
or game console” on page 11.
COMPONENT
AUDIO IN jacks
Connect the audio from a component video
device to these jacks. For more information,
see “Connecting a component video device”
on page 9.
COMPONENT
Y/Pb/Pr jacks
Connect the video from a component video
device to these jacks. For more information,
see “Connecting a component video device”
on page 9.
1
2
3
10
6
7
8
4 5
9
ANT/CABLE IN
1
2
3
7
4
8
5
9
6
10
Item Name Description
SERVICE PORT
For software updates only. Do not use.
AV2 IN VIDEO
jack
Connect the video from a standard AV
device, such as a camcorder or game
console, to this jack. For more information,
see “Connecting a camcorder or game
console” on page 11.
AV2 IN AUDIO L
and R jacks
Connect the audio from a standard AV
device, such as a camcorder or game
console, to these jacks. For more
information, see “Connecting a camcorder
or game console” on page 11.
(headphone)
jack
Plug headphones into this jack. For more
information, see “Connecting headphones”
on page 12.
1
2
4
3
1
2
4
3
