Dynex DX-32L152A11 Flat Panel Television User Manual



Making connections
9
DX-32L152A11

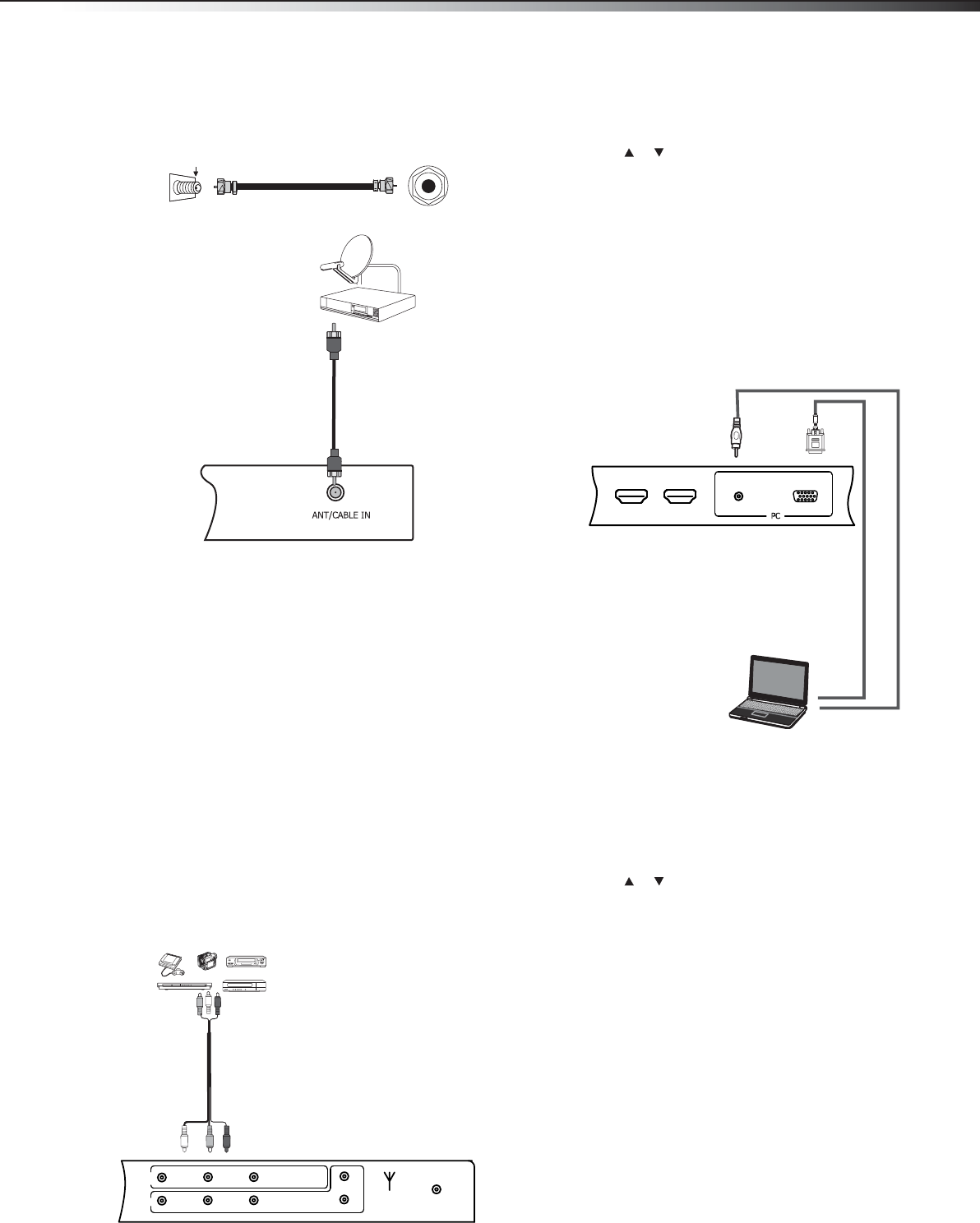

To connect an antenna, cable TV, or satellite TV box:
Connect one end of a 75-Ohm, coaxial cable to the ANT/CABLE
IN jack on the back of the TV, then connect the other end of the
cable to the antenna or cable TV wall jack.
Notes:
We recommend using a 75-Ohm, coaxial cable to reduce interference
and noise that may be caused by radio wave transmissions.
Do not bundle the coaxial cable with the power cord or any other
cables.
If you are using an antenna and reception is not good, contact a
service technician to adjust the antenna.
Connecting a VCR, camcorder, or game
console
Note: If the VCR, camcorder, or game console has component jacks
(better), or an HDMI jack (best), connect them using the best available
connection.
To connect a VCR, camcorder, or game console:
1 Make sure that your TV’s power cord is unplugged and the VCR,
camcorder, or game console is turned off.
2 Connect one end of a standard AV cable (not included) into the
AV VIDEO jack on the back of the TV, then connect the other end
of the cable to the AV OUT VIDEO jack on the external device.
3 Connect the audio connectors of the AV cable (the red and white
connectors) to the AV OUT AUDIO jacks of the external device,
then connect them to the AV L and R jacks on the back of your TV.
To play the external AV device:
1 Turn on the TV, then press INPUT. The INPUT SOURCE menu
opens.
2 Press or to select AV, then press ENTER.
Note: You can also press VIDEO once to select AV.
3 Turn on the device, then start playback on the device.
Connecting a computer
To connect a computer:
1 Make sure that your TV’s power cord is unplugged and the
computer is turned off.
2 Connect one end of a VGA cable (not included) to the VGA jack on
the back of the TV, then connect the other end of the cable to the
VGA jack on the computer.
3 Connect one end of an audio cable with a stereo mini-plug (not
included) to the PC/DVI AUDIO IN jack on the back of the TV,
then connect the other end of the cable to the AUDIO OUT jack
on the computer.
To play video from the computer:
1 Turn on the TV, then press INPUT. The INPUT SOURCE menu
opens.
2 Press or to select VGA, then press ENTER.
3 Turn on the computer, then adjust the computer display
properties as needed.
ANT/CABLE IN jack on
the back of the TV
Antenna, cable TV,
or satellite box
75-Ohm coaxial cable
ANT/CABLE IN jack on
the back of the TV
Home antenna terminal
(75 ohm)
COMP
AV
VIDEO L R
Y P
b Pr
L
R
ANT/CABLE IN DIGITAL
AUDIO OUT
VCR, camcorder, or game console
AV cable
Back of TV
Note: Cables are often
color-coded to connectors.
Connect yellow to yellow,
red to red, and white to
white.
HDMI2 HDMI 1
PC/DVI AUDIO IN VGA
Back of TV
Computer
VGA
cable
Audio cable
