CONNECTING PLASMA DISPLAY TO AUDIO SYSTEM
NOTE:
Cables shown here are not included with the plasma display.

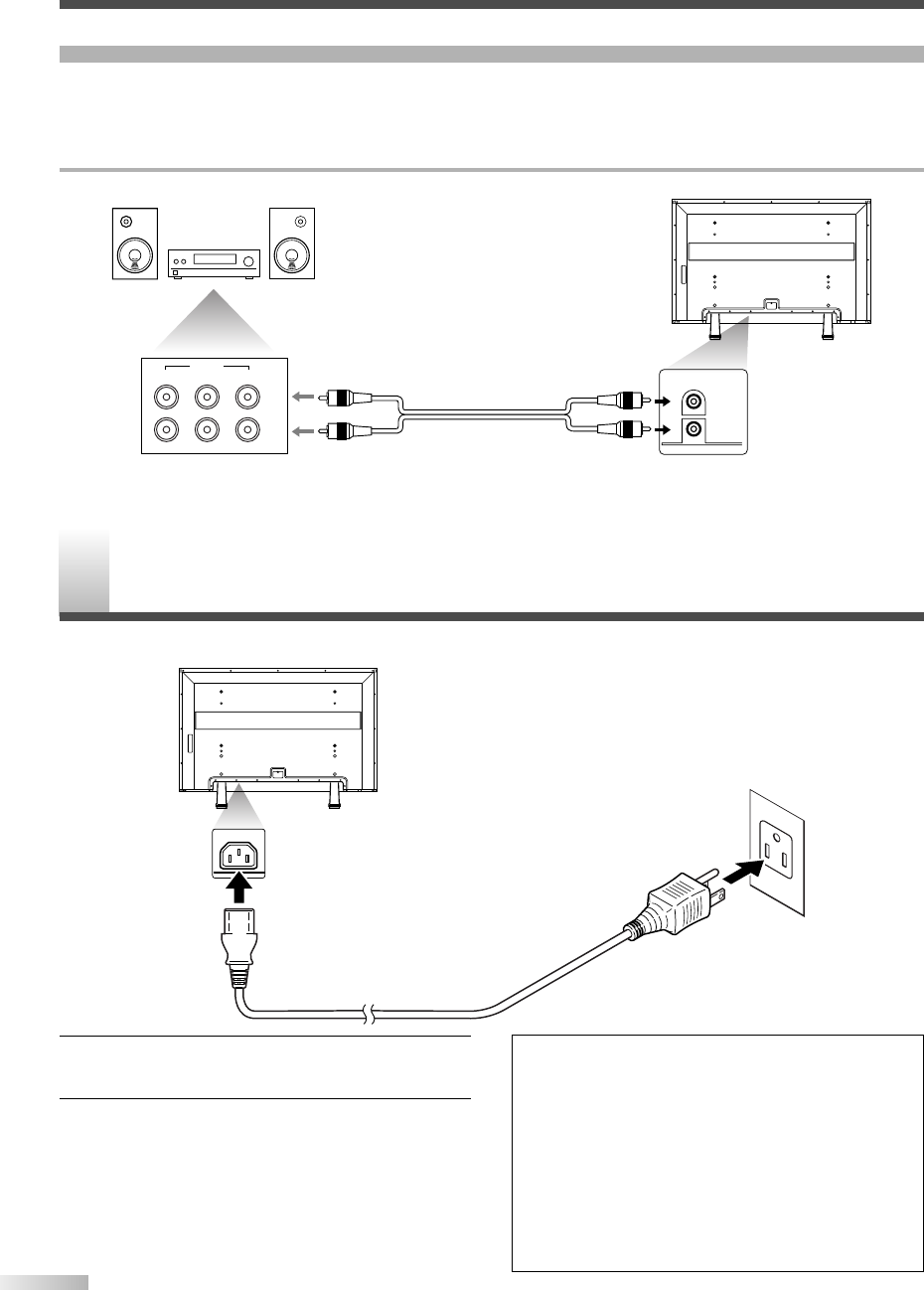

AUDIO Signal Connection
AUDIO
2×RCA
audio cables
R
L
TV
AUDIO IN
VIDEO AUX
(Example: Amplifier/Receiver)
Audio output
to L/R sockets
R
L
AUDIO OUT
EXTERNAL INPUT TERMINALS
Connect the AUDIO OUT from the plasma display to the AUDIO IN on the amplifier/receiver.
Connect the power cable to the plasma display after connecting the input terminals.
1
2
AC IN
1
Connect the power cable to the plasma display
first.
2
Connect the power cable to an AC outlet.
#
CAUTION
Do not connect the power cable to a power
supply outside the indicated voltage of the
plasma display (AC 120V). Connecting the
power cable to a power supply outside of this
range may result in fire or electrical shocks.
Always use the power cable included with the
plasma display. Do not use any other cable.
For safety, make sure to always connect the
power cable to a three pronged AC outlet.
C
ONNECTING THE POWER CABLE
