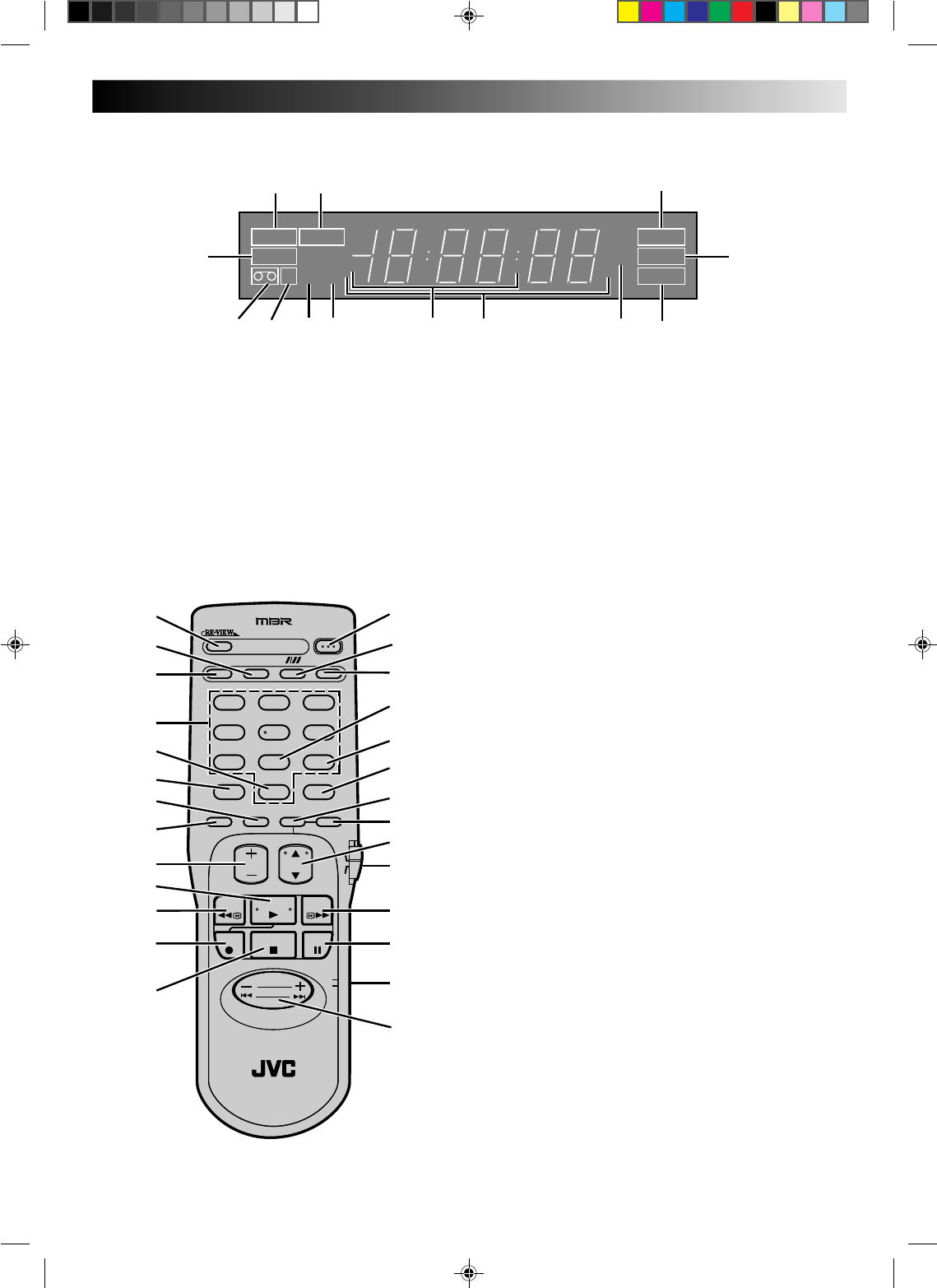

FRONT DISPLAY PANEL
1 Instant Timer Recording Indicator ( pg. 27)
2 Timer Mode Indicator ( pg. 29)
3 Recording Mode Indicator ( pg. 13)
4 Video Mode Indicator ( pg. 5)
5 “Cassette Loaded” Mark
6 Counter Memory Mark ( pg. 20)
7 Tape Speed Indicators ( pg. 13)
8 AM/PM Indicators ( pg. 5)
9 Clock Display ( pg. 5)
0 Channel Display [“AU” for AUX mode] ( pg. 36)
Counter Display ( pg. 20)
! Multichannel TV Sound Indicators ( pg. 26)
@ Pause Mode Indicator ( pg. 13)
# Play Mode Indicator ( pg. 12)
REMOTE CONTROL (Provided)
1 Instant REVIEW Button ( pg. 20)
2 DISPLAY Button ( pg. 20)
3 TV/VIDEO Button ( pg. 5)
4 NUMBER Buttons ( pg. 5)
5 “AUX” Mode Select Button ( pg. 36)
6 CANCEL Button ( pg. 32)
Counter [C.] RESET ( pg. 20)
Channel [CH.] SKIP Button ( pg. 8)
7 Counter [C.] MEMORY Button ( pg. 20)
ADD Button ( pg. 8)
8 SKIP SEARCH Button ( pg. 19)
9 Volume [VOL] +/– Buttons ( pg. 35)
0 PLAY Button ( pg. 12)
! Rewind [REW] Button ( pg. 12)
@ Record [REC] Button ( pg. 13)
# STOP Button ( pg. 12)
$ POWER ON/OFF Button ( pg. 5)
% Recording Speed [SP/EP] Button ( pg. 13)
^ ENTER Button ( pg. 13)
On-Screen Display [OSD] Button ( pg. 18)
& DAILY Timer Recording Button ( pg. 28)
* WEEKLY Timer Recording Button ( pg. 28)
( TIMER Button ( pg. 29)
) OK Button ( pg. 5)
q MENU Button ( pg. 5)
w Channel [CH]
5
Buttons ( pg. 5)
e TV/VCR Switch ( pg. 35)
r Fast-Forward [FF] Button ( pg. 12)
t PAUSE Button ( pg. 13)
y A/B Code Select Switch ( pg. 38)
